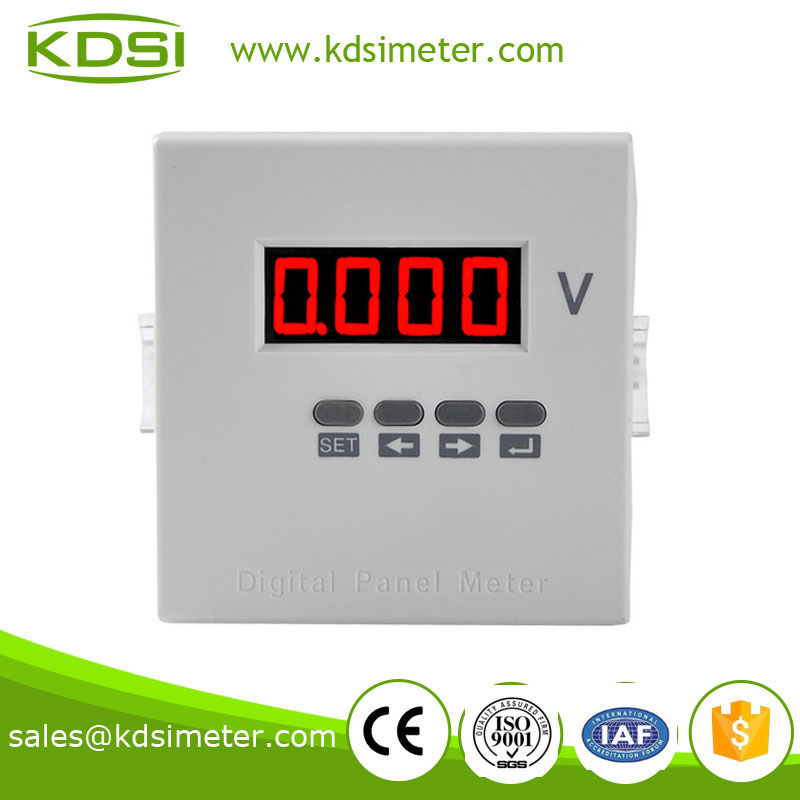

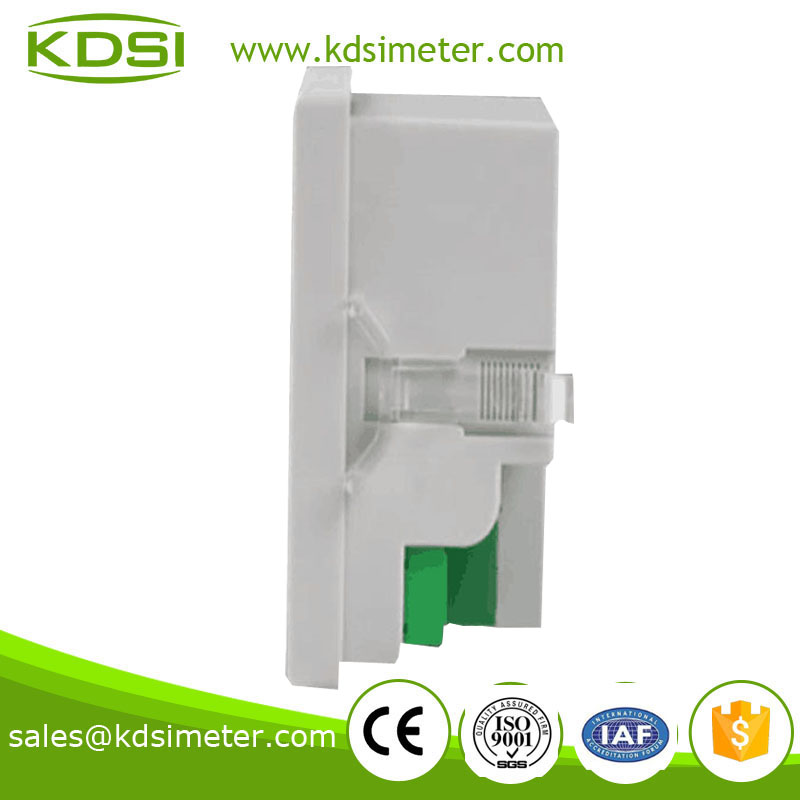

High precision digital panel voltmeter

High precision digital panel voltmeter
elegant appearance,digital readout

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM

High precision digital panel voltmeter

1.1Product Description

◆Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

◆Technical data

Technical parameters		Value
input	Normal value	Voltage :300V、500V，Current :1A、5A，(Or ordered by customer)
	Overload	Current：continual 1.2times，instaneous10times/1s； Voltage：continual1.2times，instaneous 2times/1s.
	Frequency	45～65Hz
Accuracy class		0.5
Display		LED display，range in：0～9999
Power supply	Voltage range	AC 220V
Power supply	Power consumption	<5VA
Insulation resistance		≥100MΩ
Isolation voltage		Between power supply/input/output 2kV/1min（rms）
MTBF		≥50000h
Environment	Temperature	Work：-10～55℃，Storage：-25～+70℃
	Humidity	≤93%RH，In the place without dew and corrosive gas
	Altitude	≤2000m

◆ Programming explain

There are three buttons in meters,such as " SET","←","→" 、" caozuomianban huiche.jpg

".
"←" ： Menu items on the move or incremental value. .
"→" : Menu item down or diminishing value .
"SET": Menu Editor or the value of bit shifted to the right (in the digital input mode) .
caozuomianban huiche.jpg

" "： Used for menu moving backward, the parameter is set back off and save your settings .

Note: “ SET ” :the value of bit shifted to the right, in the password input mode or CT 、PT value input mode

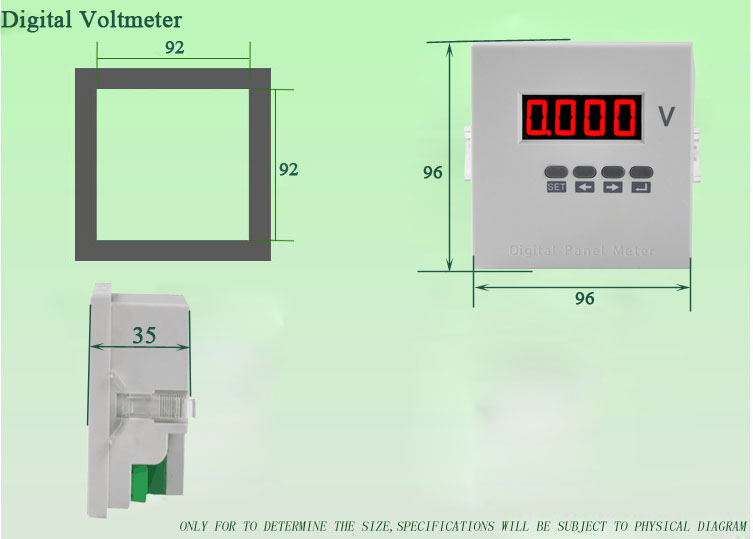

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Multi-purpose BE-96x48DV Bar DC Voltage Pressure Mini Digital Panel Meter

Mini type BE-48AV AC220V single phase digital ac voltmeter

China Supplier 72x72mm BE-72 AV ac led single phase digital voltmeter

Classical 96*96 single phase BE-96 AV automotive digital voltmeter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
