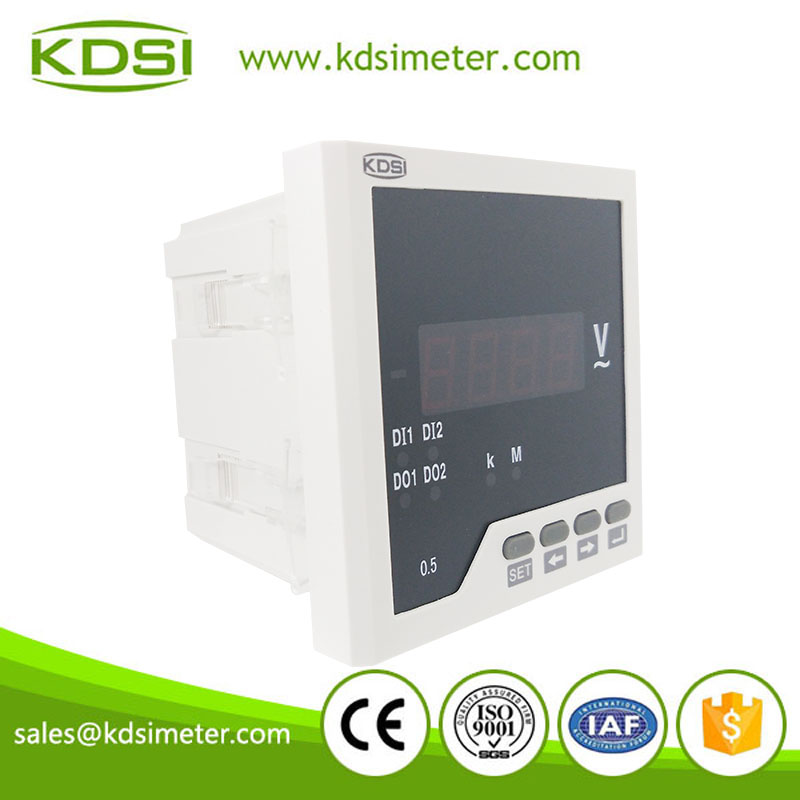

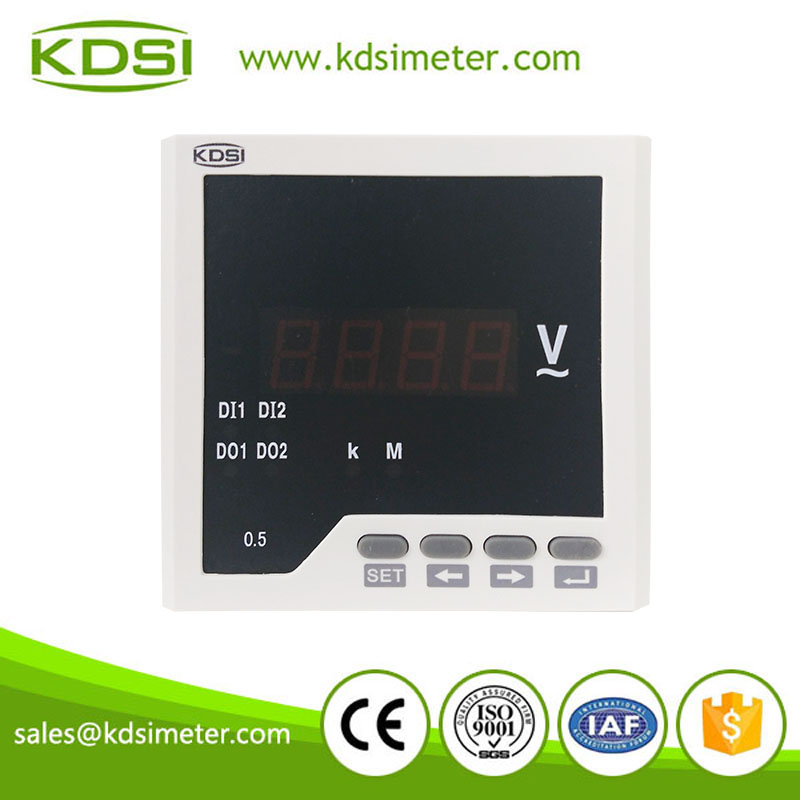

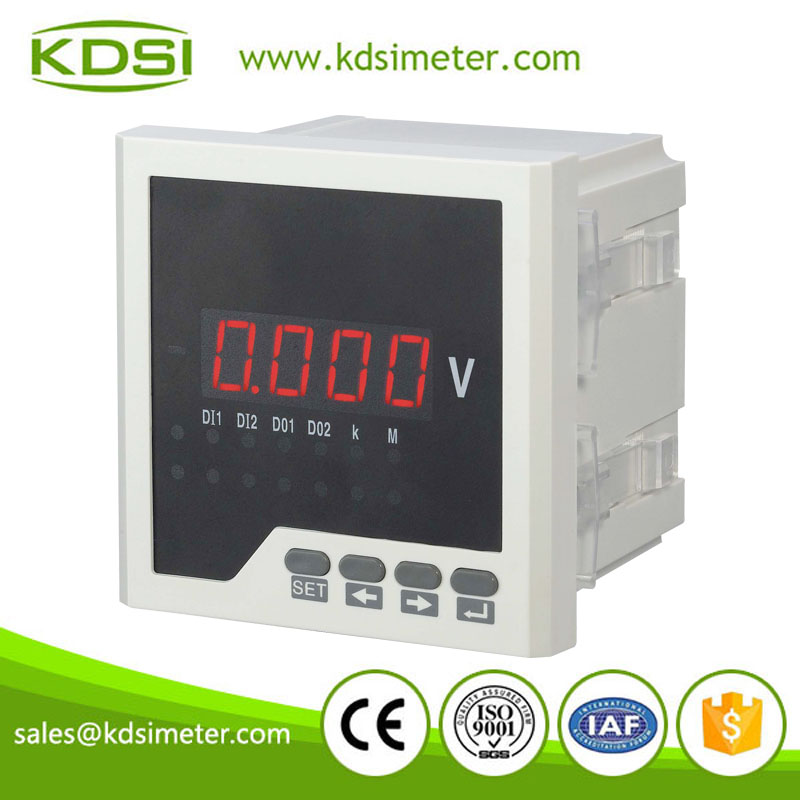

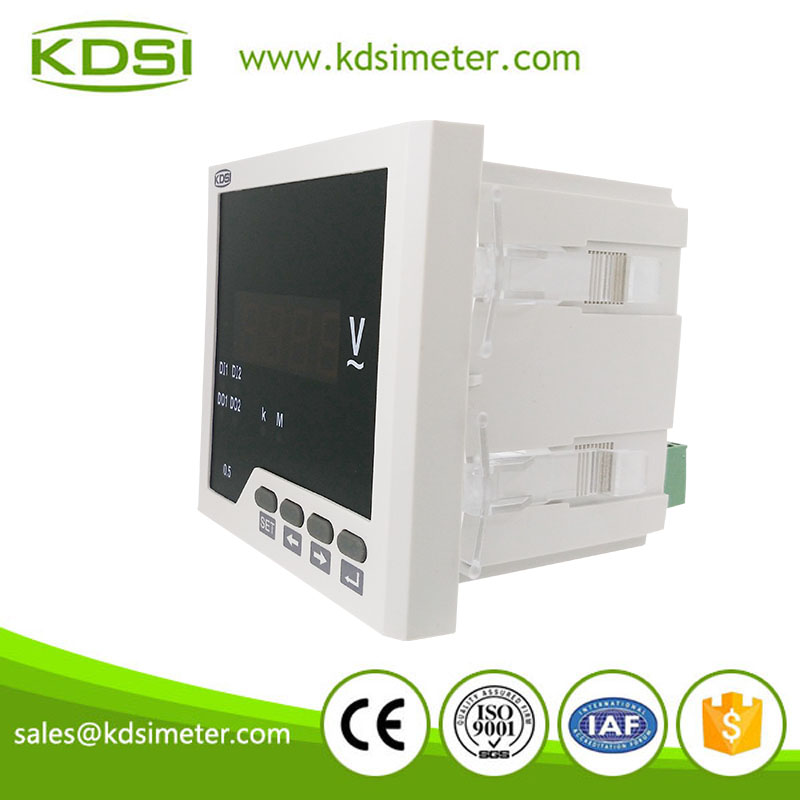

Classical 96*96 single phase BE-96 AV automotive digital voltmeter

Share to:

Classical 96*96 single phase BE-96 AV automotive digital voltmeter

Quantity:



Inquire Add to Basket

Model:
BE-96 AV
Brand:
KDSI Also can do OEM
Model Number::
BE-96 AV
Display Type::
Single-row LED dispaly
Measuring Range::
0-9999
Accuracy Class::
0.5
Supply Voltage::
AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,customiz
Operating Temperature::
-10℃~+55℃
Dimensions::
96*96mm
Rated voltage::
AC 57.7V~380 V, DC2V~600V

**Classical 96*96 single phase BE-96 AV automotive digital voltmeter

1.1Product Description**

Products Details
Performance Characteristics
1.High precision measurement measurement of single phase AC voltage or DC voltage
2.Provide the digital tube display, local data query
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes to meet the different requirements of the cabinet body electric circuit

Signal input

♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power <1VA/ phase
♦Impedance >300KΩ
♦The frequency: 45~65Hz or DC

Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
◆Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

◆Technical data

Technical parameters		Value
input	Normal value	Voltage :300V、500V，Current :1A、5A，(Or ordered by customer)
	Overload	Current：continual 1.2times，instaneous10times/1s； Voltage：continual1.2times，instaneous 2times/1s.
	Frequency	45～65Hz
Accuracy class		0.5
Display		LED display，range in：0～9999
Power supply	Voltage range	AC 220V
Power supply	Power consumption	<5VA
Insulation resistance		≥100MΩ
Isolation voltage		Between power supply/input/output 2kV/1min（rms）
MTBF		≥50000h
Environment	Temperature	Work：-10～55℃，Storage：-25～+70℃
	Humidity	≤93%RH，In the place without dew and corrosive gas
	Altitude	≤2000m

◆ Programming explain

There are three buttons in meters,such as " SET","←","→" 、" caozuomianban huiche.jpg

".
"←" ： Menu items on the move or incremental value. .
"→" : Menu item down or diminishing value .
"SET": Menu Editor or the value of bit shifted to the right (in the digital input mode) .
caozuomianban huiche.jpg

" "： Used for menu moving backward, the parameter is set back off and save your settings .

Note: “ SET ” :the value of bit shifted to the right, in the password input mode or CT 、PT value input mode

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Multi-purpose BE-96x48DV Bar DC Voltage Pressure Mini Digital Panel Meter

Mini type BE-48AV AC220V single phase digital ac voltmeter

China Supplier 72x72mm BE-72 AV ac led single phase digital voltmeter

High precision digital panel voltmeter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
