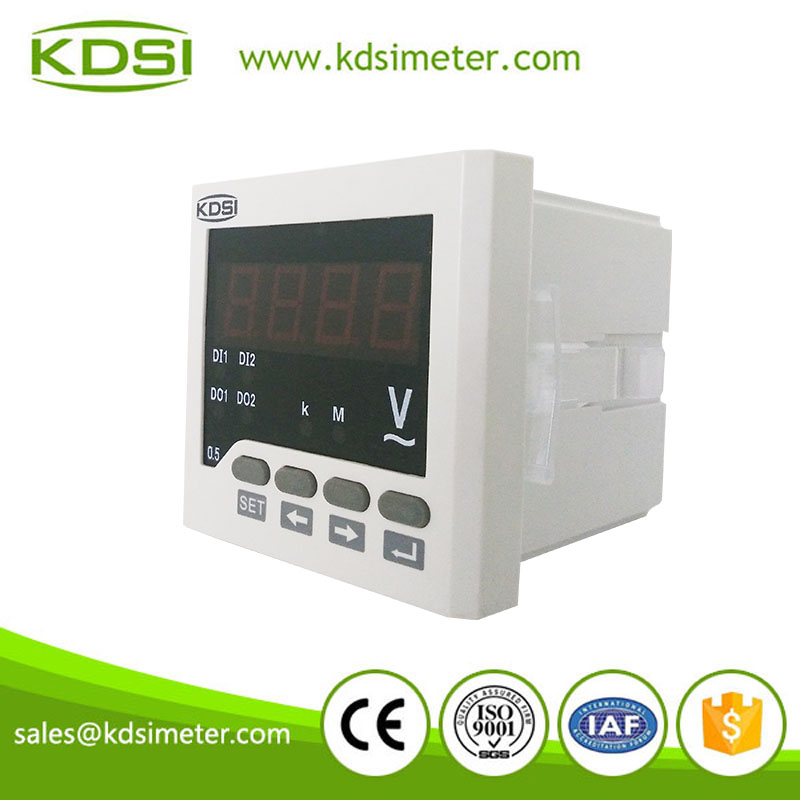

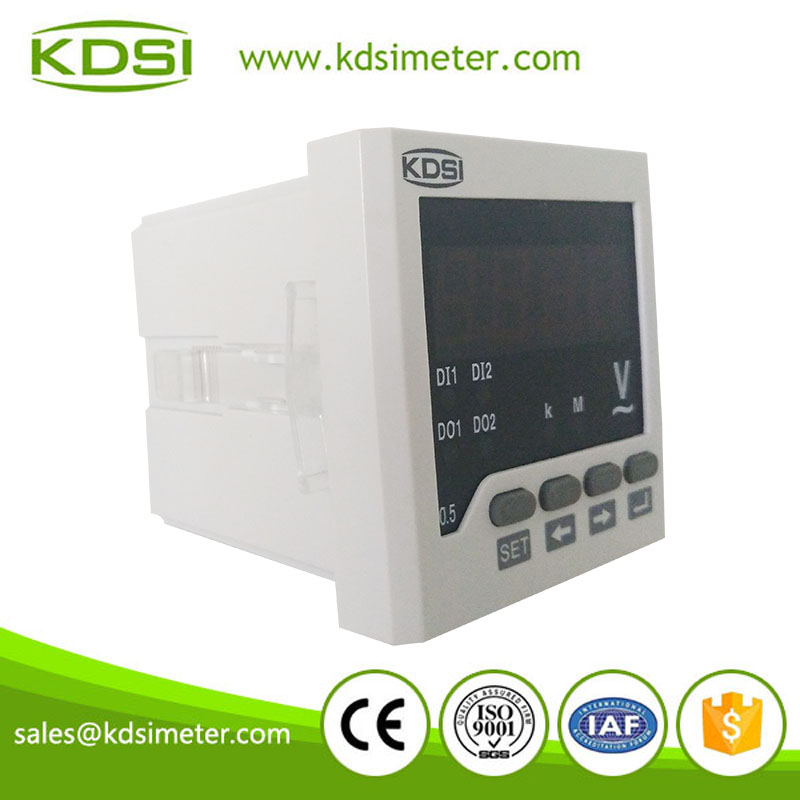

1.High precision measurement measurement of single phase AC voltage or DC voltage
2.Provide the digital tube display, local data query
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes to meet the different requirements of the cabinet body electric circuit
♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power <1VA/ phase
♦The frequency: 45~65Hz or DC
♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .
◆ Programming explain There are three buttons in meters,such as " SET","←","→" 、" ". "←" ： Menu items on the move or incremental value. . "→" : Menu item down or diminishing value . "SET": Menu Editor or the value of bit shifted to the right (in the digital input mode) . " "： Used for menu moving backward, the parameter is set back off and save your settings .
| Technical parameters || Value |
| input || Normal value || Voltage :300V、500V，Current :1A、5A，(Or ordered by customer) |
| Overload || Current：continual 1.2times，instaneous10times/1s； |
| Frequency || 45～65Hz |
| Accuracy class || 0.5 |
| Display || LED display，range in：0～9999 |
| Power |
| Voltage range || AC 220V |
| Power consumption || <5VA |
| Insulation resistance || ≥100MΩ |
| Isolation voltage || Between power supply/input/output 2kV/1min（rms） |
| MTBF || ≥50000h |
| Environment || Temperature || Work：-10～55℃，Storage：-25～+70℃ |
| Humidity || ≤93%RH，In the place without dew and corrosive gas |
| Altitude || ≤2000m |
Note: “ SET ” :the value of bit shifted to the right, in the password input mode or CT 、PT value input mode
