Smart digital BE-72 3AA AC200-1A three phase digital ac ammeter current amp meter

Smart digital BE-72 3AA AC200-1A three phase digital ac ammeter current amp meter
Availability:
Quantity:
  • BE-72 3AA

  • KDSI Also can do OEM

Smart digital BE-72 3AA AC200-1A three phase digital ac ammeter current amp meter

1.1Product Description

Specification
BE-72 3AA Model BE-72 3AA
Measure range Current(I)
Measure voltage AC 0-500 V
Rated current AC 0~5 A(can add CT)
Expand function RS485,Modbus,switch input/output,analog output
Frame size 72x72mm
Cutout size 68x68mm
Connection mode three-phase four wire,three-phase three wire
Power supply AC/DC 80~270V,AC380V,
AC100V



Product Description
 BE-72 3AA-0 Overview
BE-3AA series High precision measurement of three phase AC current.
Provide the digital tube display, local data query.
Digital LED display ,can set the ratio of current.
Features
1.Communication interface 1 way RS-485  communication, Modbus-RTU protocol
2.Baud rate: 1200~9600bps, the default 2400bps
3.Switch input support 4 stem node input.
4.The switch output support 3 relay output,  capacity: AC 250V/5A, DC 30V/5A
5.Transmission output support 3 analog output: 0/4~20mA or 0~5/10V
BE-72 3AA the back


Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

Technical data



Technical parameters Value
input Normal value Voltage :300V500VCurrent :1A5A(Or ordered by customer)
Overload Currentcontinual 1.2timesinstaneous10times/1s
Voltagecontinual1.2timesinstaneous 2times/1s.
Frequency 4565Hz
Accuracy class 0.5
Display LED displayrange in0~9999
Power
supply
Voltage range AC 220V
Power consumption <5VA
Insulation resistance 100MΩ
Isolation voltage Between power supply/input/output   2kV/1minrms
MTBF 50000h
Environment Temperature Work-10~55,Storage:-25~+70℃
Humidity 93%RHIn the place without dew and corrosive gas
Altitude 2000m

Programming explain

There are three buttons in meters,such as  " SET","←","→" 、" caozuomianban huiche.jpgcaozuomianban huiche.jpg ".
"←" :  Menu items on the move or incremental value. .
"→" :   Menu item down or diminishing value .
"SET":   Menu Editor or the value of bit shifted to the right (in the digital input mode) .
   caozuomianban huiche.jpg "   ": Used for menu moving backward, the parameter is set back off and save your settings .

Note: SET ” :the value of bit shifted to the right, in the password input mode or CT PT value input mode

1.2Dimensioned drawing

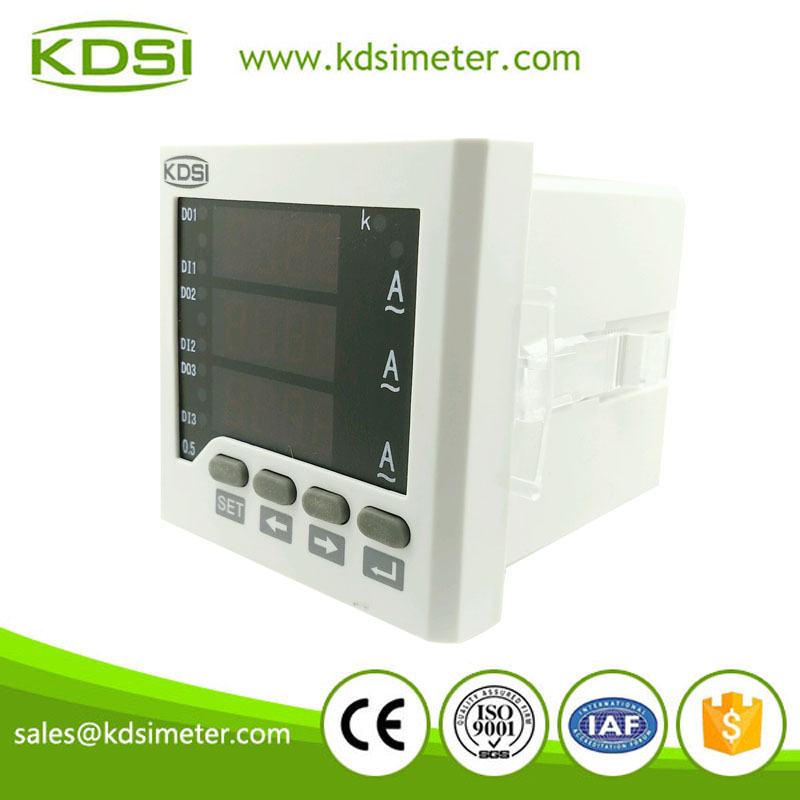

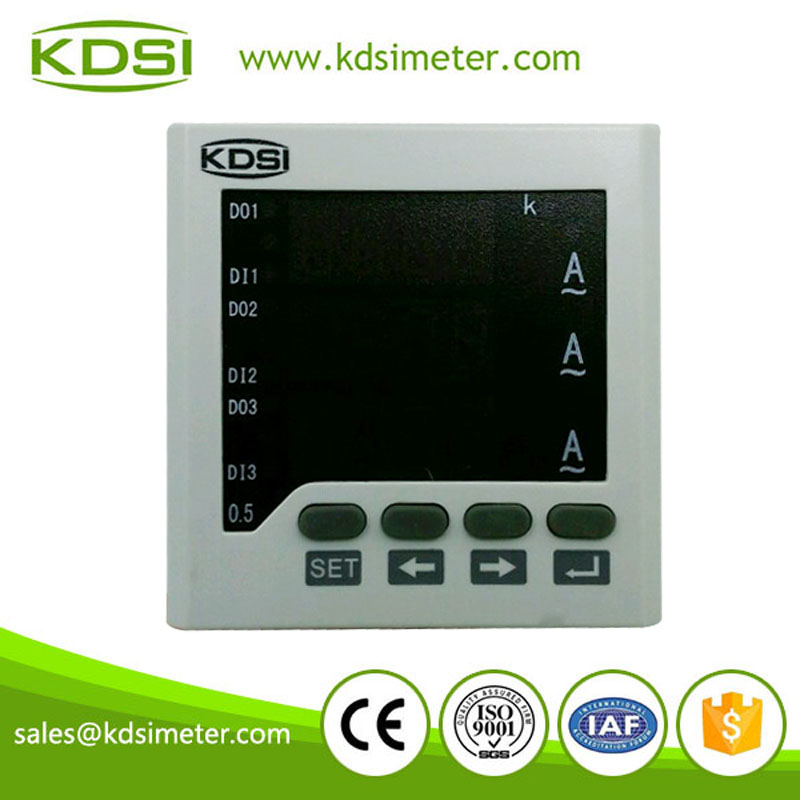

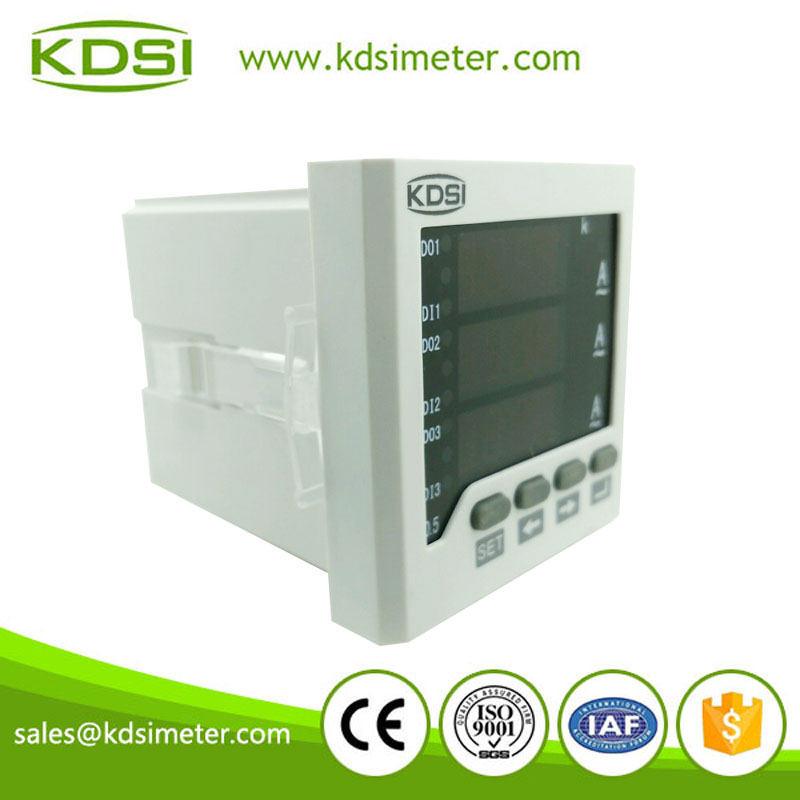

BE-72 3AA BE-72 3AA-2 BE-72 3AA-1
BE-72 dimensioned drawing

1.3Product Application


1.4 Product Packaging
