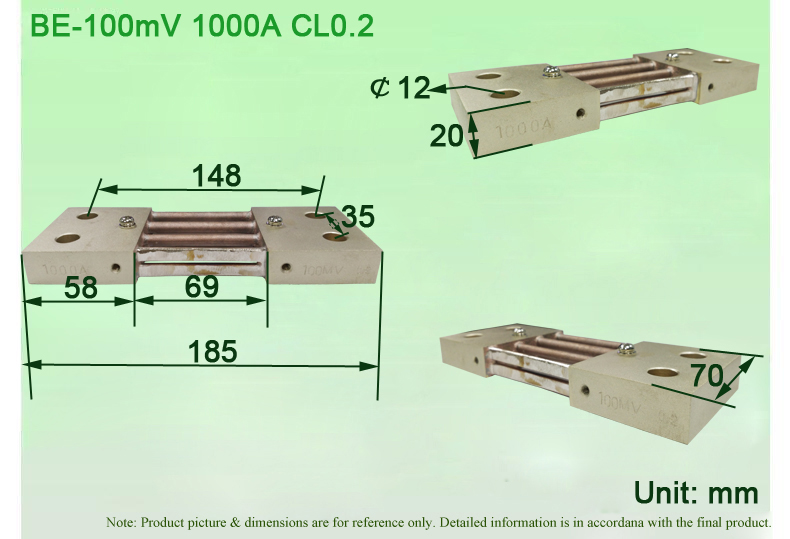

BE-100mV
KDSI Also can do OEM
◆ DC SHUNTS | |

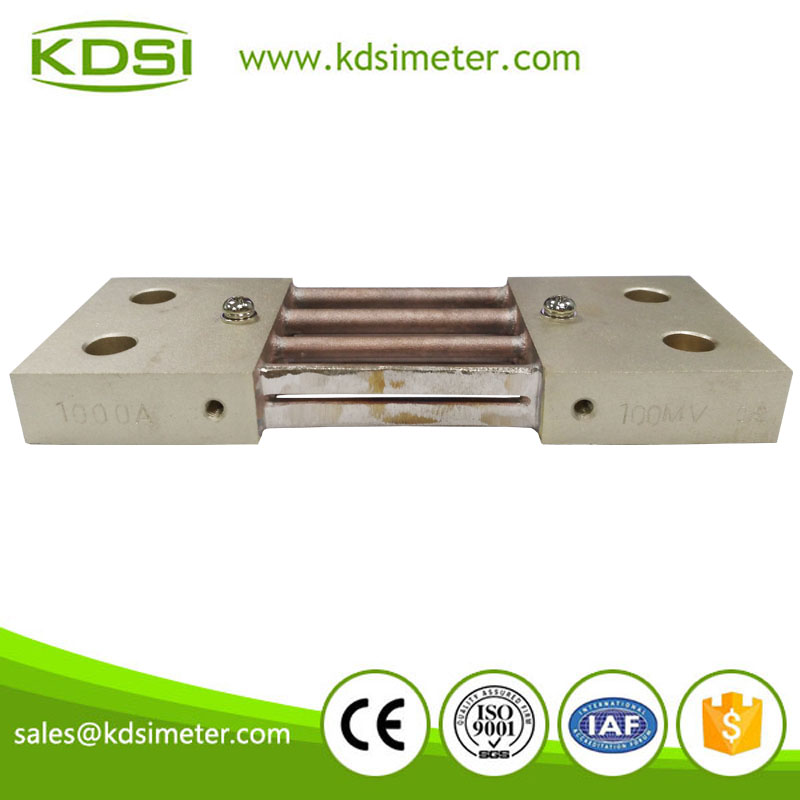

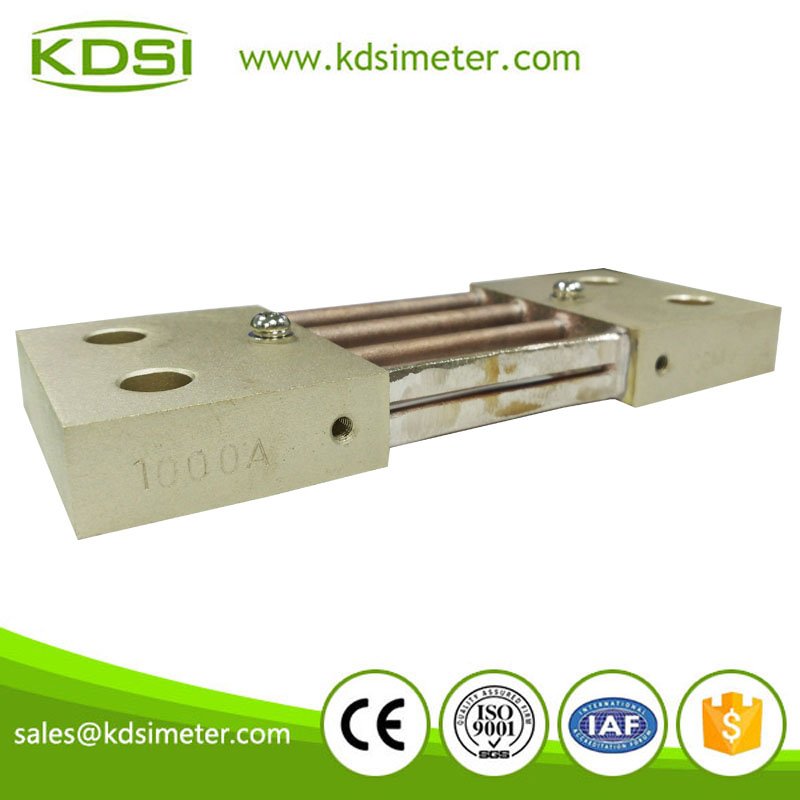

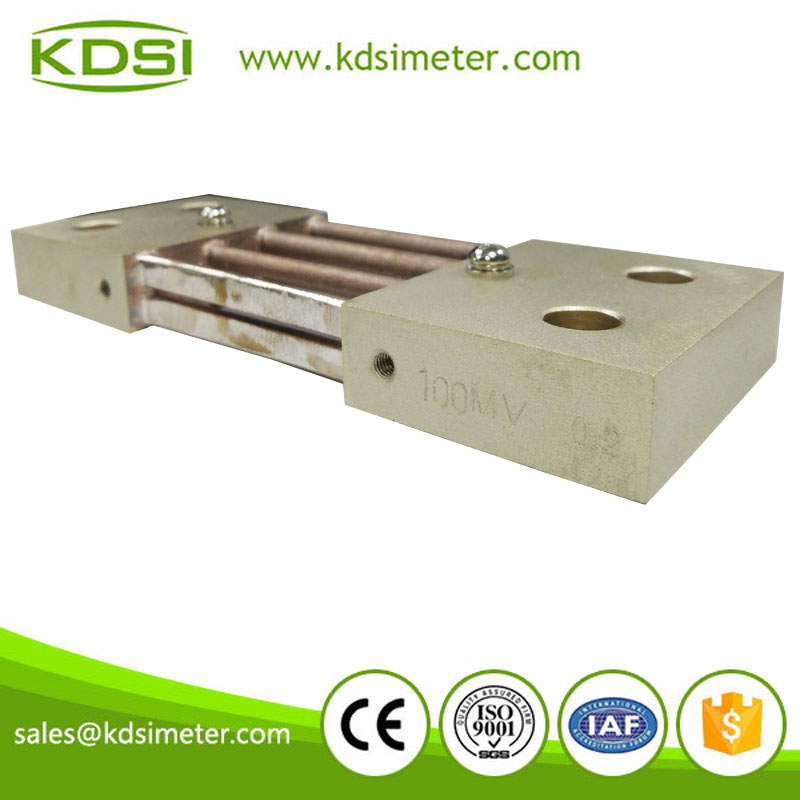

DC shunts are available for currents between 10Amps and 10000Amps, offering reliability and calss0.5,accuracy making them suitable for a large range of industrial applications. Four ranges are available that develop either 50mV, 60mV,75mV,100mV at full load current. The millivolt signal can then be safely taken to suitably scaled moving coil indicating instrument or other monitoring device. The shunts are brass ended manganin and all shunts up to the 200 Amp rating are mounted on an insulted base ensuring electrical insulation. All non-insulated shunts may need protection against accidental contact. The shunts should be mounted vertically with the blade faces vertical to achieve maximum heat dissipation. | |
◆ Product Features | ◆ Output |
Brass ended manganin shunts 10 Amp to 10000 Amp 50mV or 60mV output 75mV or 100mV output Accuracy class0.5 Insulated base on shunts up to 200A | 0-50mV 0-60mV 0-75mV 0-100mV |
◆ Specification | ◆ Overload |
Reference Standard : BS89,IEC51 | 1.2 In continuous 10 In for 5 seconds(10A to 500A) 5 In for 5 seconds(600A to 2000A) 2 In for 5 seconds(2500A to 5000A) |
◆ Accuracy | ◆ Operating Temperature |
Class 0.5(+0.5% max.error) | -20°C to 60°C |
◆ Current Rating, In | ◆ Connections |
0-10A to 0-10000A (see range data table) | |
Our Company ________________________________________________________________________________
KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.
Six Advantages_______________________________________________________________________________
1. BRAND 20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.
2. QUALITY All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.
3. APPLICATIONS Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.
4. LEAD TIME Short lead time, only approximately three days for normal specifications.
5. PRICE Cost-effective ,with the lowest price compared with those in the same quality.
6. SERVICES Our products can be tailor-made for our customers, with the lifelong service available free of charge
Application_____________________________________________________________________________________
◆ DC SHUNTS | |
DC shunts are available for currents between 10Amps and 10000Amps, offering reliability and calss0.5,accuracy making them suitable for a large range of industrial applications. Four ranges are available that develop either 50mV, 60mV,75mV,100mV at full load current. The millivolt signal can then be safely taken to suitably scaled moving coil indicating instrument or other monitoring device. The shunts are brass ended manganin and all shunts up to the 200 Amp rating are mounted on an insulted base ensuring electrical insulation. All non-insulated shunts may need protection against accidental contact. The shunts should be mounted vertically with the blade faces vertical to achieve maximum heat dissipation. | |
◆ Product Features | ◆ Output |
Brass ended manganin shunts 10 Amp to 10000 Amp 50mV or 60mV output 75mV or 100mV output Accuracy class0.5 Insulated base on shunts up to 200A | 0-50mV 0-60mV 0-75mV 0-100mV |
◆ Specification | ◆ Overload |
Reference Standard : BS89,IEC51 | 1.2 In continuous 10 In for 5 seconds(10A to 500A) 5 In for 5 seconds(600A to 2000A) 2 In for 5 seconds(2500A to 5000A) |
◆ Accuracy | ◆ Operating Temperature |
Class 0.5(+0.5% max.error) | -20°C to 60°C |
◆ Current Rating, In | ◆ Connections |
0-10A to 0-10000A (see range data table) | |
Our Company ________________________________________________________________________________
KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.
Six Advantages_______________________________________________________________________________
1. BRAND 20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.
2. QUALITY All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.
3. APPLICATIONS Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.
4. LEAD TIME Short lead time, only approximately three days for normal specifications.
5. PRICE Cost-effective ,with the lowest price compared with those in the same quality.
6. SERVICES Our products can be tailor-made for our customers, with the lifelong service available free of charge
Application_____________________________________________________________________________________
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
