High quality professional Shunt 100MV 1500A current shunt resistor

High quality professional Shunt 100MV 1500A current shunt resistor
DC shunts are available for currents between 10Amps and 5000Amps, offering reliability and calss0.5,accuracy making them suitable for a large range of industrial applications.
Four ranges are available that develop either 50mV, 60mV,75mV,100mV at full load current.

Quantity:
  • BE-100mV
  • KDSI Also can do OEM

High quality professional Shunt 100MV 1500A current shunt resistor
1.1Product Description

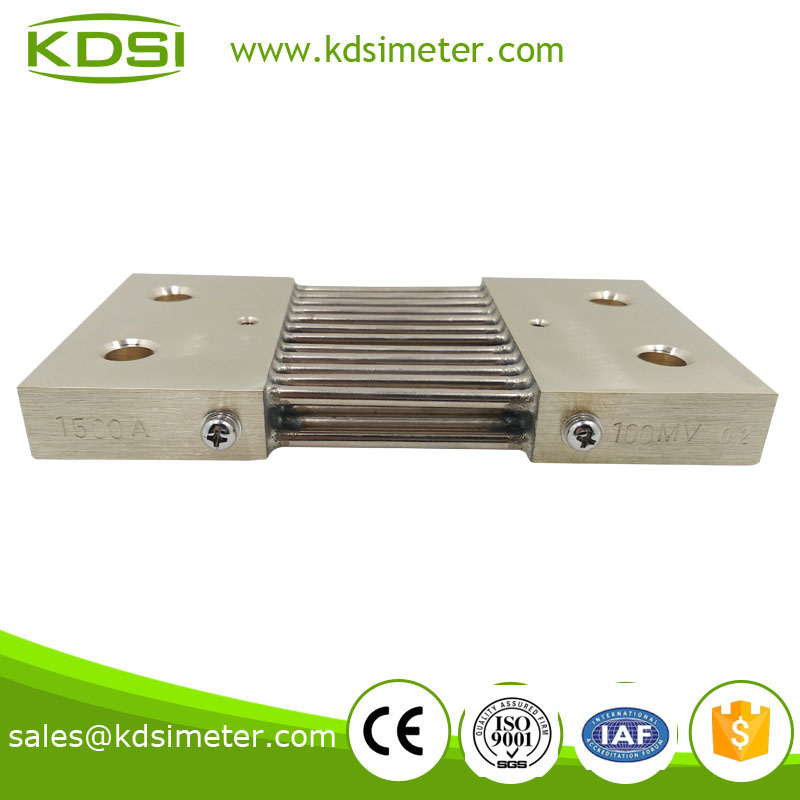

 Shunt 100MV 1500A







BE-100mV 1500A

◆ DC SHUNTS
DC shunts are available for currents between 10Amps and 5000Amps, offering reliability and calss0.5accuracy making them suitable for a large range of industrial applications.
Four ranges are available that develop either 50mV, 60mV,75mV,100mV at full load current. The millivolt signal can then be safely taken to suitably scaled moving coil indicating instrument or other monitoring device.
The shunts are brass ended manganin and all shunts up to the 200 Amp rating are mounted on an insulted base ensuring electrical insulation. All non-insulated shunts may need protection against accidental contact. The shunts should be mounted vertically with the blade faces vertical to achieve maximum heat dissipation.
◆ Product Features  Output
Brass ended manganin shunts
10 Amp to 5000 Amp
50mV or 60mV output
75mV or 100mV output
Accuracy class0.5
Insulated base on shunts up to 200A
0-50mV
0-60mV
0-75mV
0-100mV
◆ Specification ◆ Overload
Reference Standard :
BS89,IEC51
1.2 In continuous
10 In for 5 seconds(10A to 500A)
5 In for 5 seconds(600A to 2000A)
2 In for 5 seconds(2500A to 5000A)
◆  Accuracy   ◆  Operating Temperature
Class 0.5(+0.5% max.error)    -20°C      to 60°C
◆  Current Rating, In ◆  Connections
0-10A to 0-5000A
(see range data table)
SHUNT Connections.jpg

1.2 Outline and Fixing Dimensions:(mm) 10-150A.jpg







1.3Product Application


1.4 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

  Neat warehouse and clean production line

1.6 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error
