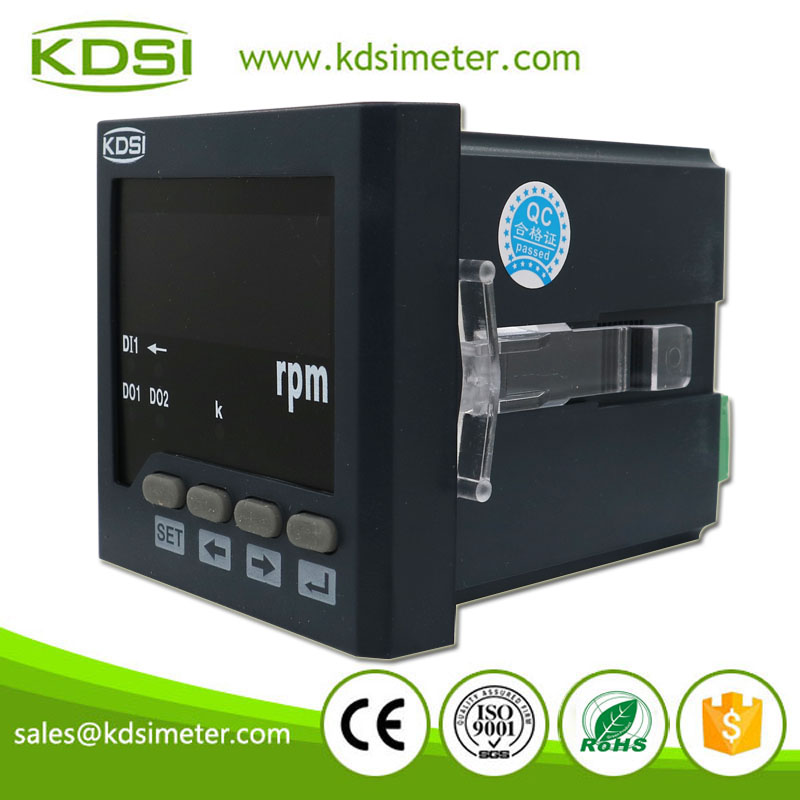

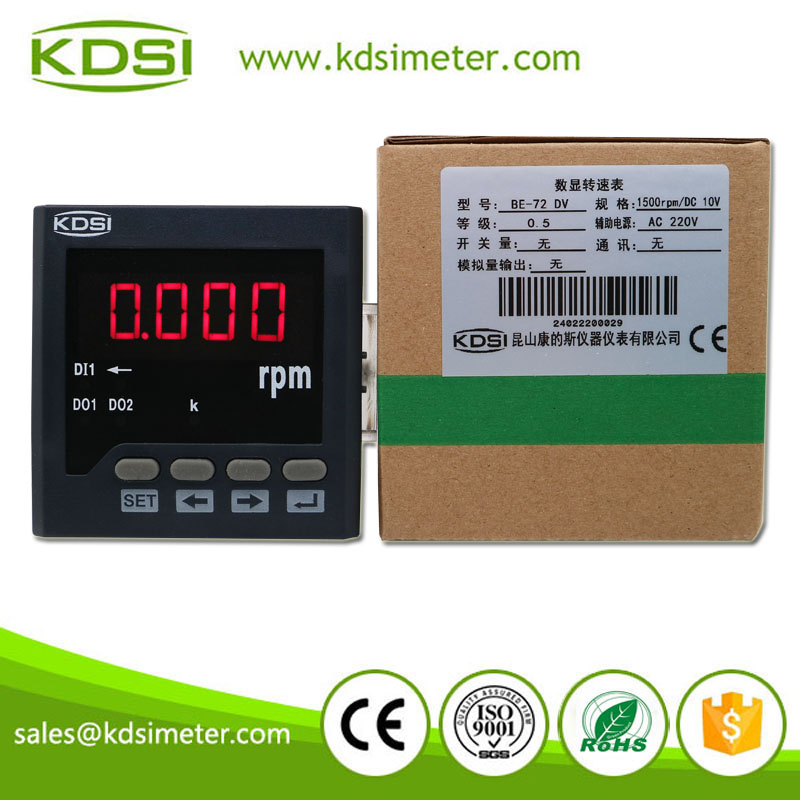

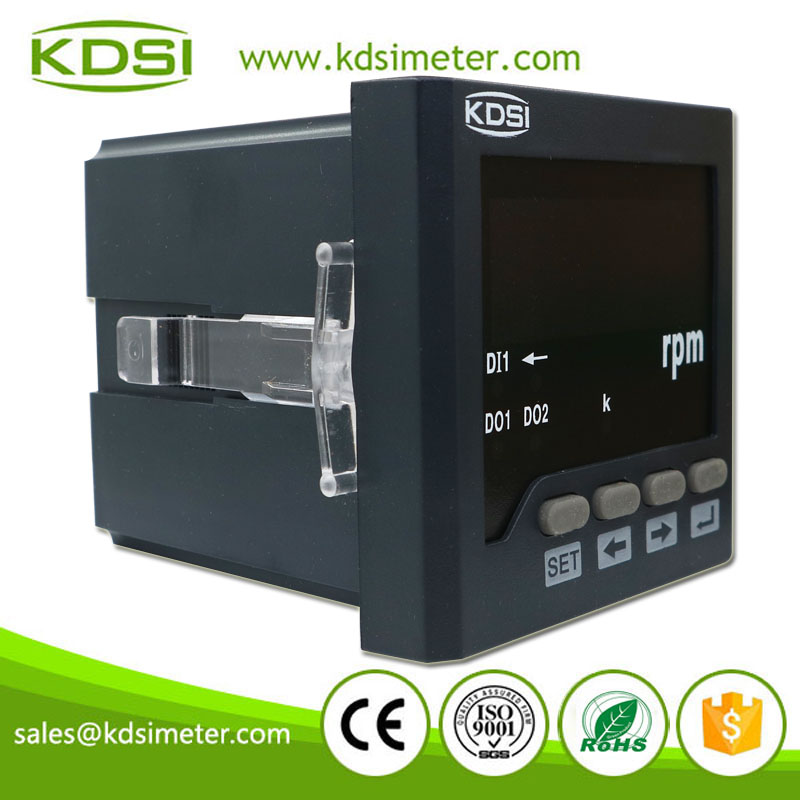

BE-72DV
KDSI Also can do OEM
| Specification | ||
| | Model | BE-72 DV |
| Measure range | 0-10V | |
| Expand function | RS485,Modbus,switch input/output,analog output | |
| Frame size | 72x72mm | |
| Cutout size | 68x68mm | |
| Material | ABS plastic shell housing | |
| Power supply | AC/DC 80~270V,AC380V, AC100V | |
| Product Description | |
|
| Overview BE-DV series High precision measurement DC voltage. Provide the digital tube display, local data query. Digital LED display ,can set the ratio of current. |
| Features 1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2.Baud rate: 1200~9600bps, the default 2400bps 3.Switch input support 2 stem node input. 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | |
| Technical parameters | Value | |
| input | Normal value | Voltage :300V、500V，Current :1A、5A，(Or ordered by customer) |
| Overload | Current：continual 1.2times，instaneous10times/1s； Voltage：continual1.2times，instaneous 2times/1s. | |
| Frequency | 45～65Hz | |
| Accuracy class | 0.5 | |
| Display | LED display，range in：0～9999 | |
| Power supply | Voltage range | AC 220V |
| Power consumption | <4VA | |
| Insulation resistance | ≥100MΩ | |
| Isolation voltage | Between power supply/input/output 2kV/1min（rms） | |
| MTBF | ≥50000h | |
| Environment | Temperature | Work：-10～55℃，Storage：-25～+70℃ |
| Humidity | ≤93%RH，In the place without dew and corrosive gas | |
| Altitude | ≤2000m | |
".
" "： Used for menu moving backward, the parameter is set back off and save your settings .
Note: “SET ” :the value of bit shifted to the right, in the password input mode or CT、PT value input mode
| Specification | ||
| | Model | BE-72 DV |
| Measure range | 0-10V | |
| Expand function | RS485,Modbus,switch input/output,analog output | |
| Frame size | 72x72mm | |
| Cutout size | 68x68mm | |
| Material | ABS plastic shell housing | |
| Power supply | AC/DC 80~270V,AC380V, AC100V | |
| Product Description | |
|
| Overview BE-DV series High precision measurement DC voltage. Provide the digital tube display, local data query. Digital LED display ,can set the ratio of current. |
| Features 1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2.Baud rate: 1200~9600bps, the default 2400bps 3.Switch input support 2 stem node input. 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | |
| Technical parameters | Value | |
| input | Normal value | Voltage :300V、500V，Current :1A、5A，(Or ordered by customer) |
| Overload | Current：continual 1.2times，instaneous10times/1s； Voltage：continual1.2times，instaneous 2times/1s. | |
| Frequency | 45～65Hz | |
| Accuracy class | 0.5 | |
| Display | LED display，range in：0～9999 | |
| Power supply | Voltage range | AC 220V |
| Power consumption | <4VA | |
| Insulation resistance | ≥100MΩ | |
| Isolation voltage | Between power supply/input/output 2kV/1min（rms） | |
| MTBF | ≥50000h | |
| Environment | Temperature | Work：-10～55℃，Storage：-25～+70℃ |
| Humidity | ≤93%RH，In the place without dew and corrosive gas | |
| Altitude | ≤2000m | |
". " "： Used for menu moving backward, the parameter is set back off and save your settings . Note: “SET ” :the value of bit shifted to the right, in the password input mode or CT、PT value input mode
