Factory direct sales BE-48DV DC5V m/min voltage meter with digital rpm display

Share to:

Factory direct sales BE-48DV DC5V m/min voltage meter with digital rpm display

Availability:

Quantity:



Inquire Add to Basket

Model:
BE-48 DV
Brand:
KDSI Also can do OEM

Factory direct sales BE-48DV DC5V m/min voltage meter with digital rpm display

1.1Product Description

BE-48DV DC5V m-min rpm meter-2

Products Details
Performance Characteristics
1.High precision measurement measurement of single phase AC voltage or DC voltage
2.Provide the digital tube display, local data query
3.Programmable voltage ratio
4.Support for RS-485 communication, Modbus-RTU protocol
5.Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
6.A variety of shapes to meet the different requirements of the cabinet body electric circuit

Signal input

♦Connection mode of single phase
♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V, DC 2V, DC 20V, DC 200V, DC600V
♦Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
♦Power<1VA/ phase
♦Impedance >300KΩ
♦The frequency: 45~65Hz or DC

Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol
♦Baud rate: 1200~9600bps, the default 2400bps
♦Switch input support 2 stem node input
♦The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
♦Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
◆Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

◆Technical data

Technical parameters		Value
input	Normal value	Voltage :300V、500V，Current :1A、5A，(Or ordered by customer)
	Overload	continual1.2times，instaneous 2times/1s.
	Frequency	45～65Hz
Accuracy class		0.5
Display		LED display，range in：0～9999
Power supply	Voltage range	AC 220V
Power supply	Power consumption	<4VA
Insulation resistance		>100MΩ
Isolation voltage		Between power supply/input/output 2kV/1min（rms）
MTBF		≥50000h
Environment	Temperature	Work：-10～55℃，Storage：-25～+70℃
	Humidity	≤93%RH，In the place without dew and corrosive gas
	Altitude	≤2500m

◆ Programming explain

There are three buttons in meters,such as " SET","←","→" 、" caozuomianban huiche.jpg

".
"←" ： Menu items on the move or incremental value. .
"→" : Menu item down or diminishing value .
"SET": Menu Editor or the value of bit shifted to the right (in the digital input mode) .
caozuomianban huiche.jpg

" "： Used for menu moving backward, the parameter is set back off and save your settings .

Note: “ SET ” :the value of bit shifted to the right, in the password input mode or CT 、PT value input mode

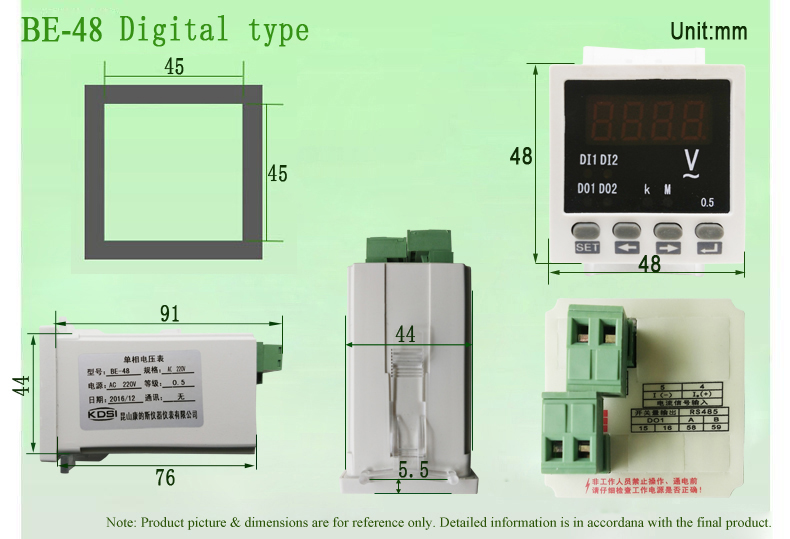

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

客户21 客户拼21
