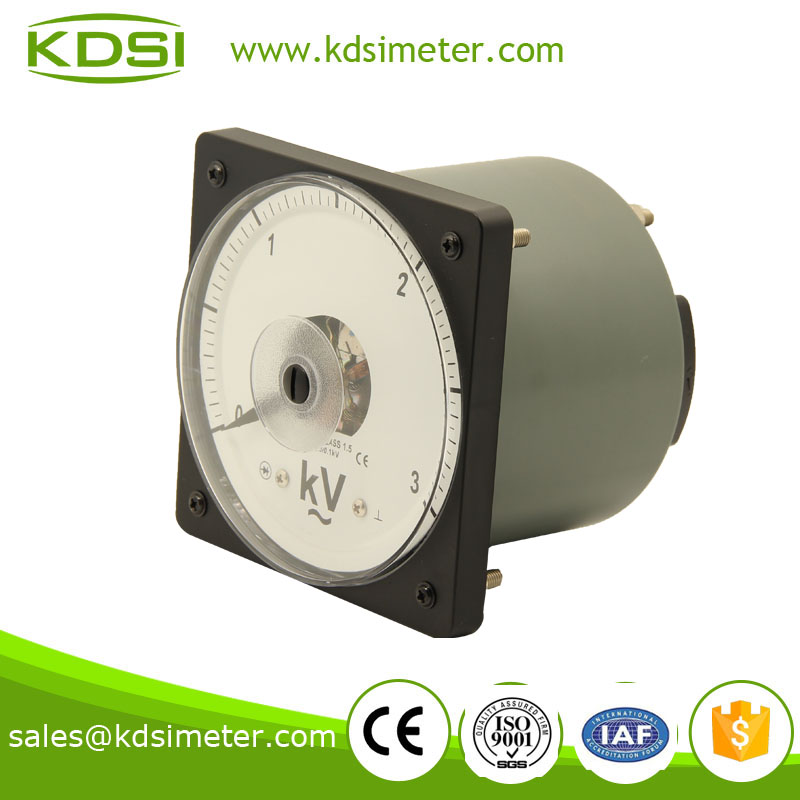

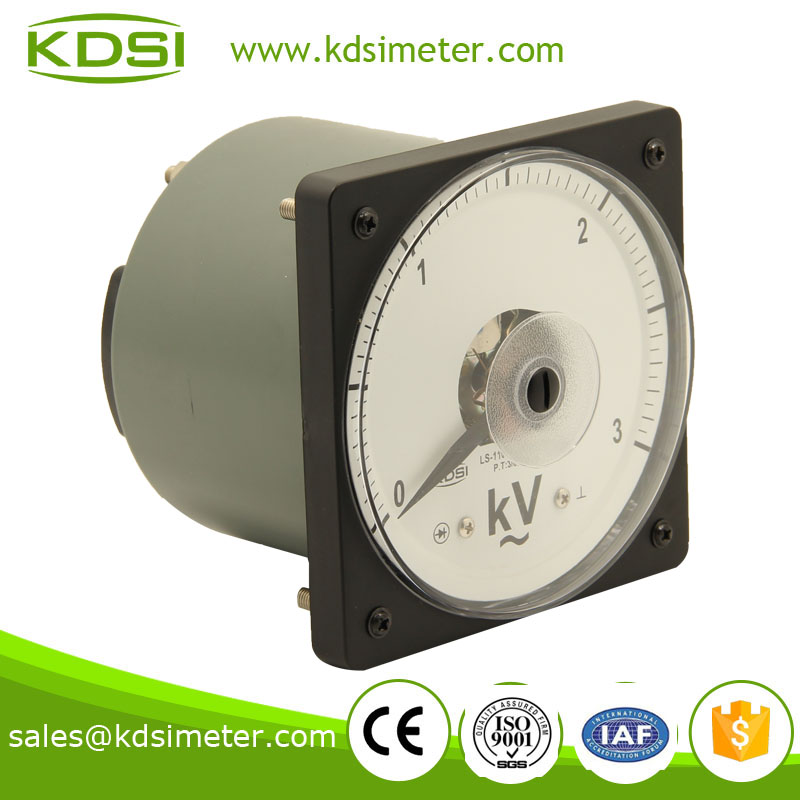

LS-110 AC Voltmeter AC3KV 3/0.1KV wide angle voltmeter

Share to:

LS-110 AC Voltmeter AC3KV 3/0.1KV wide angle voltmeter

moving Coil 110*110 Voltmeter CE approved
LS-110 AC Voltmeter AC3KV 3/0.1KV wide angle voltmeter
Linear full scale AC measurements,these instruments measure average values of sinusoidal waveforms and are scaled in RMS values.

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM
Code:
9030339000

LS-110 AC Voltmeter AC3KV 3/0.1KV wide angle voltmeter

1.1Product Description (LS-110 AC Voltmeter AC3KV 3/0.1KV wide angle voltmeter)

Composition:
Acrylic resin cover, plastic meter body, Bakelite terminal plate. Two stud mounting.

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Transparent cover, Grey meter body, white scale plate.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model				LS-110
AC Current with Recifier
Ranges		mA		100mA 150mA 200mA 400mA 500mA 600mA 800mA
		A		1A 5A 10A 15A 20A
Combined with an external C.T.		X/1A		10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
		X/5A		10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
AC Voltmeter with Recifier
Ranges		V		10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
		KV		Combined with an external PT /100V /110V
Model				LS-110
DC Current
Ranges	uA		150uA 250uA 500uA 800uA
	mA		4-20mA 1mA 10mA 500mA 800mA
	A		1A 2A 3A 4A 5A 10A 15A 20A 25A 30A
For connecting to external shunt	50mV 60mV 75mV		10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltmeter
Ranges	V		0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Frequency Meters
Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20%
Frequency Meter				Model	Measuring Rang	Voltage
				LS-110	45-55Hz 45-65Hz 55-65Hz	100V,220V,380V,400V,440v
Power Factor Meters
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5
Power Factor Meter				Model	Specification	Voltage Current
				LS-110	0.5lead-1.0-0.5lag	110V 220V 380V 415V, 1A 5A
Power Meters for Active and Reactive Power
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5
				Model	Voltage	Current
Power Meter				LS-110
Single phase system					100V 220V	1A 5A
Three phase three wire 3P3W					100V 220V 380V 440V	1A 5A

1.2Dimensioned drawing (LS-110 AC Voltmeter AC3KV wide angle voltmeter)

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Original Manufacturer High Quality LS-110 AC12kV 11/0.1kV Wide Angle Analog AC Panel Mount Voltmeter

CE Approved LS-110 AC100V Wide Angle Analog AC Panel Voltmeter For Marine

Instant Flexible LS-110 DC400V Wide Angle Analog DC Panel Mount Voltmeter For Marine

KDSI Electronic Apparatus LS-110 DC500V Wide Angle Analog DC Panel Mount Voltmeter

Hot Sales High Quality LS-110 DC+-10V Wide Angle Analog DC Panel Voltmeter

20 Years Professional Manufacturer LS-110 AC3kV 3/0.1kV Wide Angle Analog Ac Panel Mount Voltmeter

Factory direct sales LS-110 DC+-10V +-250rpm backlighting analog panel mechanical rpm meter

Easy installation LS-110 AC12kV 10/0.1kV wide angle analog ac panel voltmeter

Instant flexible LS-110 DC35V wide angle analog dc panel voltmeter

Factory direct sales LS-110 DC150V wide angle analog dc panel volt meter

KDSI electronic apparatus LS-110 DC800V wide angle analog dc panel mount voltmeter

CE Approved LS-110 DC4-20mA 450V wide angle analog dc panel voltage meter

CE certificate LS-110 DC300V wide angle analog dc panel 0-300v voltmeter

Hot sales marine meter LS-110 DC10V 1000V wide angle analog dc panel mount voltmeter

KDSI electronic apparatus LS-110 DC50V wide angle analog dc panel volt meter

Portable precise LS-110 DC600V analog dc panel voltage meter

CE certificate LS-110 DC4-20mA 800V analog dc panel voltmeter for marine

Safe to operate LS-110 DC50V analog dc panel mount voltmeter

Hot sales LS-110 DC1000V analog dc panel voltmeter

China Supplier LS-110 AC1000V rectifier analog ac panel mount voltmeter
