Hot Sales High Quality LS-110 DC+-10V Wide Angle Analog DC Panel Voltmeter

moving Coil 110*110 Voltmeter CE approved
Hot Sales High Quality LS-110 DC+-10V Wide Angle Analog DC Panel Voltmeter
Quantity:
Inquire Add to Basket

  • LS-110

  • KDSI Also can do OEM

  • 9030339000

Hot Sales High Quality LS-110 DC+-10V Wide Angle Analog DC Panel Voltmeter

1.1Product Description

 Product  Description ______________________________________________________________

Product Name  Hot Sales High Quality LS-110 DC+-10V Wide Angle Analog DC Panel Voltmeter
Type voltmeter Service OEM ODM
Composition Acrylic resin cover Model LS-110
ABS Resin frame and case

PC glass fiber base mounting fitting included
Scale Plate Normally Aluminum Alloy or Customized Front Frame(mm) 110*110
Features Zero Adjustment/Aging Test/Anti-static Panel cutout (mm) DIA.103
Operating Position Normally in vertical position or customized Color Customized
Pointer Normally Aluminum Alloy or Customized Accuracy Class 1.5
Overshoot Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) Service Condition

-20~+50 degree

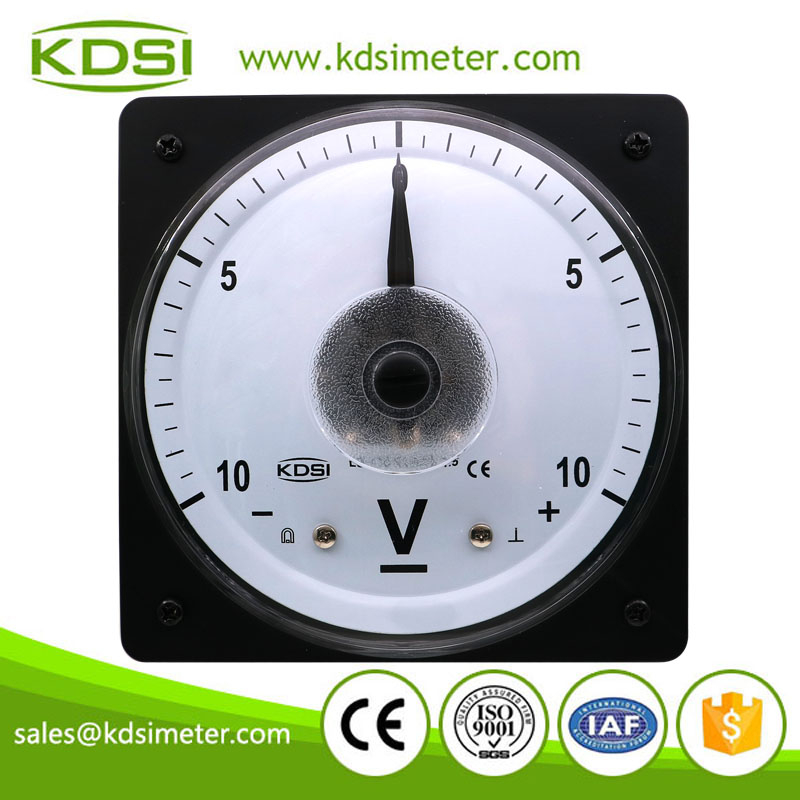

  LS-110 DC+-10V voltmeter LS-110 DC+-10V voltmeter-1 LS-110 DC+-10V voltmeter-2



1.2Dimensioned drawing



LS-110 dimensional drawing.jpg




1.3Product Application


1.4 Product Packaging


          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

仓储
  Neat warehouse and clean production line

1.6 Our Customer

客户21
客户拼21
2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance ≥5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error
生产设备21



TNT 、 EMS、 FEDEX 、 UPS、 DHL 、 ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line
生产线实拍-21
Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
