KDSI electronic apparatus BE-M8 5/5A current transformer for ac ammeter

KDSI electronic apparatus BE-M8 5/5A current transformer for ac ammeter
Insulation class:E(120 °C max)
Ambient temperature: -20°C~ +45°C( +65°C)
Storage temperature: -50°C~ +80°C
Test voltage:4KV 50Hz 1min
Operating frequency:50hz-60hz
Rated secondary current:5
Rated burden:2.5VA
Availability:
Quantity:
  • BE-M8

  • KDSI Also can do OEM

  • 8504311000

KDSI electronic apparatus BE-M8 5/5A current transformer for ac ammeter

1.1Product Description

1,The Current Transformers are made according to IEC 44-1,BS398,DIN42600 standards
2,All case are made of non-combustible plastic material according to UL-94V0.
3,Insulation class:E(120 °C max)
4,Ambient temperature: -20°C~ +45°C( +65°C)
5,Storage temperature: -50°C~ +80°C
6,Test voltage:4KV 50Hz 1min
7, Operating frequency:50hz-60hz
8,Rated secondary current:5A
9,Rated burden:2.5VA

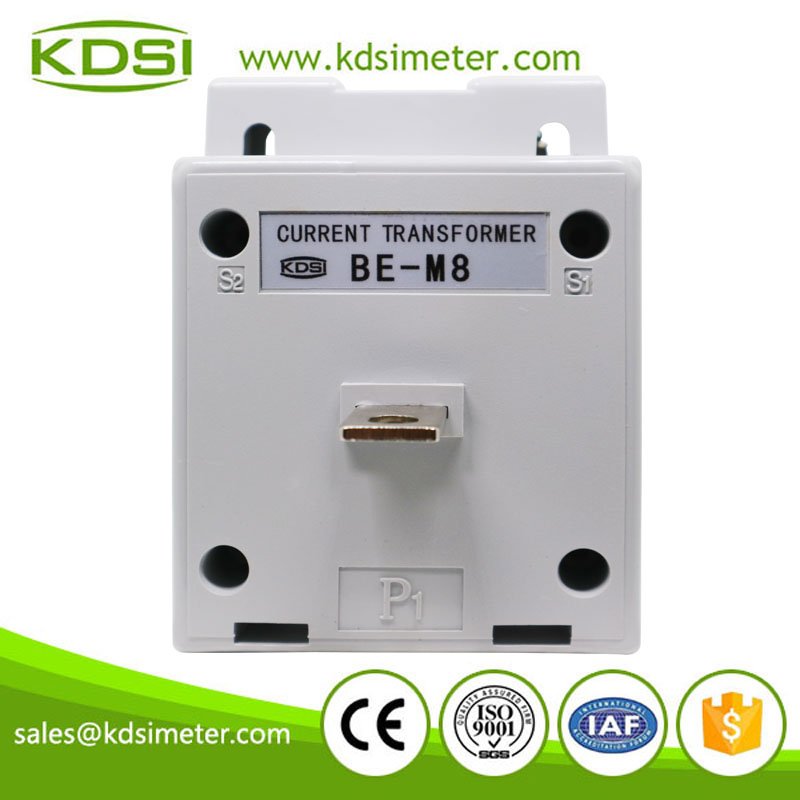

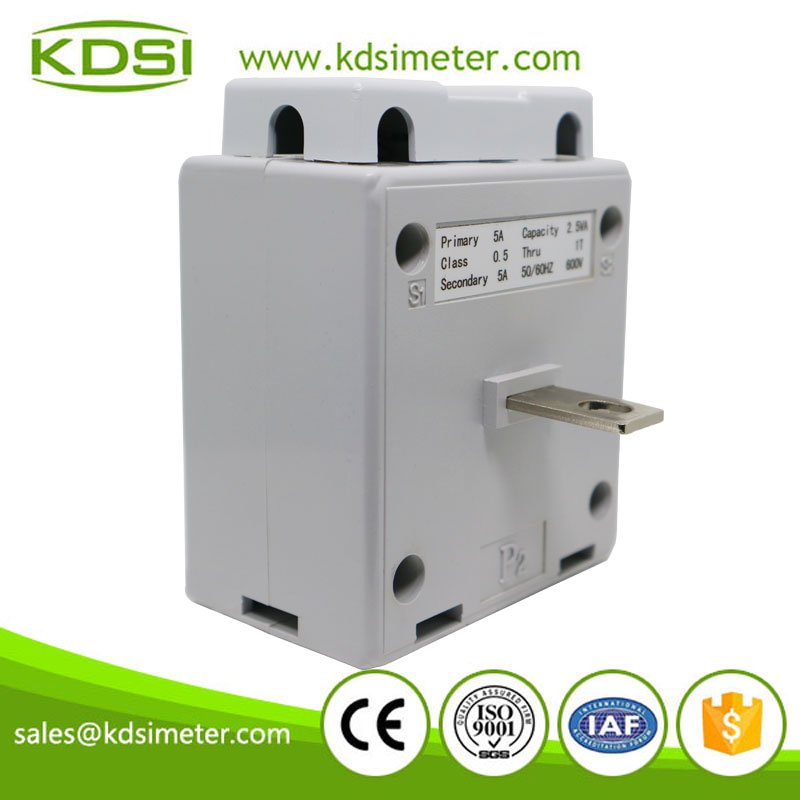

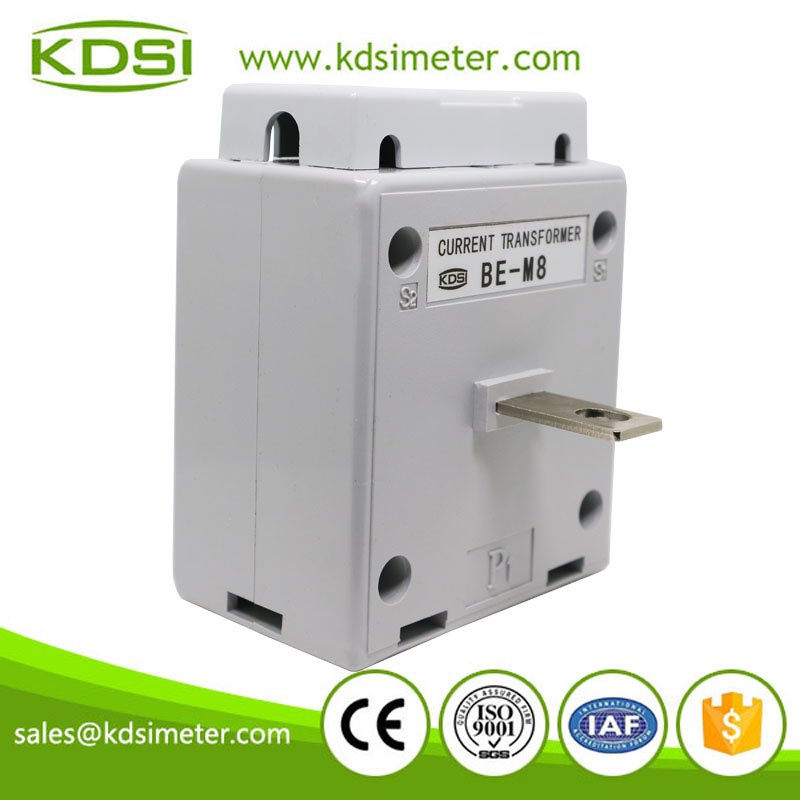

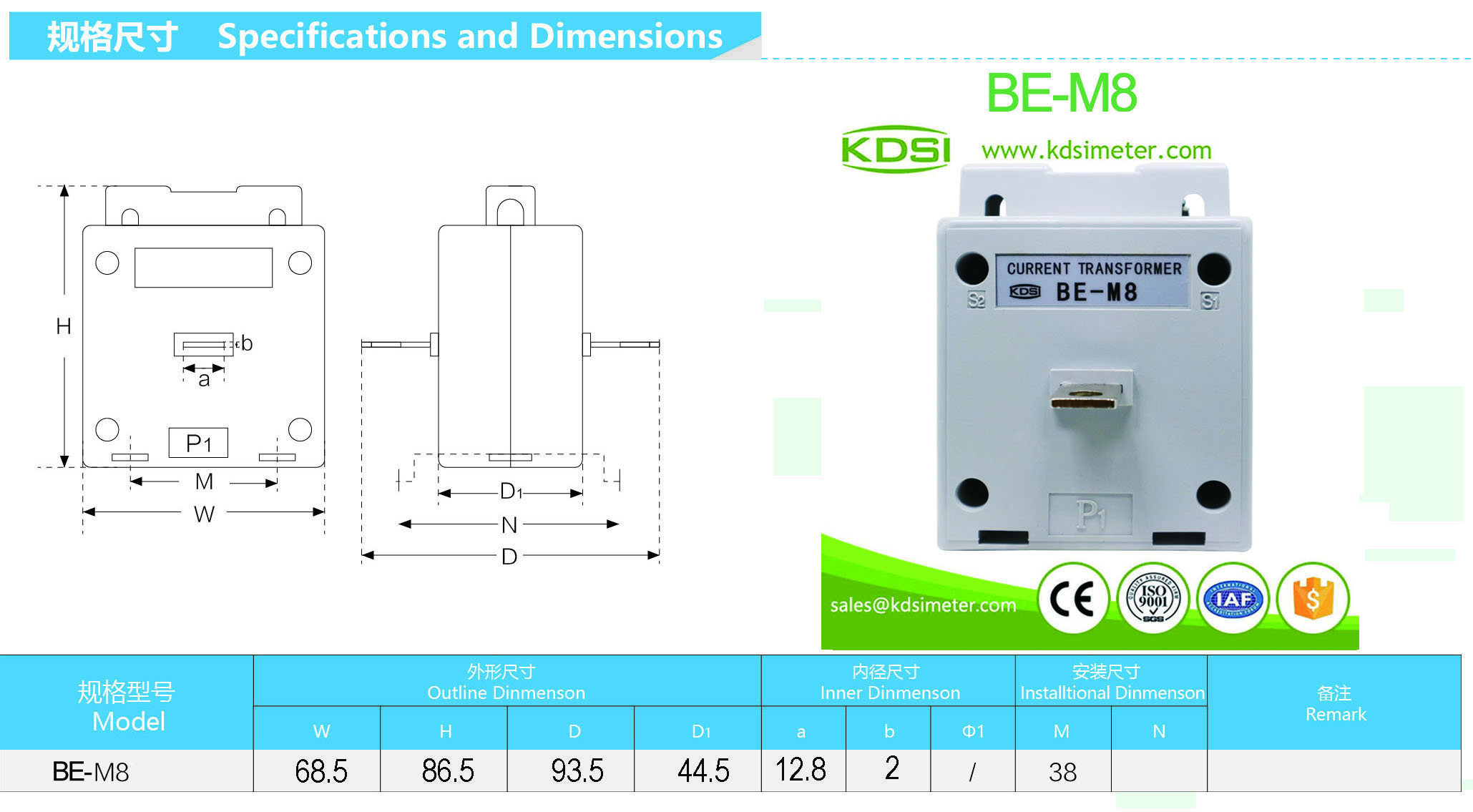

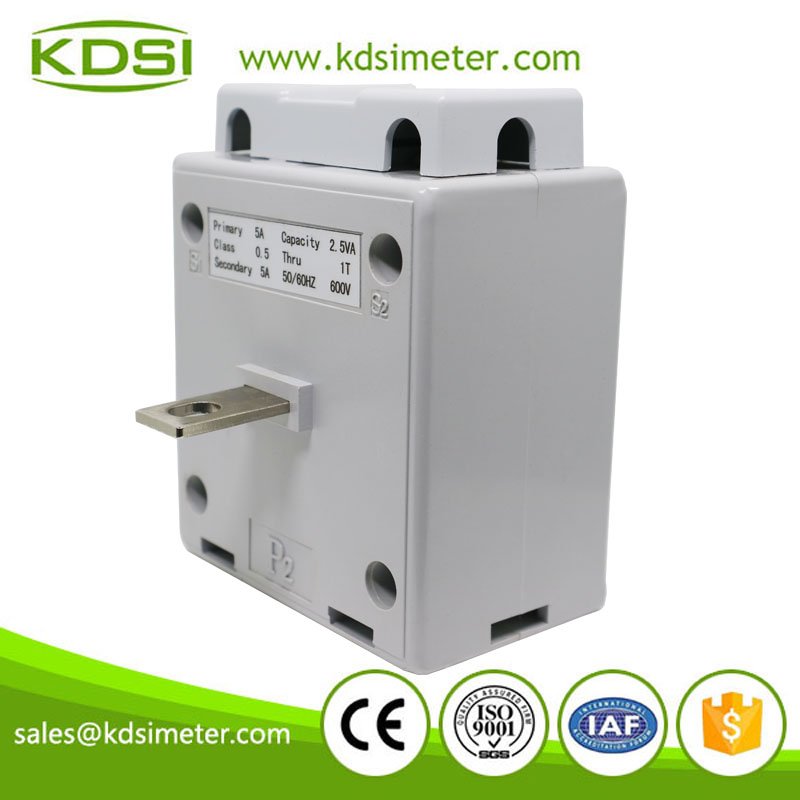

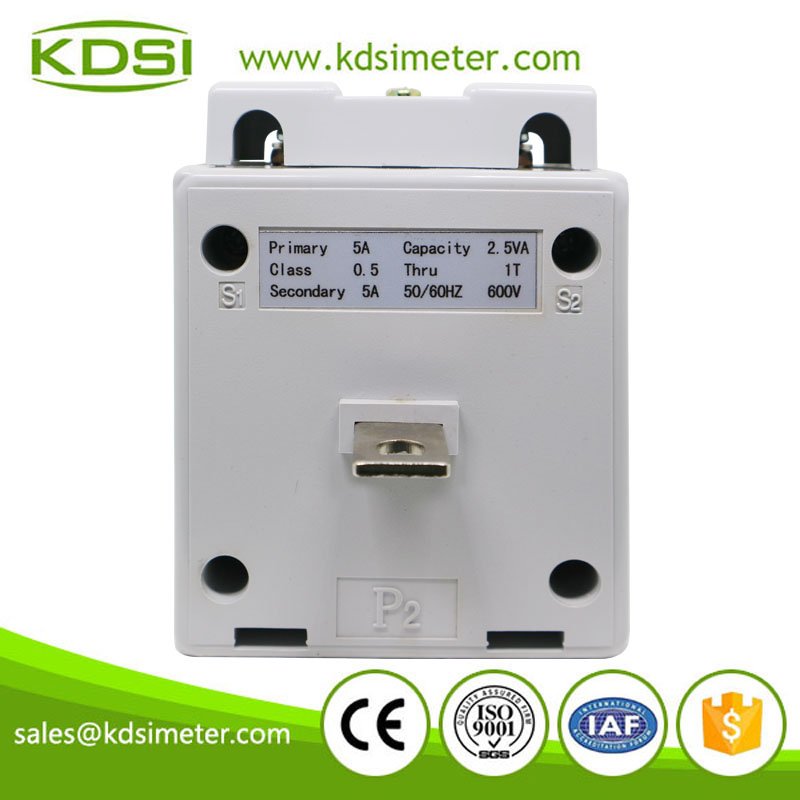

BE-M8 5-5A current transformerBE-M8 5-5A current transformer-1BE-M8 5-5A current transformer-2BE-M8 5-5A current transformer-3BE-M8 5-5A current transformer-4BE-M8 5-5A current transformer-5BE-M8 CT drawing-1.jpg

 Our Company _________________________________________________________________________________

KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.

 Six Advantages_______________________________________________________________________________

1. BRAND       20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.

2. QUALITY   All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.

3. APPLICATIONS  Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.

4. LEAD TIME   Short lead time, only approximately three days for normal specifications.

5. PRICE            Cost-effective ,with the lowest price compared with those in the same quality.

6. SERVICES     Our products can be tailor-made for our customers, with the lifelong service available free of charge

WorkshopProfessional Team

1.2Product Application

Application_____________________________________________________________________________________




1.3 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.4 Professional Storage

  Neat warehouse and clean production line


1.5 Our Customer


2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error
