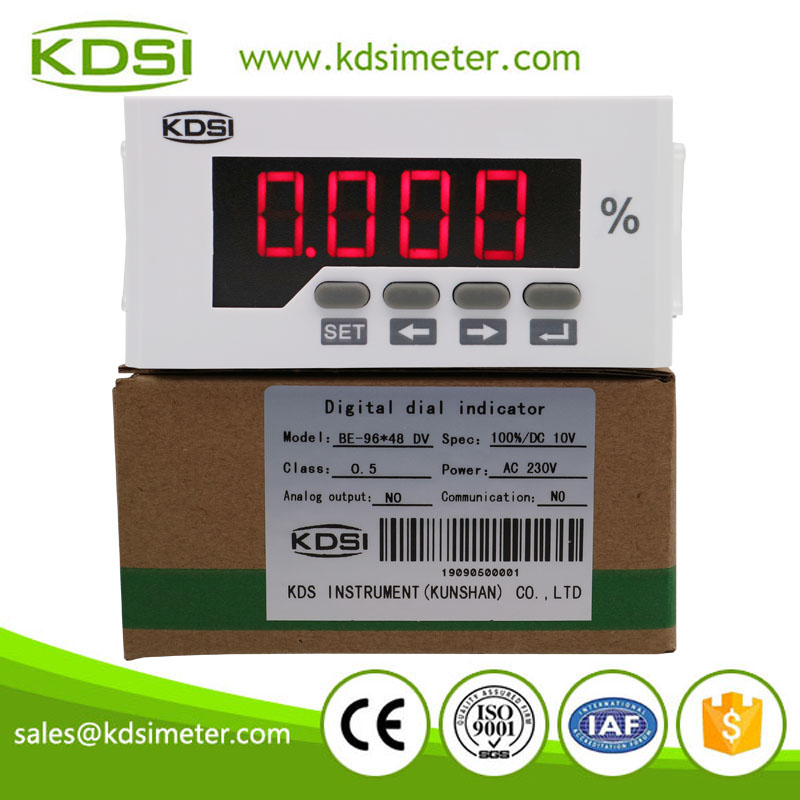

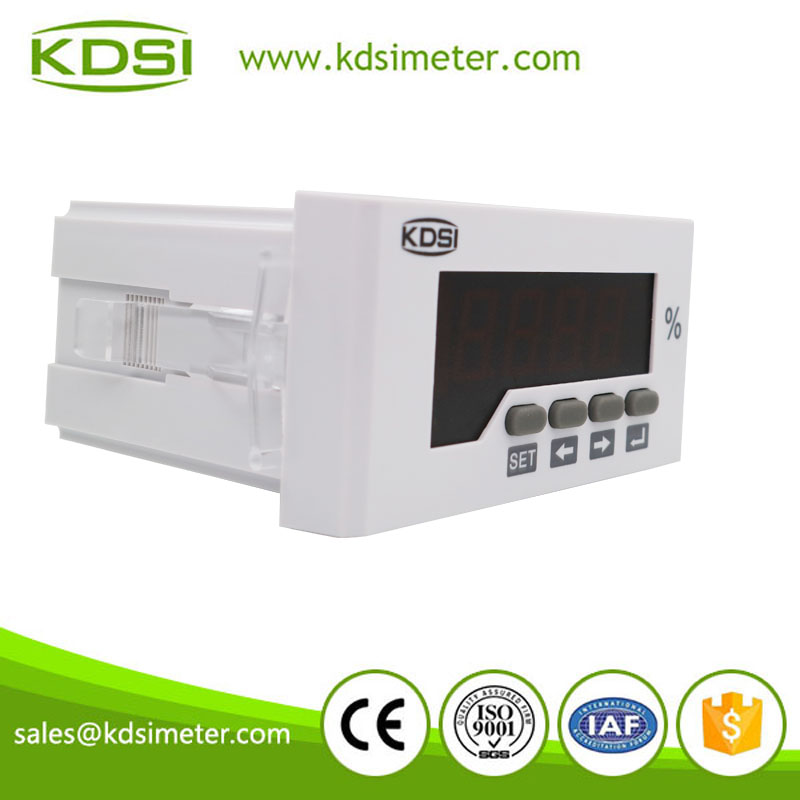

Hot Selling Good Quality 4 digits LED display BE-96x48DV DC10V 100% digital dial indicator

Hot Selling Good Quality 4 digits LED display BE-96x48DV DC10V 100% digital dial indicator
Accuracy CL0.5
Availability:
Quantity:
  • BE-96x48 DV

  • KDSI Also can do OEM

Hot Selling Good Quality 4 digits LED display BE-96x48DV DC10V 100% digital dial indicator

1.1Product Description

Specification
BE-96x48 DC10V 100 digital load meter-3 Model BE-96x48 DV
Measure range 0-100%
Expand function RS485,Modbus,switch input/output,analog output
Frame size 96x48mm
Cutout size 92x45mm
Material ABS plastic shell housing
Power supply AC/DC 80~270V,AC380V,
AC100V



Product Description



Overview
BE-DV series High precision measurement DC voltage.
Provide the digital tube display, local data query.
Digital LED display ,can set the ratio of current.
Features
1.Communication interface 1 way RS-485  communication, Modbus-RTU protocol
2.Baud rate: 1200~9600bps, the default 2400bps
3.Switch input support 2 stem node input.
4.The switch output support 2 relay output,  capacity: AC 250V/5A, DC 30V/5A
5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
BE-96x48 DC10V 100 digital load meter-5


Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

Technical data



Technical parameters Value
input Normal value Voltage :300V500VCurrent :1A5A(Or ordered by customer)
Overload Currentcontinual 1.2timesinstaneous10times/1s
Voltagecontinual1.2timesinstaneous 2times/1s.
Frequency 4565Hz
Accuracy class 0.5
Display LED displayrange in0~9999
Power
supply
Voltage range AC 220V
Power consumption <4VA
Insulation resistance 100MΩ
Isolation voltage Between power supply/input/output   2kV/1minrms
MTBF 50000h
Environment Temperature Work-10~55,Storage:-25~+70℃
Humidity 93%RHIn the place without dew and corrosive gas
Altitude 2000m

Programming explain

There are three buttons in meters,such as  " SET","←","→" 、" caozuomianban huiche.jpgcaozuomianban huiche.jpg ".
"←" :  Menu items on the move or incremental value. .
"→" :   Menu item down or diminishing value .
"SET":   Menu Editor or the value of bit shifted to the right (in the digital input mode) .
   caozuomianban huiche.jpg "   ": Used for menu moving backward, the parameter is set back off and save your settings .

Note:SET ” :the value of bit shifted to the right, in the password input mode or CTPT value input mode

BE-96x48 DC10V 100 digital load meter-3BE-96x48 DC10V 100 digital load meter-1BE-96x48 DC10V 100 digital load meter-2

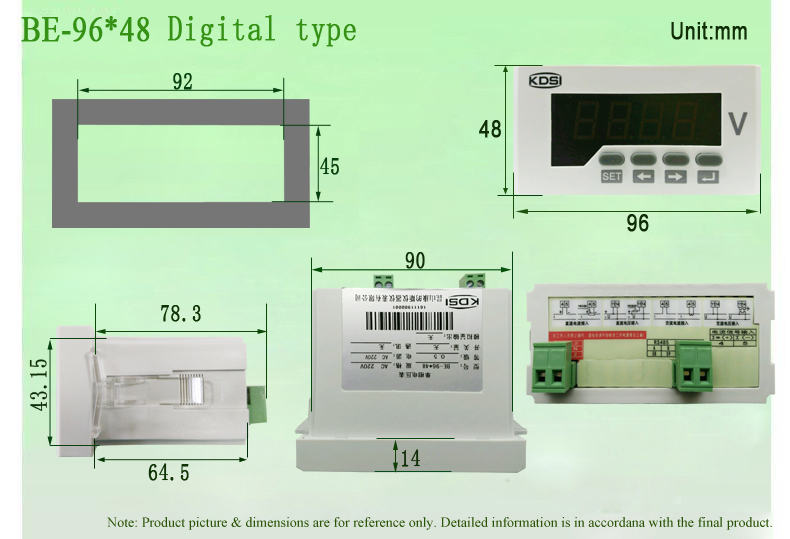

1.2Dimensioned drawing

BE-96-48 dimensioned drawing

1.3Product Application


1.4 Product Packaging
