Type | Rated Voltage (KV) | Rated Current Ratio(A) | Rated Burden (VA) | Accuracy Class | Window Size (MM) | Weight(KG) |

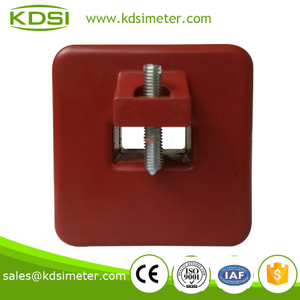

BE-30JZM | 0.66 | 30-150/5A | 3.75 | 0.5/1 | 33*18 | 1.3 |
BE-40JZM | 0.66 | 200-300/5A | 5 | 0.5 | 43*18 | 1.5 |

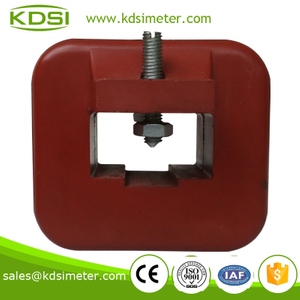

BE-50JZM | 0.66 | 400-600/5A | 5/10 | 0.5/0.2 | 52*28 | 1.6 |

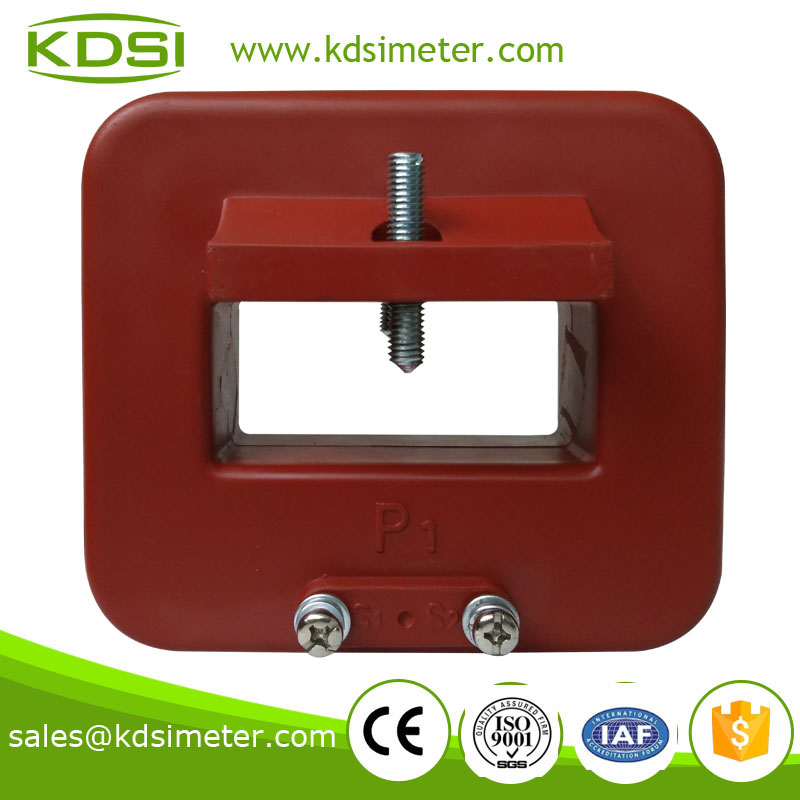

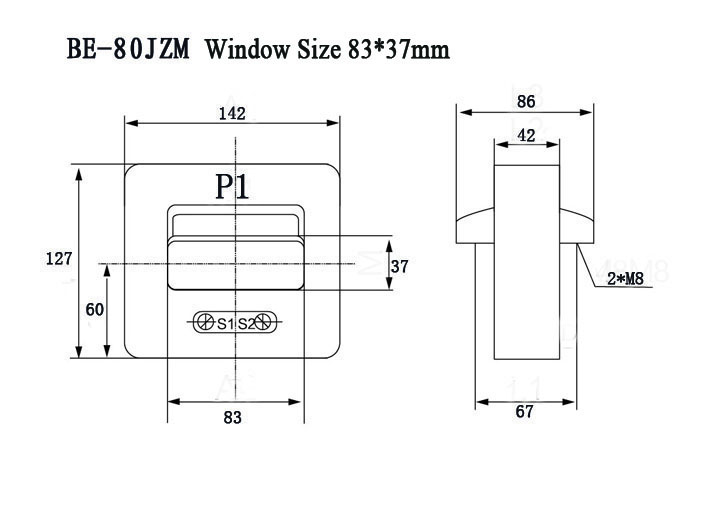

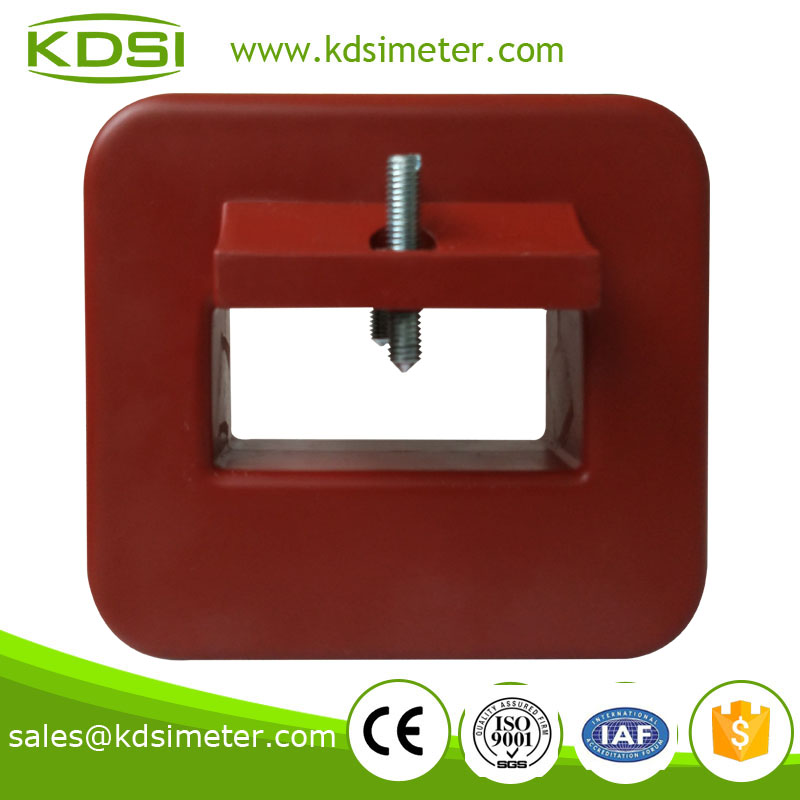

BE-80JZM | 0.66 | 750-800/5A | 10 | 0.5/0.2 | 83*37 | 2.0 |
Type | Rated Voltage (KV) | Rated Current Ratio(A) | Rated Burden (VA) | Accuracy Class | Window Size (MM) | Weight(KG) |
BE-30JZM | 0.66 | 30-150/5A | 3.75 | 0.5/1 | 33*18 | 1.3 |
BE-40JZM | 0.66 | 200-300/5A | 5 | 0.5 | 43*18 | 1.5 |
BE-50JZM | 0.66 | 400-600/5A | 5/10 | 0.5/0.2 | 52*28 | 1.6 |
BE-80JZM | 0.66 | 750-800/5A | 10 | 0.5/0.2 | 83*37 | 2.0 |
