CE certificate BE-50JZM 0.66KV Busbar type electric current transformer

CE certificate BE-50JZM 0.66KV Busbar type electric current transformer
Rated Current :400-600/5A
Rated Current :
BE-50JZM 400/5A BE-50JZM 500/5A BE-50JZM 600/5A
Quantity:
Inquire Add to Basket

  • KDSI Also can do OEM

CE certificate  BE-50JZM 0.66KV Busbar type electric current transformer

1.1Product Description

◆ Features
      BE-JZM Busbar type current transformer is used for indoor, measuring electric energy and current ,relay protection in the electrics system up to rated frequency 50 HZ lower than rated voltage 0.66KV

◆Model Name
       BE – 50  JZ  M
      BE:Factory item no
     50:Window Size
     JZ:Casting resin insulated
     M:Busbar type

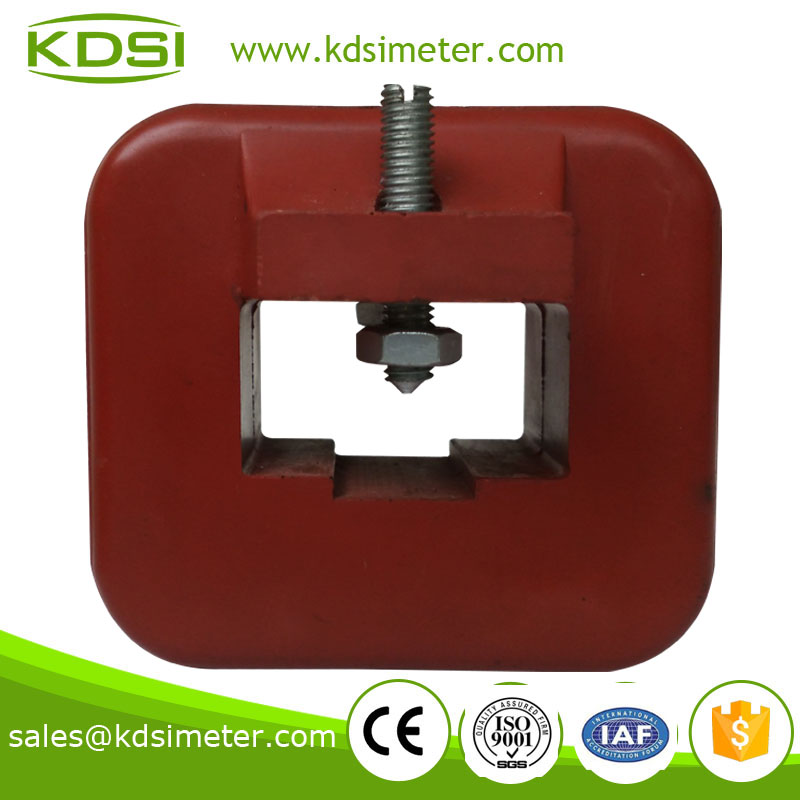

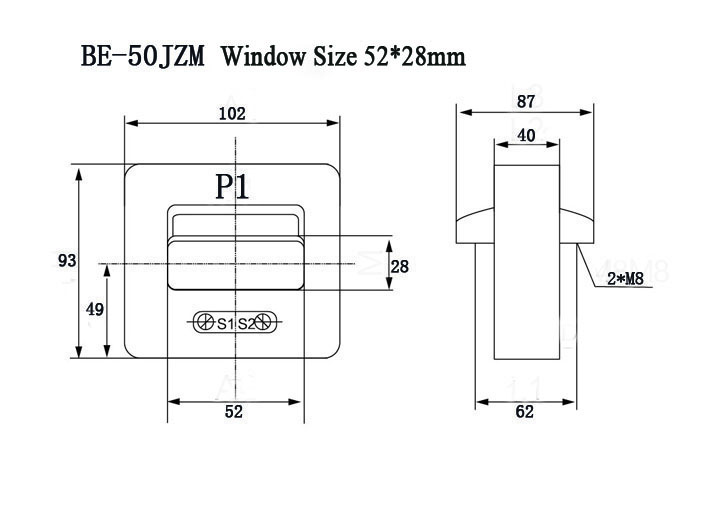

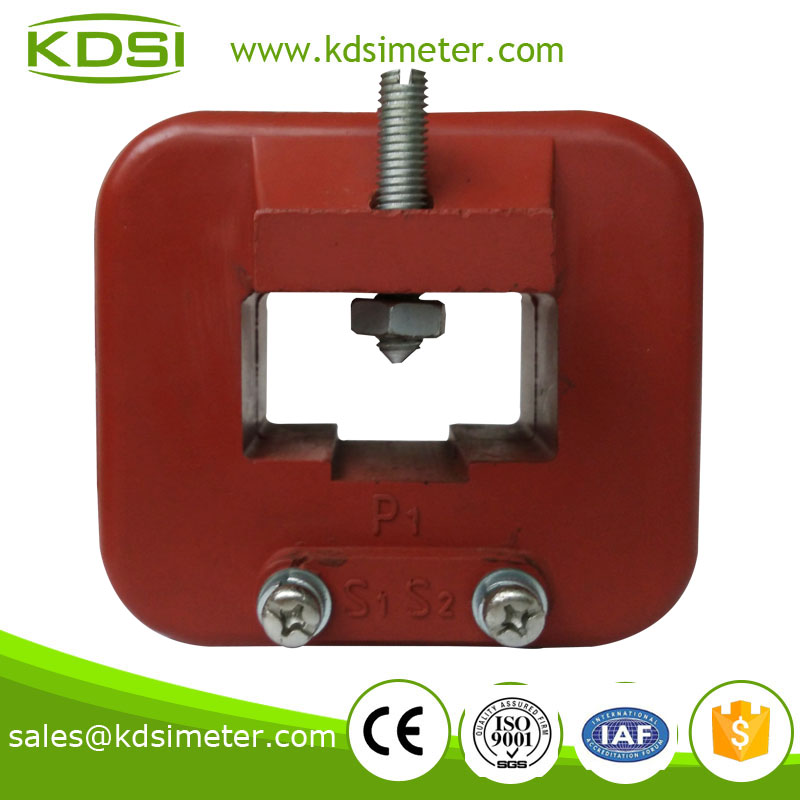

BE-50JZM BACK BE-50JZM SIDE BE-50JZM BE-50JZM
◆ Technical data
          1.This type product meet standard GB1208-2006 and IEC60044-1:2003 《 Current Transformer 》
       2.Rated voltage:0.66Kv
       3.Rated frequency:50HZ
       4.Rated secondary current:5A,1A
       5.The secondary winding for power frequency voltage 3KV,no rock up and occur ray
       6.Rated output ,accuracy grade ,outline dimension as form:

Type Rated Voltage
(KV)		 Rated Current
Ratio(A)		 Rated Burden
(VA)		 Accuracy Class Window Size
(MM)		 Weight(KG)
BE-30JZM 0.66 30-150/5A 3.75 0.5/1 33*18 1.3
BE-40JZM 0.66 200-300/5A 5 0.5 43*18 1.5
BE-50JZM 0.66 400-600/5A 5/10 0.5/0.2 52*28 1.6
BE-80JZM 0.66 750-800/5A 10 0.5/0.2 83*37 2.0

1.2Product Application



1.3 Product Packaging


          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.4 Professional Storage

  Neat warehouse and clean production line

1.5 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance ≥5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT 、 EMS、 FEDEX 、 UPS、 DHL 、 ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line
Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
