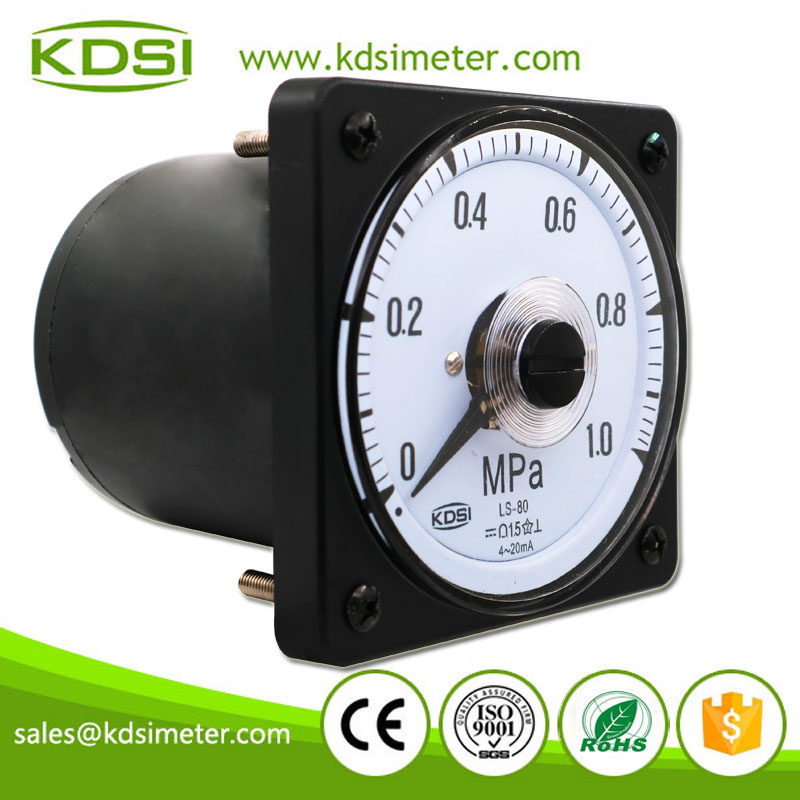

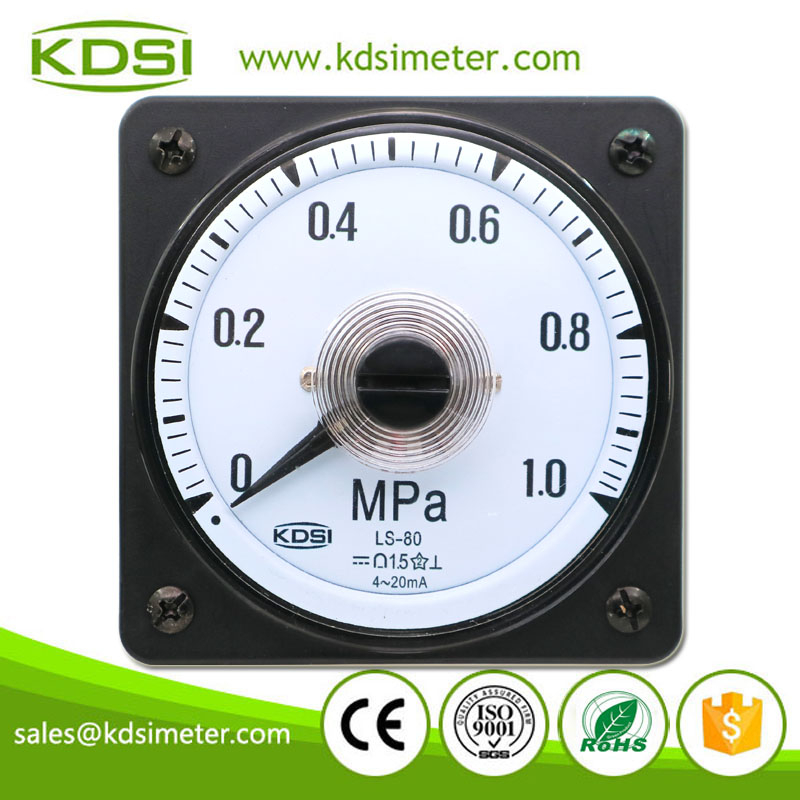

Easy Operation LS-80 DC4-20mA 1MPa Wide Angle Analog DC Amp Pressure Panel Meter

Share to:

Easy Operation LS-80 DC4-20mA 1MPa Wide Angle Analog DC Amp Pressure Panel Meter

moving Coil 80*80mm CE approved
LS-80 DC4-20mA 1MPa Wide Angle Analog DC Amp Pressure Panel Meter

Quantity:



Inquire Add to Basket

Model:
LS-80
Brand:
KDSI Also can do OEM

LS-80 DC4-20mA 1MPa Wide Angle Analog DC Amp Pressure Panel Meter

1.1Product Description

Product Description ______________________________________________________________

Product Name	LS-80 DC4-20mA 1MPa Wide Angle Analog DC Amp Pressure Panel Meter
Type	Panel meter	Service	OEM ODM
Composition	Acrylic resin cover	Model	LS-80
	ABS Resin frame and case
	PC glass fiber base mounting fitting included
Scale Plate	Normally Aluminum Alloy or Customized	Front Frame(mm)	80*80
Features	Zero Adjustment/Aging Test/Anti-static	Panel cutout (mm)	DIA.71mm
Operating Position	Normally in vertical position or customized	Color	Customized
Pointer	Normally Aluminum Alloy or Customized	Accuracy	Class 1.5
Overshoot	Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized)	Service Condition	-20~+50 degree

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Hot Selling Good Quality BE-96 DC4-20mA -1-3bar DC Analog Amp Panel Pressure Meter

Factory Direct Sales BE-96W DC4-20mA 10bar Wide Angle Analog DC Amp Panel Mount Pressure Gauge

Hot Sales BE-72 DC4-20mA 10bar Analog Amp Panel Pressure Meter

CE Certificate BE-96W DC4-20mA 7bar Wide Angle Analog DC Amp Panel Pressure Meter

Easy Installation LS-110 DC10V 75- 100KNm Wide Angle Analog Voltage Panel Pressure Meter

CE Certificate BE-48 DC10V 10bar Analog DC Panel Current Pressure Meter

China Supplier LS-80 DC4-20mA 250bar Wide Angle Analog DC Amp Pressure Panel Meter

Hot Selling Good Quality BE-96W DC4-20mA -1-0bar Wide Angle Analog DC Amp Pressure Panel Meter

New Hot Sale Smart BE-72 DC1mA 443kN analog Amp Panel Pressure Meter

Hot Sales LS-80 DC4-20mA 40MPa Wide Angle Analog Panel DC Ampere Pressure Meter

Easy Operation LS-110 DC4-20mA 6kg/cm2 Wide Angle DC Analog Amp Panel Pressure Meter

CE Certificate BE-96 DC4-20mA 40bar DC Analog Amp Panel Mount Pressure Meter

High-precision Stainless Steel Manometer 400bar 100mm Lower Back Mount Glycerin Oil Filled Pressure Gauge

Easy Installation BE-96W DC4-20mA 400bar Wide Angle Analog DC Current Pressure Panel Meter

KDSI Electronic Apparatus BE-96W DC4-20mA -1-0bar Wide Angle Analog DC Pressure To Current Panel Meter

CE Certificate BE-96W DC4-20mA 10bar Wide Angle Analog DC Amp Pressure Panel Meter

Factory Direct Sales BE-96 DC4-20mA 16bar DC Analog Amp Panel Mount Pressure Gauge

Multi-purpose BE-96x48DV Bar DC Voltage Pressure Mini Digital Panel Meter

High Quality Professional BE-72 DC4-20mA 250bar Analog DC Amp Panel Mount Pressure Gauge

New Hot Sale Smart BE-96 DC4-20mA 6bar DC Analog Amp Panel Pressure Meter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
