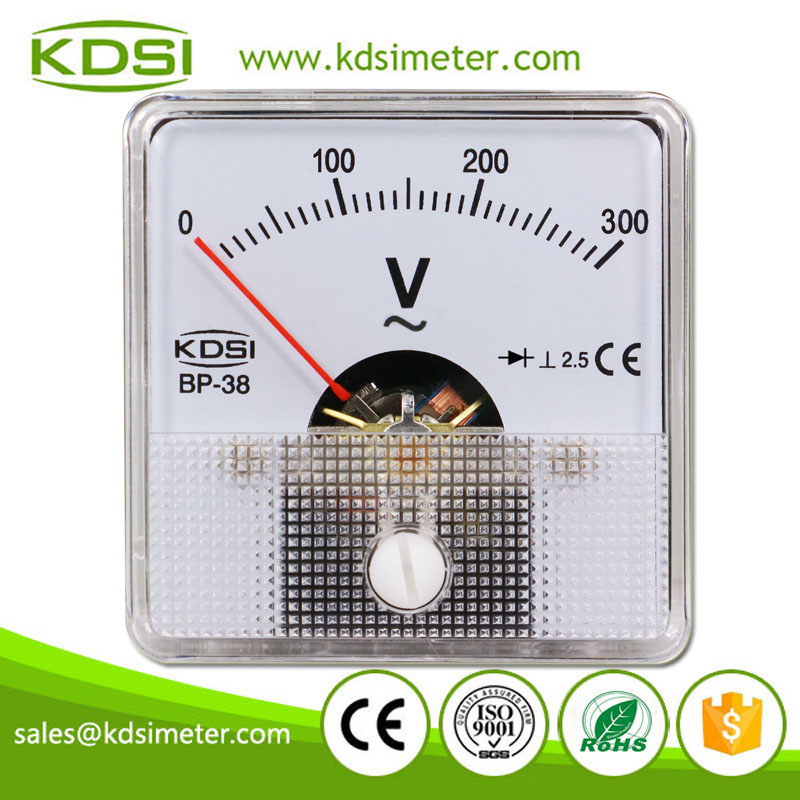

Composition: PC Front and Bakelite case, Four stud mounting, Scale Plate : The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc. Scale plate with special requirements are available upon request. Such as color, scale with lighting functions and PVC noctilucence are available upon request. Color: Black case, white scale plate. Pointer: Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request. Anti-static: All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters. Damping and Overshoot: The overshoot is less than 15% when the pointer is at the 2/3 of the scale. Damping and overshoot can be customized according to user’s requirements. Accuracy: Class1.5, 2.5; Service condition: -20~+50 degree; Operating position: Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode. Insulation Test: The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.
1.2Dimensioned drawing
1.3Product Application
1.4 Product Packaging
Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.
Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.
Professional bubble bags inside to prevent vibration during transportation.
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers
1.5 Professional Storage
Neat warehouse and clean production line
