Composition: PC Front and Bakelite case, Four stud mounting, Scale Plate : The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc. Scale plate with special requirements are available upon request. Such as color, scale with lighting functions and PVC noctilucence are available upon request. Color: Black case, white scale plate. Pointer: Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request. Anti-static: All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters. Damping and Overshoot: The overshoot is less than 15% when the pointer is at the 2/3 of the scale. Damping and overshoot can be customized according to user’s requirements. Accuracy: Class1.5, 2.5; Service condition: -20~+50 degree; Operating position: Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode. Insulation Test: The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz. Safety Precautions: Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions. The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired. The advantages of Our products: Interchangeable Dial. Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

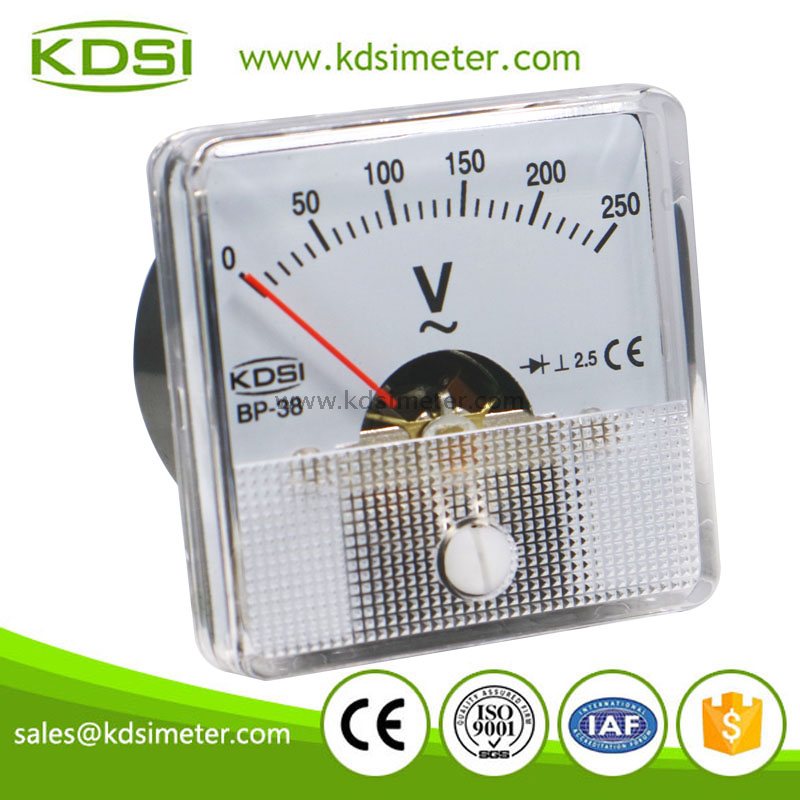

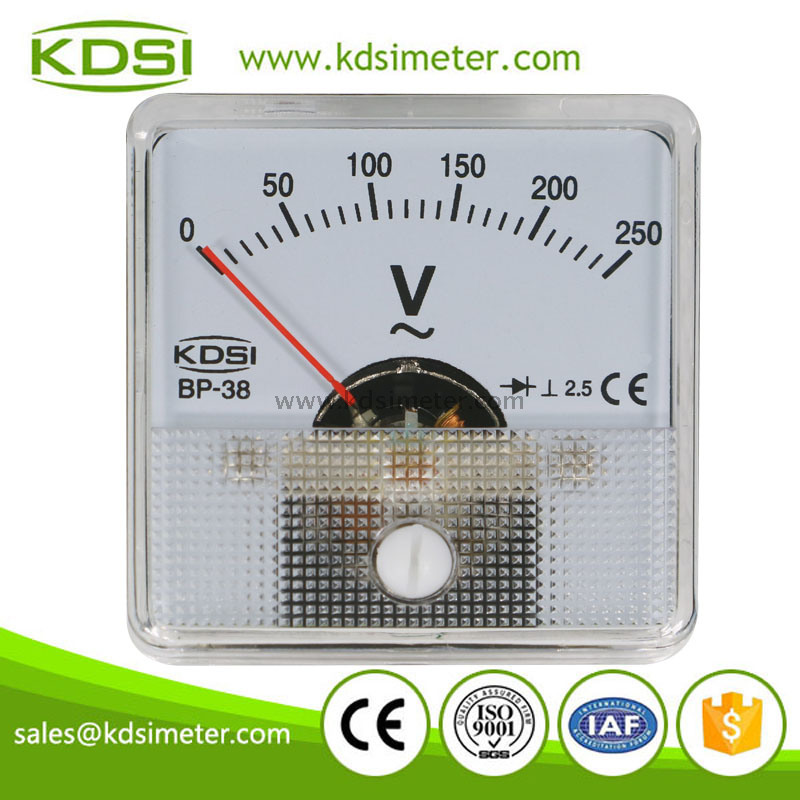

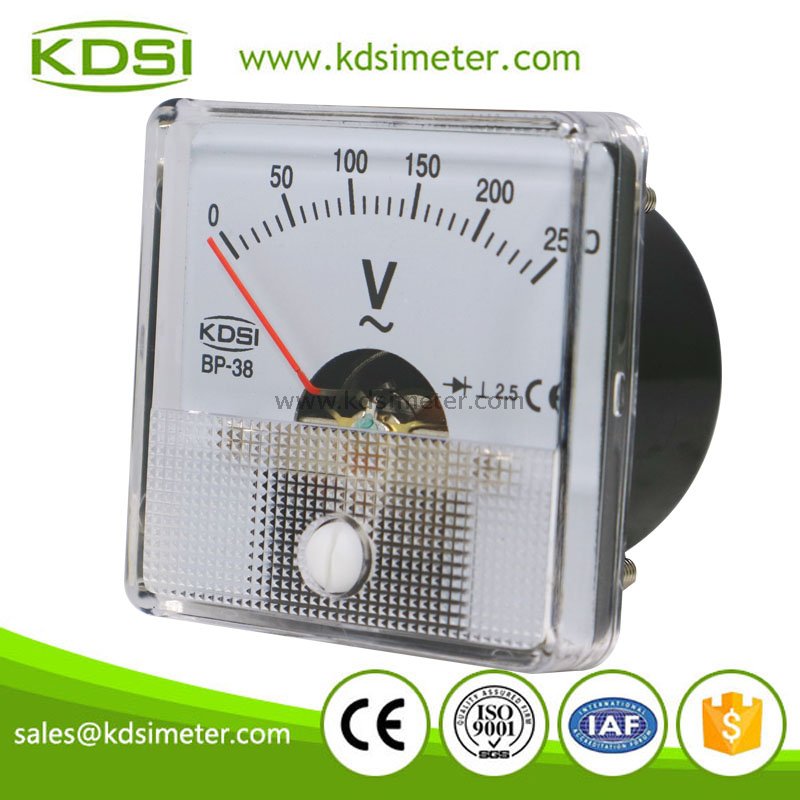

|Model ||BP-38 |
|Front frame ||mm ||45*45 |
|Panelcutout ||mm ||Φ38 |
|Ranges ||uA ||50uA 100uA 150uA 250uA 800uA |
|mA ||4-20mA 1mA 10mA 500mA 800mA |
|A ||1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A |
|For connecting to external shunt ||50mV 60mV 75mV ||10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
|Ranges ||V ||0.5V 1V 10V 25V 50V 100V 250V 500V 600V |
|Ranges || mA ||100mA-800mA Moving Iron type Directly |
|A ||1A-50A Moving Iron type Directly |
**/5A Combined with an external C.T.
**/1A Combined with an external C.T.
|Ranges ||V ||10V-500V Directly |
|KV ||1KV-35KV */100V */110V */120V Combined with an external P.T. |
DC rpm meter
|Ranges || ||0-1800rpm 0-3600 rpm |
|Ranges || ||45-55Hz, 45-65Hz, 55-65Hz / 220V,380V,415V |
Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.
1.4 Product Packaging
Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.
Professional bubble bags inside to prevent vibration during transportation.
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers
