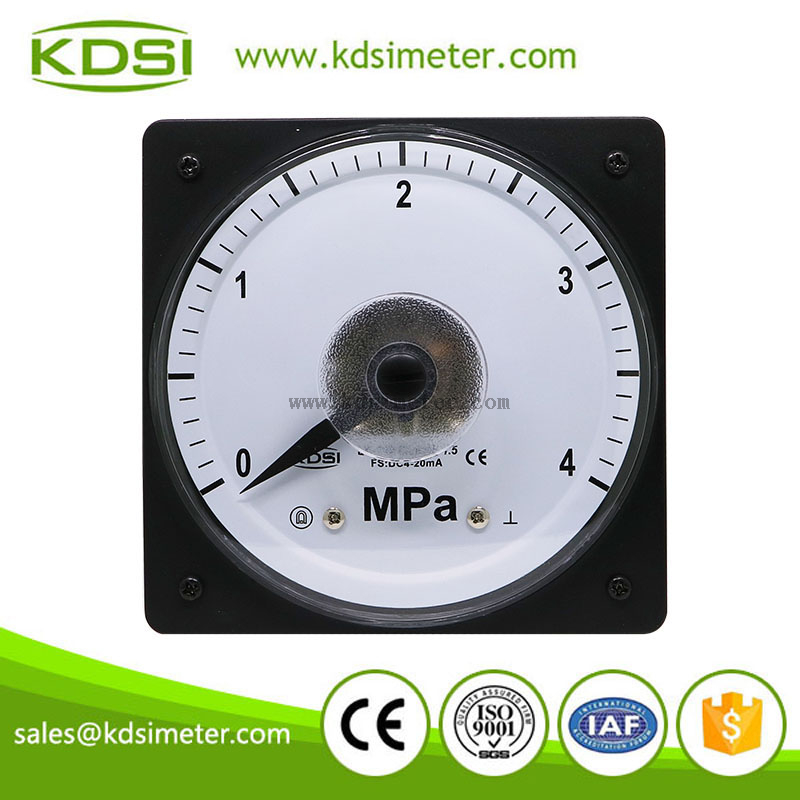

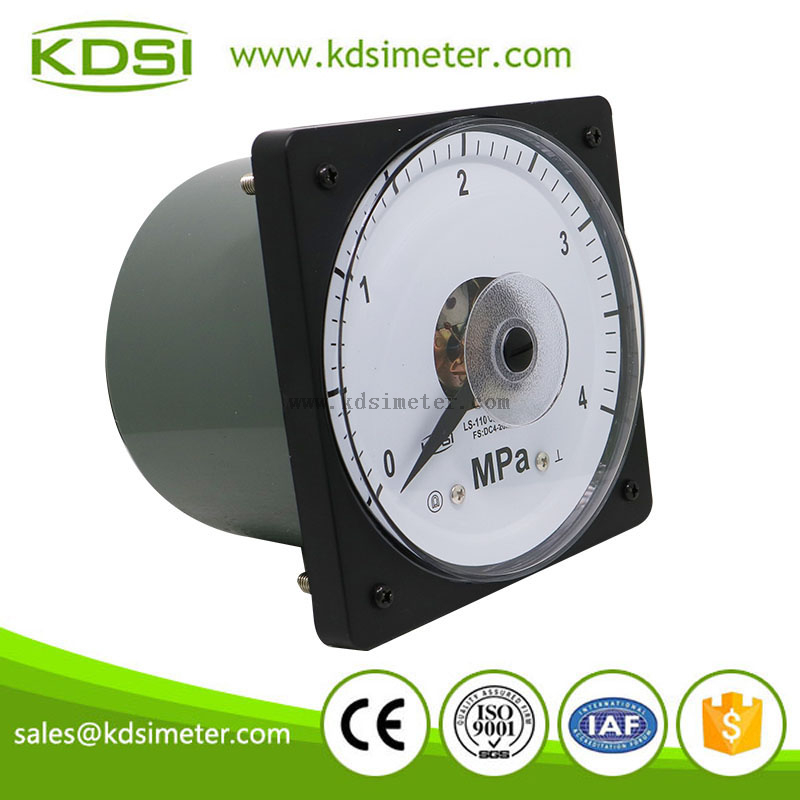

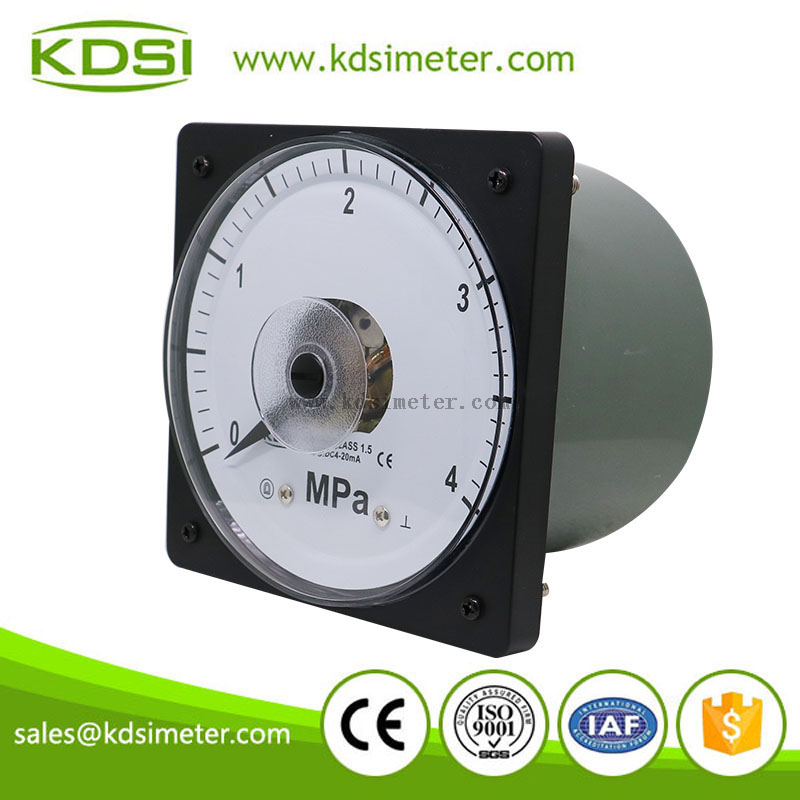

LS-110
KDSI Also can do OEM
9030339000
Model | LS-110 | |||||
AC Current with Recifier | ||||||
Ranges | mA | 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||||
A | 1A 5A 10A 15A 20A | |||||
Combined with an external C.T. | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||||
AC Voltmeter with Recifier | ||||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||||
KV | Combined with an external PT **/100V **/110V | |||||
Model | LS-110 | |||||
DC Current | ||||||
Ranges | uA | 150uA 250uA 500uA 800uA | ||||
mA | 4-20mA 1mA 10mA 500mA 800mA | |||||
A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A | |||||
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | ||||
DC Voltmeter | ||||||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | ||||
Frequency Meters | ||||||
Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20% | ||||||
Frequency Meter | | Model | Measuring Rang | Voltage | ||
| | LS-110 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440v | ||
Power Factor Meters | ||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | ||||||
Power Factor Meter | | Model | Specification | Voltage Current | ||
| | LS-110 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | ||
Power Meters for Active and Reactive Power | ||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5 | ||||||
| | Model | Voltage | Current | ||
Power Meter | | LS-110 | | | ||
Single phase system | | | 100V 220V | 1A 5A | ||
Three phase three wire 3P3W | | | 100V 220V 380V 440V | 1A 5A |
Model | LS-110 | |||||
AC Current with Recifier | ||||||
Ranges | mA | 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||||
A | 1A 5A 10A 15A 20A | |||||
Combined with an external C.T. | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||||
AC Voltmeter with Recifier | ||||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||||
KV | Combined with an external PT **/100V **/110V | |||||
Model | LS-110 | |||||
DC Current | ||||||
Ranges | uA | 150uA 250uA 500uA 800uA | ||||
mA | 4-20mA 1mA 10mA 500mA 800mA | |||||
A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A | |||||
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | ||||
DC Voltmeter | ||||||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | ||||
Frequency Meters | ||||||
Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20% | ||||||
Frequency Meter | | Model | Measuring Rang | Voltage | ||
| | LS-110 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440v | ||
Power Factor Meters | ||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | ||||||
Power Factor Meter | | Model | Specification | Voltage Current | ||
| | LS-110 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | ||
Power Meters for Active and Reactive Power | ||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5 | ||||||
| | Model | Voltage | Current | ||
Power Meter | | LS-110 | | | ||
Single phase system | | | 100V 220V | 1A 5A | ||
Three phase three wire 3P3W | | | 100V 220V 380V 440V | 1A 5A |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
