BE-WSK-303
KDSI Also can do OEM
Product Description ______________________________________________________________

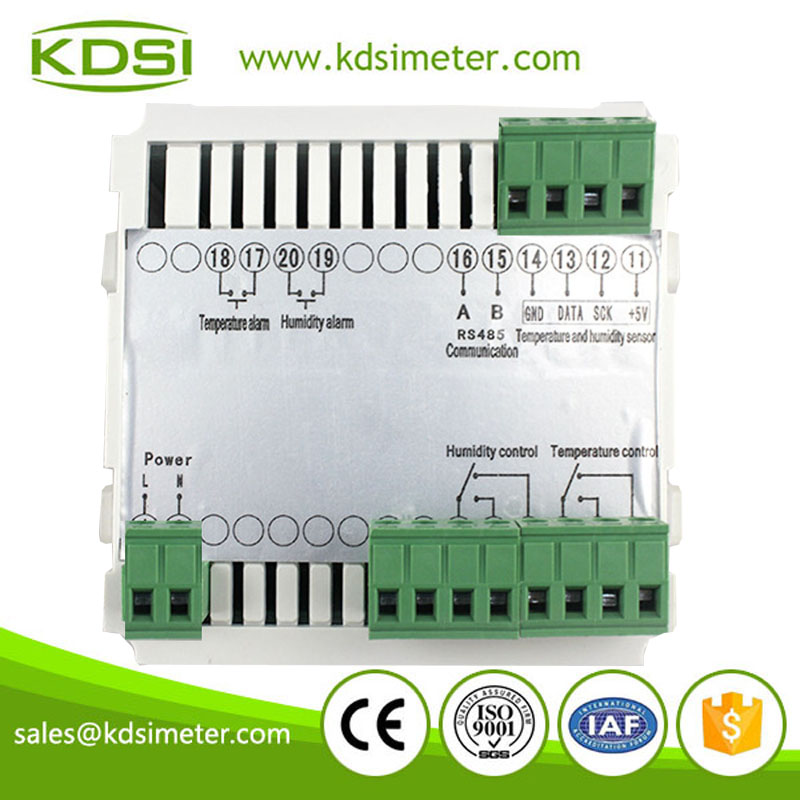

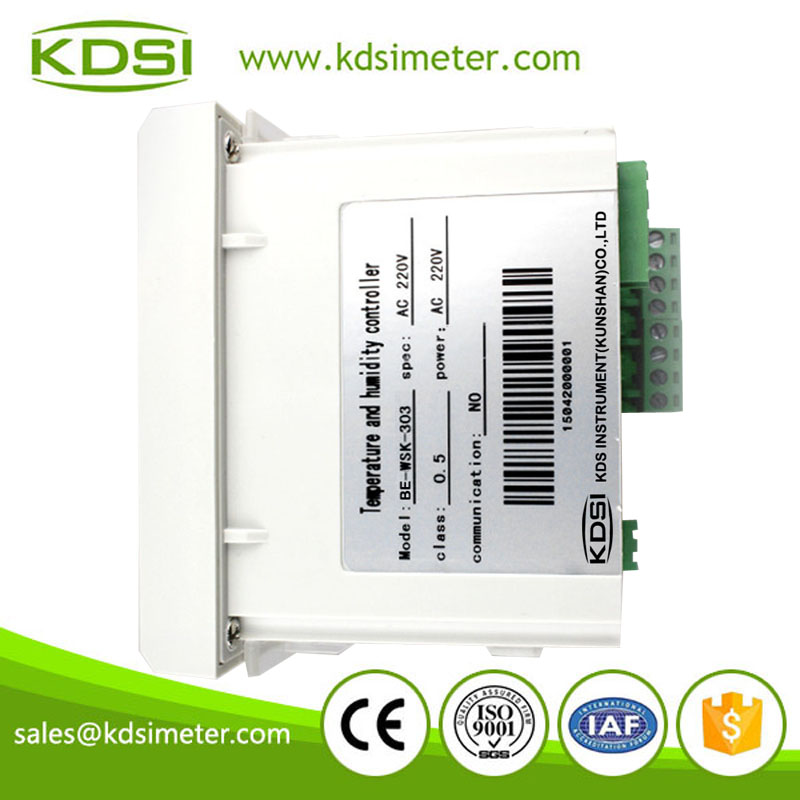

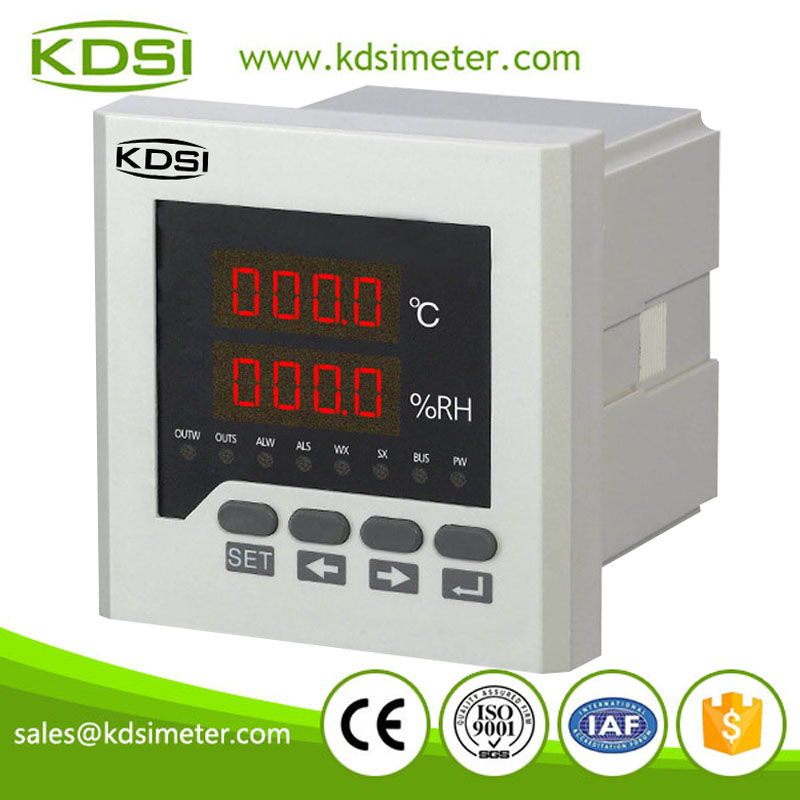

Square type BE-WSK-303 -40-100C 0-100RH digital temperature and humidity controller
Product details | ||
Place of Origin:Jiangsu ,China (Mainland) | Brand Name:KDSI | Model Number:BE-WSK-303 |
Display Type:Digital | Main Technical Index: Supply voltage (default power switch power supply) AC: switching power supply 85V-265V, 50-60Hz AC: transformer 110V, 220V, 380V, 50-60HZ DC: 24V,36V,48V,110V,220V | Accuracy Class: Temperature + 0.5 c Humidity: +5%RH Resolution: 14 Bit Sampling time: 0.5 Sec |
Control mode: Two-position control (hysteresis can be set freely) | Operating Temperature: -10℃~+55℃ | Dimensions:96*96mm |
Control output: Relay Output: contact capacity 250VAC 3A (resistive load) Voltage Pulse Output:0~12V (for solid state relay SSR) | insulation resistance: >50M to (500VDC) dielectric strength: 1500VAC/1 minutes power consumption: <1 OVA environment: 0-50°C,60-85%RH,non-corrosive gases disconnection alarm function | Sensor The temperature and Humidity Sensors are in one case,the microchip is imported from |
High Accuracy: 0.5% | Temperature Range: 40-100C | Humidity Range: 0-100% RH |
Max Distance: 10m | Standard Cable Length: 1.5m | Max length of the sensor cable: 10m |
Application_____________________________________________________________________________________
Product Description ______________________________________________________________
Square type BE-WSK-303 -40-100C 0-100RH digital temperature and humidity controller
Product details | ||
Place of Origin:Jiangsu ,China (Mainland) | Brand Name:KDSI | Model Number:BE-WSK-303 |
Display Type:Digital | Main Technical Index: Supply voltage (default power switch power supply) AC: switching power supply 85V-265V, 50-60Hz AC: transformer 110V, 220V, 380V, 50-60HZ DC: 24V,36V,48V,110V,220V | Accuracy Class: Temperature + 0.5 c Humidity: +5%RH Resolution: 14 Bit Sampling time: 0.5 Sec |
Control mode: Two-position control (hysteresis can be set freely) | Operating Temperature: -10℃~+55℃ | Dimensions:96*96mm |
Control output: Relay Output: contact capacity 250VAC 3A (resistive load) Voltage Pulse Output:0~12V (for solid state relay SSR) | insulation resistance: >50M to (500VDC) dielectric strength: 1500VAC/1 minutes power consumption: <1 OVA environment: 0-50°C,60-85%RH,non-corrosive gases disconnection alarm function | Sensor The temperature and Humidity Sensors are in one case,the microchip is imported from |
High Accuracy: 0.5% | Temperature Range: 40-100C | Humidity Range: 0-100% RH |
Max Distance: 10m | Standard Cable Length: 1.5m | Max length of the sensor cable: 10m |
Application_____________________________________________________________________________________
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
