Quantity: | |
---|---|
BE-48
KDSI Also can do OEM
Welcome to KDS INSTRUMENT(KUNSHAN) Co.,Ltd.
Please clike above to review our home page for more products!!
Or you can contact us from below info:
Sales manager: Jessica
Email: sales3(@)kdsimeter.com
Skype ID: kdsi03
Tel/Whatsapp: 0086 18068059269
Product Description ______________________________________________________________

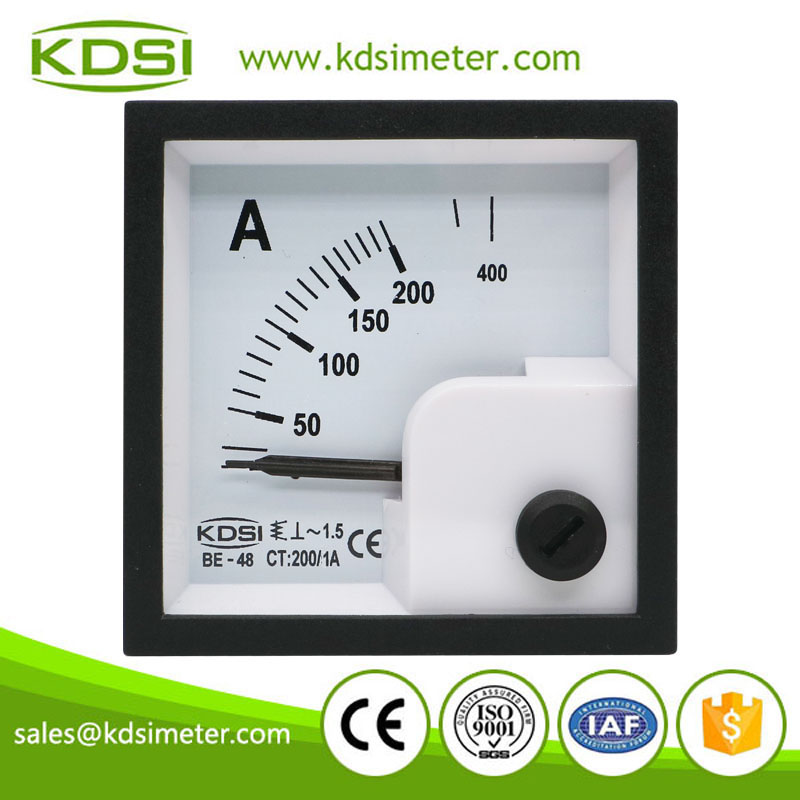

Product Name | Small & High Sensitivity BE-48 AC200/1A Analog AC Panel Mount Ammeter | ||
Type | Ammeter | Service | OEM ODM |
Composition | Glass window | Model | BE-48 |
ABS Resin frame and case | |||
PC glass fiber base mounting fitting included. | |||
Scale Plate | Normally Aluminum Alloy or Customized | Front Frame(mm) | 48*48 |
Features | Zero Adjustment/Aging Test/Anti-static | Panel cutout (mm) | 45*45 |
Operating Position | Normally in vertical position or customized | Color | Customized |
Pointer | Normally Aluminum Alloy or Customized | Accuracy | Class 1.5 |
Overshoot | Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) | Service Condition | -20~+50 degree |
Welcome to KDS INSTRUMENT(KUNSHAN) Co.,Ltd.
Please clike above to review our home page for more products!!
Or you can contact us from below info:
Sales manager: Jessica
Email: sales3(@)kdsimeter.com
Skype ID: kdsi03
Tel/Whatsapp: 0086 18068059269
Product Description ______________________________________________________________
Product Name | Small & High Sensitivity BE-48 AC200/1A Analog AC Panel Mount Ammeter | ||
Type | Ammeter | Service | OEM ODM |
Composition | Glass window | Model | BE-48 |
ABS Resin frame and case | |||
PC glass fiber base mounting fitting included. | |||
Scale Plate | Normally Aluminum Alloy or Customized | Front Frame(mm) | 48*48 |
Features | Zero Adjustment/Aging Test/Anti-static | Panel cutout (mm) | 45*45 |
Operating Position | Normally in vertical position or customized | Color | Customized |
Pointer | Normally Aluminum Alloy or Customized | Accuracy | Class 1.5 |
Overshoot | Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) | Service Condition | -20~+50 degree |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
