BO-52
KDSI Also can do OEM
9030339000
Welcome to KDS INSTRUMENT(KUNSHAN) Co.,Ltd.
Please clike above to review our home page for more products!!
Or you can contact us from below info:
Sales manager: Jessica
Email: sales3(@)kdsimeter.com
Skype ID: kdsi03
Tel/Whatsapp: 0086 18068059269
Composition:
Bakelite cover and case, three stud mounting,
Product Description ______________________________________________________________

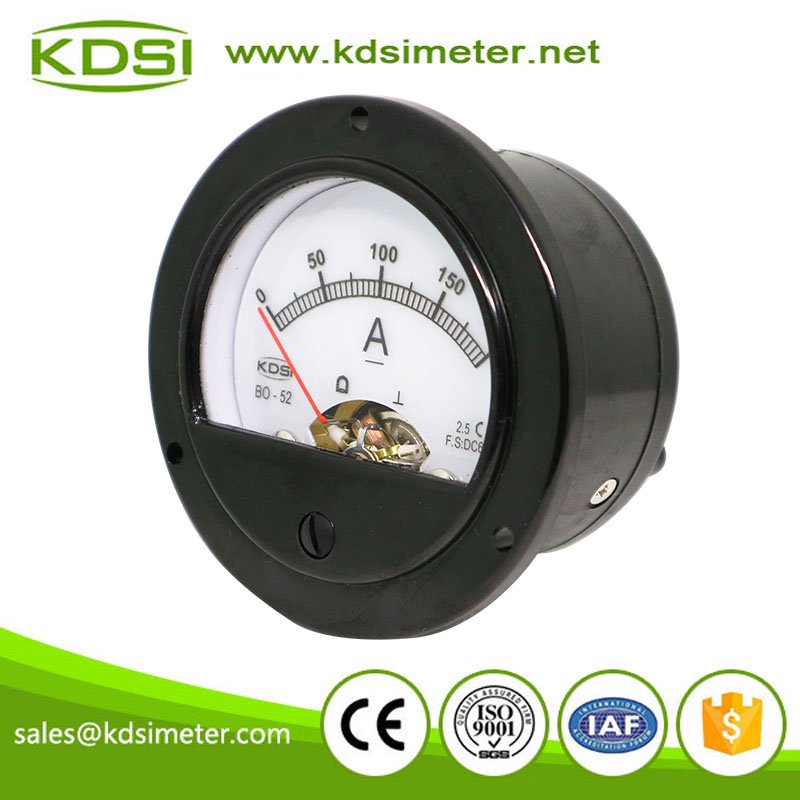

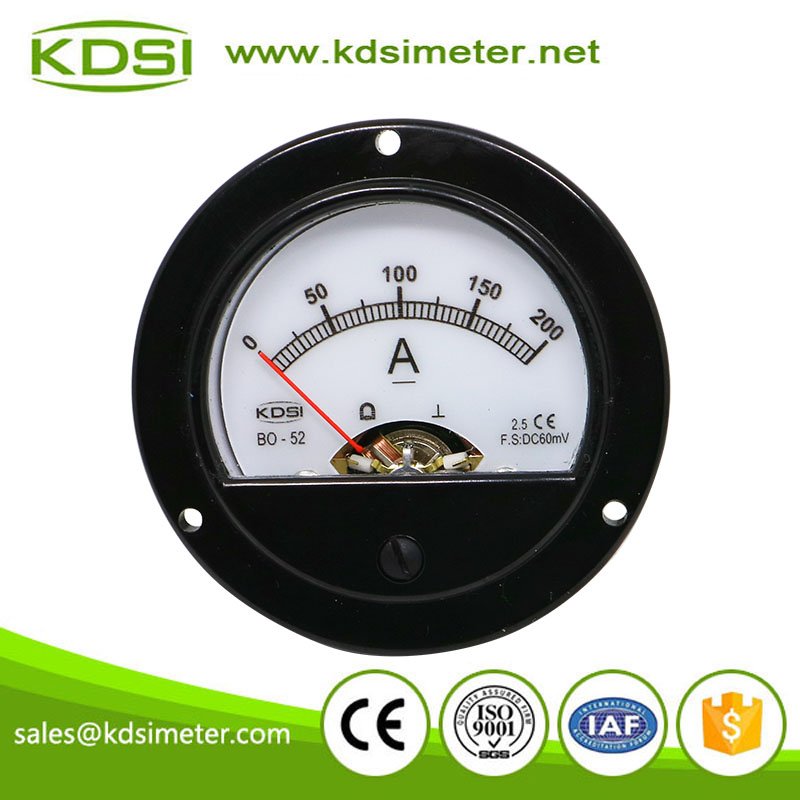

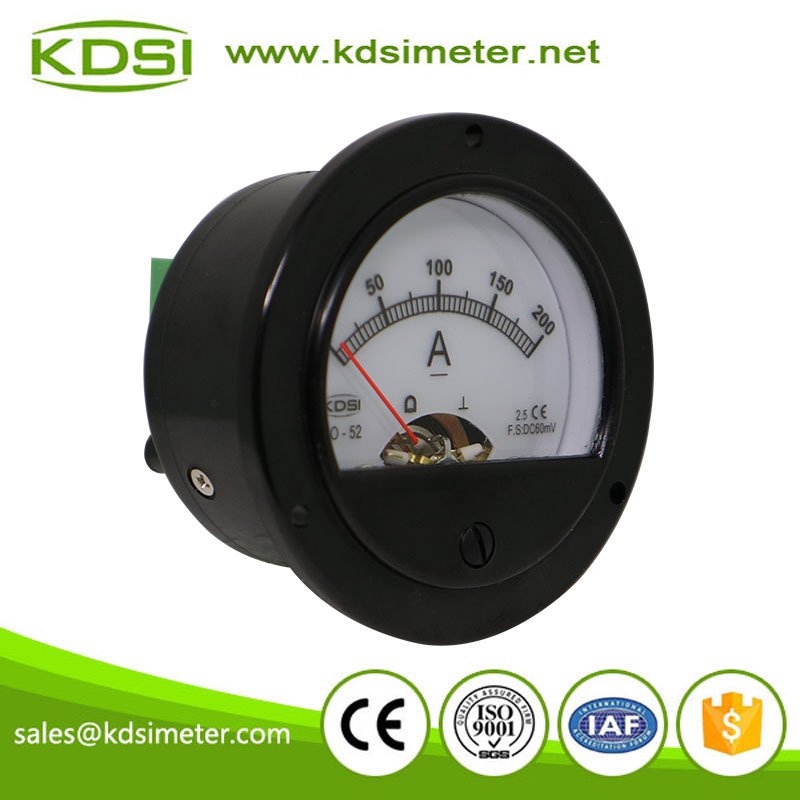

| Product Name | Mini round type BO-52 DC60mV 200A analog panel backlighting ampere meter | ||
| Type | backlighting ampere meter | Service | OEM ODM |
| Composition | Glass window | Model | BO-52 |
| Bakelite cover and case | |||
| three stud mounting | |||
| Scale Plate | Normally Aluminum Alloy or Customized | Front Frame(mm) | DIA.67.6mm |
| Features | Zero Adjustment/Aging Test/Anti-static | Panel cutout (mm) | DIA.55.7mm |
| Operating Position | Normally in vertical position or customized | Color | Customized |
| Pointer | Normally Aluminum Alloy or Customized | Accuracy | Class 2.5 |
| Overshoot | Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) | Service Condition | -20~+50 degree |
| Model | BO-52 | |
| DC Current | ||
| Ranges | uA | 50uA 100uA 150uA 250uA 800uA |
| mA | 4-20mA 1mA 10mA 500mA 800mA | |
| A | 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A | |
| For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
| DC Voltmeter | ||
| Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V |
Our Company _________________________________________________________________________________
KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.
Six Advantages_______________________________________________________________________________
1. BRAND 20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.
2. QUALITY All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.
3. APPLICATIONS Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.
4. LEAD TIME Short lead time, only approximately three days for normal specifications.
5. PRICE Cost-effective ,with the lowest price compared with those in the same quality.
6. SERVICES Our products can be tailor-made for our customers, with the lifelong service available free of charge
