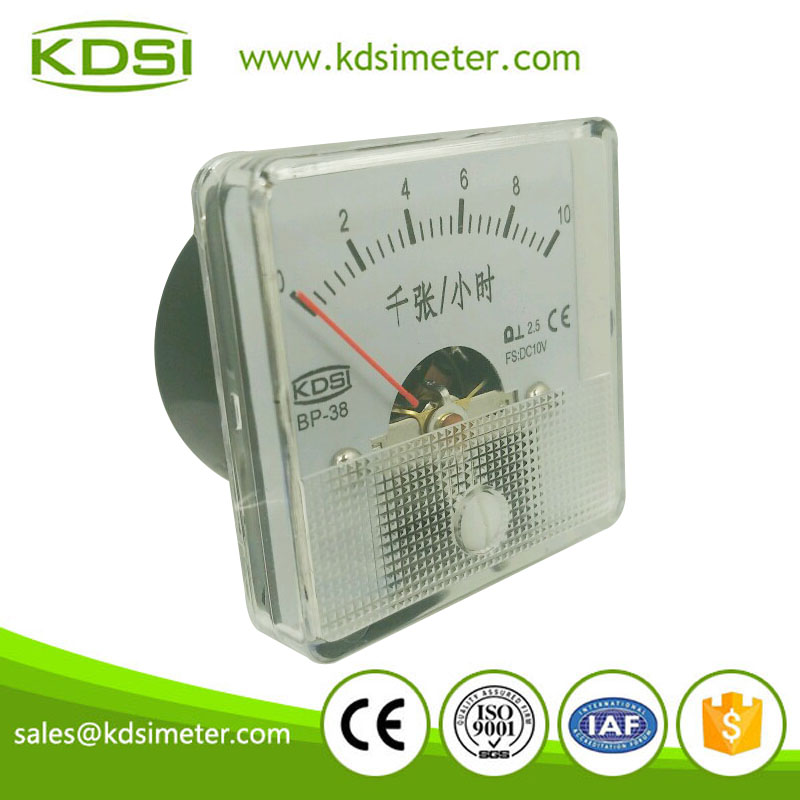

Mini BP-38 DC10V thousand pages per hour meter

BP-38 45*45 DC Ammeter CE approved
Mini BP-38 DC10V thousand pages per hour meter
Measuring the DC current with linear scale,moving coil movement
The accuracy class is 1.5 or 2.5

Quantity:



Inquire Add to Basket

Model:
BP-38
Brand:
KDSI Also can do OEM

Mini BP-38 DC10V thousand pages per hour meter

1.1Product Description

Composition:
PC Front and Bakelite case, Four stud mounting,

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black case, white scale plate.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model		BP-38
Front frame	mm	45*45
Panelcutout	mm	Φ38
DC Current
Ranges	uA	50uA 100uA 150uA 250uA 800uA
	mA	4-20mA 1mA 10mA 500mA 800mA
	A	1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt	50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltage
Ranges	V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Ac Ammeter
Ranges	mA	100mA-800mA Moving Iron type Directly
Ranges	A	1A-50A Moving Iron type Directly /5A Combined with an external C.T. /1A Combined with an external C.T.
AC Voltmeter
Ranges	V	10V-500V Directly
Ranges	KV	1KV-35KV /100V /110V */120V Combined with an external P.T.
DC rpm meter
Ranges		0-1800rpm 0-3600 rpm
HZ meter
Ranges		45-55Hz, 45-65Hz, 55-65Hz / 220V,380V,415V

1.2Dimensioned drawing

BP-38 DC10V thousand pages per hour meter-1

BP-38 DC10V thousand pages per hour meter-2

BP-38 DC10V thousand pages per hour meter

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Instant Flexible SHUNT BE-50mV/60mV/75mV 300A With Base DC Current Ammeter Manganin Shunt

Square Type BP-60N AC25V 100spm Rectifier Ac Analog Voltage Spm Panel Meter

High Quality BP-100S AC250/5A Amp Panel AC Analog Ammeter

Hot Sales BP-45 AC100/5A 3times Overload Double Pointer Analog Amp Current Panel Meter

Portable Precise BE-96W DC10V 150A Wide Angle Analog DC Current Panel Meter

Easy Operation BP-45 DC5V Analog DC Super-mini Panel Mount Voltmeter

Portable Precise BP-45 AC150/5A 3times Overload Double Pointer Analog Ampere Panel Meter

Small & High Sensitivity BP-45 AC400/5A 3times Overload Double Pointer Analog Amp Panel Meter

High Quality BP-45 DC100V DC Super Mini Analog Panel Mount Voltmeter

CE Certificate BP-100S DC75mV 1500A DC Amp Panel Analog Current Meter

30 Years Professional Manufacturer BP-100S AC400/1A Double Pointer AC Analog Panel Current Meter

High Quality Professional BP-100S AC300/1A Double Pointer AC Analog Amp Panel Meter

Portable Precise BP-100S AC500/5A AC Analog Current Amp Panel Meter

KDSI Electronic Apparatus BP-100S DC100mA DC Panel Analog Amp Meter

Durable In Use BP-100S DC+-60mV +-200A DC Panel Analog Ampere Meter

Easy InstallationBP-45 DC100uA Analog DC Microampere Panel Meter

KDSI Electronic Apparatus BP-670 DC60mV 400A DC Panel Analog Volt Ampere Meter

Industrial Universal BP-15 DC+-20mA Color Scale Analog Mini Thin Edgewise Amp Panel Audio VU meter

High Quality BP-80 DC5A Analog DC Panel Mount Ammeter

Portable Precise BO-65 AC250V Analog Round Panel AC Volt Meter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
