Quantity: | |
---|---|

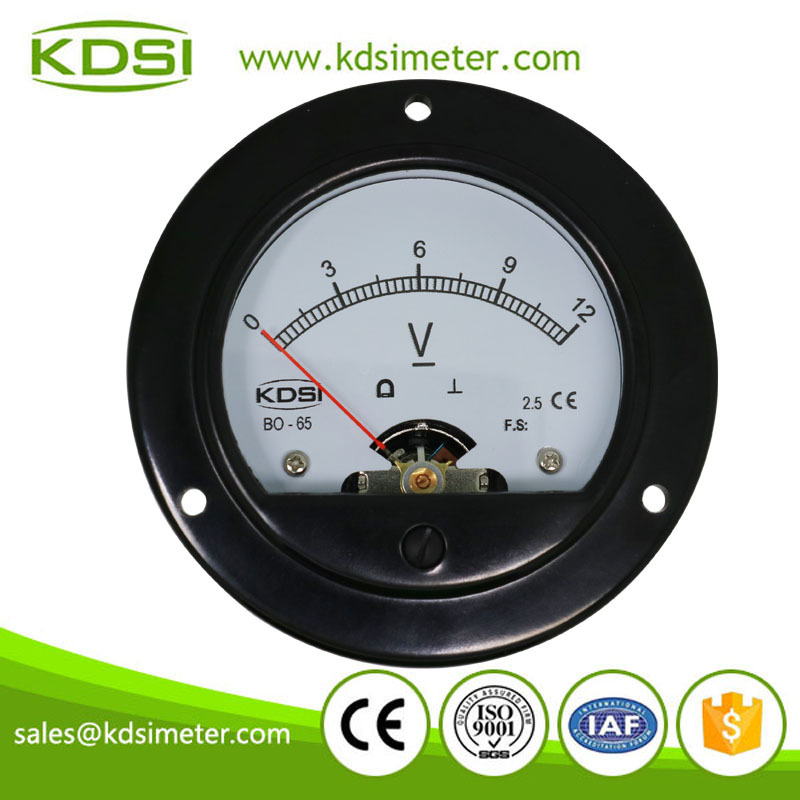

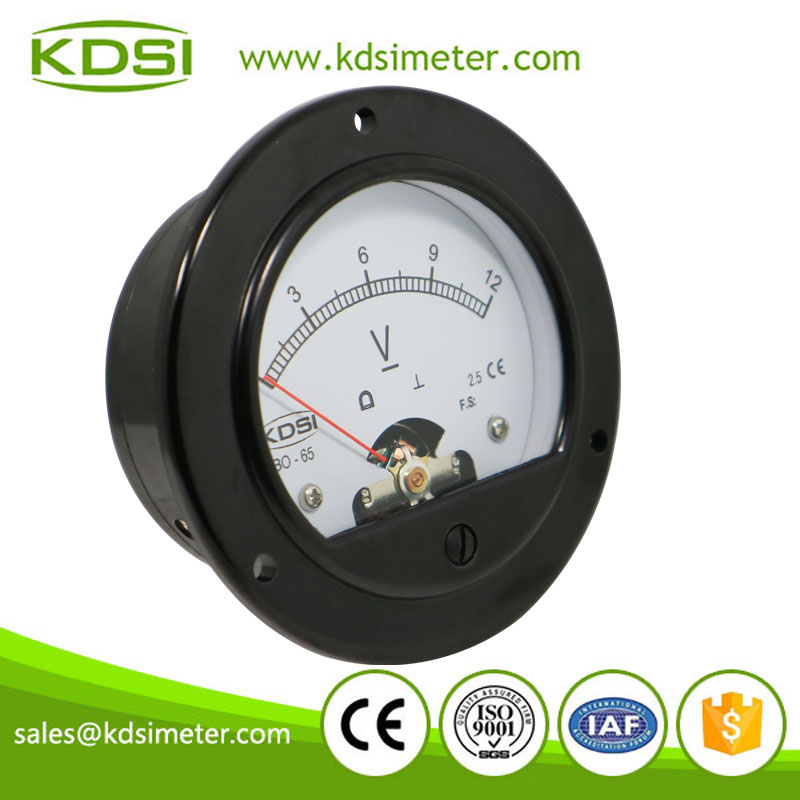

BO-65
KDSI Also can do OEM
9030339000
Composition:
Bakelite cover and case, three stud mounting,
Scale Plate:
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.
Color:
Black case and cover, Glass window ,white scale plate.
Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.
Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.
Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.
Accuracy:
Class1.5, 2.5;
Service condition:
-20~+50 degree;
Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.
Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.
Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.
The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.
Round type | ||
AC Ammeter and Voltmeter | ||
Moving Iron Movement | ||
Model | BO-65 | |
AC current | ||
Ranges | mA | 100mA 150mA 200mA 400mA 500mA 600mA 800mA |
A | 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A | |
Combined with an external C.T. | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized |
| X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized |
The common type is no overload,1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||
AC voltage | ||
Ranges | V | 10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V |
KV | Combined with an external PT **/100V **/110V **/120V | |
Round type | ||
DC Ammeter and Voltmeter | ||
Moving Coil Movement | ||
Model | BO-65 | |
DC Current | ||
Ranges | uA | 50uA 100uA 150uA 250uA 800uA |
mA | 4-20mA 1mA 10mA 500mA 800mA | |
A | 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A | |
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
DC Voltmeter | ||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V |
Composition:
Bakelite cover and case, three stud mounting,
Scale Plate:
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.
Color:
Black case and cover, Glass window ,white scale plate.
Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.
Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.
Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.
Accuracy:
Class1.5, 2.5;
Service condition:
-20~+50 degree;
Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.
Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.
Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.
The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.
Round type | ||
AC Ammeter and Voltmeter | ||
Moving Iron Movement | ||
Model | BO-65 | |
AC current | ||
Ranges | mA | 100mA 150mA 200mA 400mA 500mA 600mA 800mA |
A | 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A | |
Combined with an external C.T. | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized |
| X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized |
The common type is no overload,1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||
AC voltage | ||
Ranges | V | 10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V |
KV | Combined with an external PT **/100V **/110V **/120V | |
Round type | ||
DC Ammeter and Voltmeter | ||
Moving Coil Movement | ||
Model | BO-65 | |
DC Current | ||
Ranges | uA | 50uA 100uA 150uA 250uA 800uA |
mA | 4-20mA 1mA 10mA 500mA 800mA | |
A | 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A | |
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
DC Voltmeter | ||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
