BP-60
KDSI Also can do OEM
9030339000
Product Description ______________________________________________________________

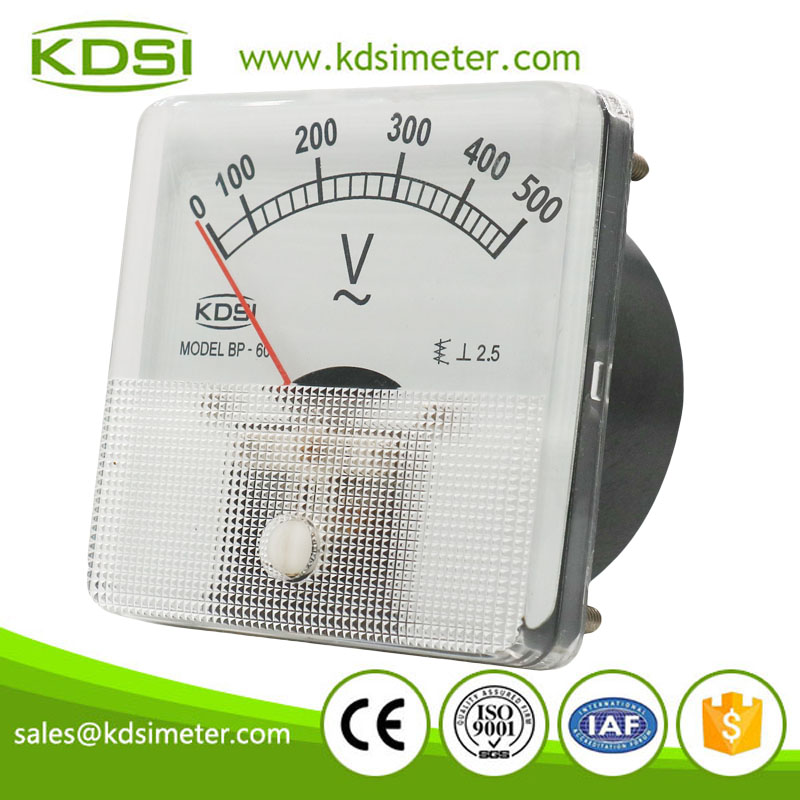

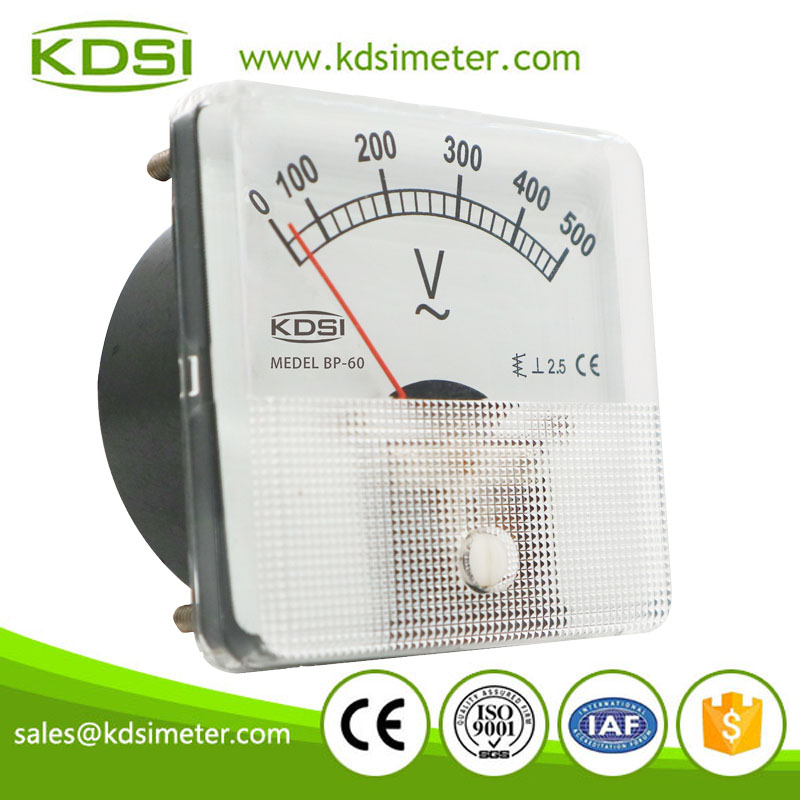

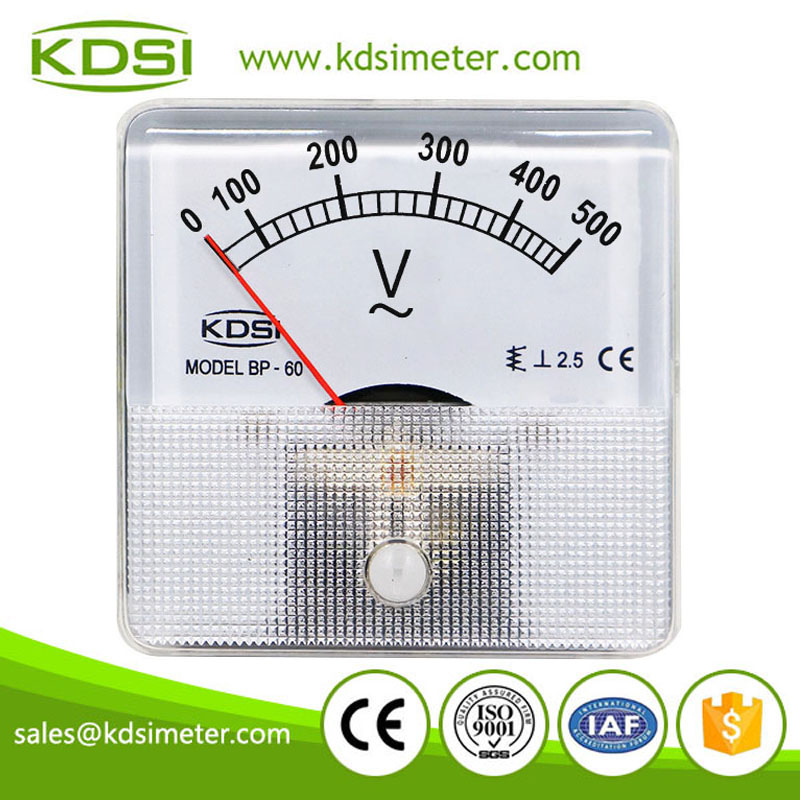

| Product Name | KDSI electronic apparatus BP-60 AC500V direct analog ac panel mount voltmeter | ||
| Type | voltage meter | Service | OEM ODM |
| Composition | PC Front | Model | BP-60 |
| Bakelite case | |||
Four stud mounting | |||
| Scale Plate | Normally Aluminum Alloy or Customized | Front Frame(mm) | 60*60 |
| Features | Zero Adjustment/Aging Test/Anti-static | Panel cutout (mm) | DIA.45.5 |
| Operating Position | Normally in vertical position or customized | Color | Customized |
| Pointer | Normally Aluminum Alloy or Customized | Accuracy | Class 1.5 |
| Overshoot | Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) | Service Condition | -20~+50 degree |
Our Company ________________________________________________________________________________
KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.
