KDSI direct sales high quality digital ammeter

Share to:

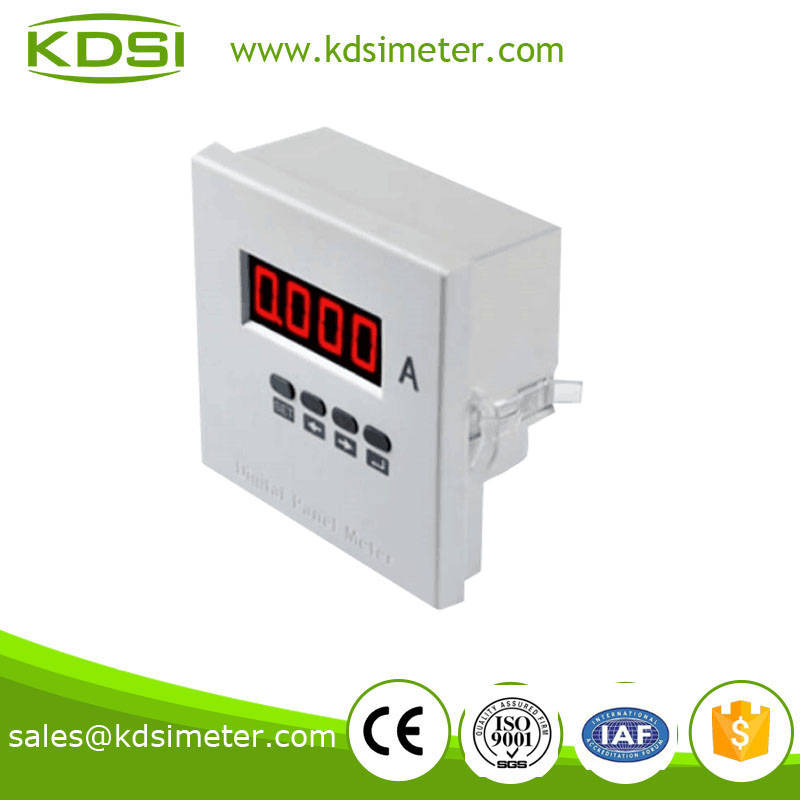

KDSI direct sales high quality digital ammeter

KDSI direct sales high quality digital ammeter
elegant appearance,digital readout

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM

KDSI direct sales high quality digital ammeter

1.1Product Description

◆Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

◆Technical data

Technical parameters		Value
input	Normal value	Voltage :300V、500V，Current :1A、5A，(Or ordered by customer)
	Overload	Current：continual 1.2times，instaneous10times/1s； Voltage：continual1.2times，instaneous 2times/1s.
	Frequency	45～65Hz
Accuracy class		0.5
Display		LED display，range in：0～9999
Power supply	Voltage range	AC 220V
Power supply	Power consumption	<5VA
Insulation resistance		≥100MΩ
Isolation voltage		Between power supply/input/output 2kV/1min（rms）
MTBF		≥50000h
Environment	Temperature	Work：-10～55℃，Storage：-25～+70℃
	Humidity	≤93%RH，In the place without dew and corrosive gas
	Altitude	≤2000m

◆ Programming explain

There are three buttons in meters,such as " SET","←","→" 、" caozuomianban huiche.jpg

".
"←" ： Menu items on the move or incremental value. .
"→" : Menu item down or diminishing value .
"SET": Menu Editor or the value of bit shifted to the right (in the digital input mode) .
caozuomianban huiche.jpg

" "： Used for menu moving backward, the parameter is set back off and save your settings .

Note: “ SET ” :the value of bit shifted to the right, in the password input mode or CT 、PT value input mode

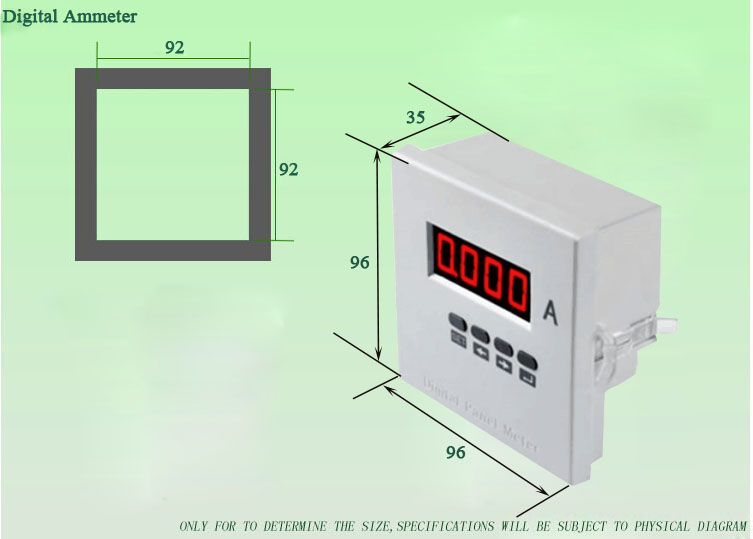

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

High quality professional BE-96X48AA AC2000/5A single phase ac digital display ammeter

KDSI BE-AI AC5A power DC24V output DC4-20mA single phase current transducer

Easy installation BE-96x48AA AC600/5A single phase electric panel mounted digital ammeter

Portable precise BE-48AA AC5A single phase led digital ac ampere current meter

Easy installation 96*48 BE-96x48 single phase AC current meter digital ampere meter

Square type 72x72 panel meter single phase ac digital ampere meter

KDSI electronic apparatus 96*96 single phase BE-96 AA digital ac ammeter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
