Industrial universal BE-72 3P3W 6Mvar 35-0.1kV 400-5A panel analog reactive power meter

moving coil 72*72mm Power Meter CE approved
Industrial universal BE-72 3P3W 6Mvar 35-0.1kV 400-5A panel analog reactive power meter
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks,with balanced or unbalanced load.
Quantity:
  • BE-72

  • KDSI Also can do OEM

Industrial universal BE-72 3P3W 6Mvar 35-0.1kV 400-5A panel analog  reactive power meter


Welcome to KDS INSTRUMENT(KUNSHAN) Co.,Ltd.

Please clike above to review our home page for more products!!
Or you can contact us from below info:

Sales manager: Jessica

Email:  sales3(@)kdsimeter.com

Skype ID: kdsi03

Tel/Wechat: 0086 18068059269




1.1Product Description

 Product  Description ______________________________________________________________

Product Name  Industrial universal BE-72 3P3W 6Mvar 35-0.1kV 400-5A panel analog  reactive power meter
Type Panel power meter Service OEM ODM
Composition Glass window Model BE-72
ABS Resin frame and case

PC glass fiber base mounting fitting included

Scale Plate Normally Aluminum Alloy or Customized Front Frame(mm) 72*72mm
Features Zero Adjustment/Aging Test/Anti-static Panel cutout (mm) 68*68mm
Operating Position Normally in vertical position or customized Color Customized
Pointer Normally Aluminum Alloy or Customized Accuracy Class 1.5
Overshoot Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized) Service Condition

-20~+50 degree

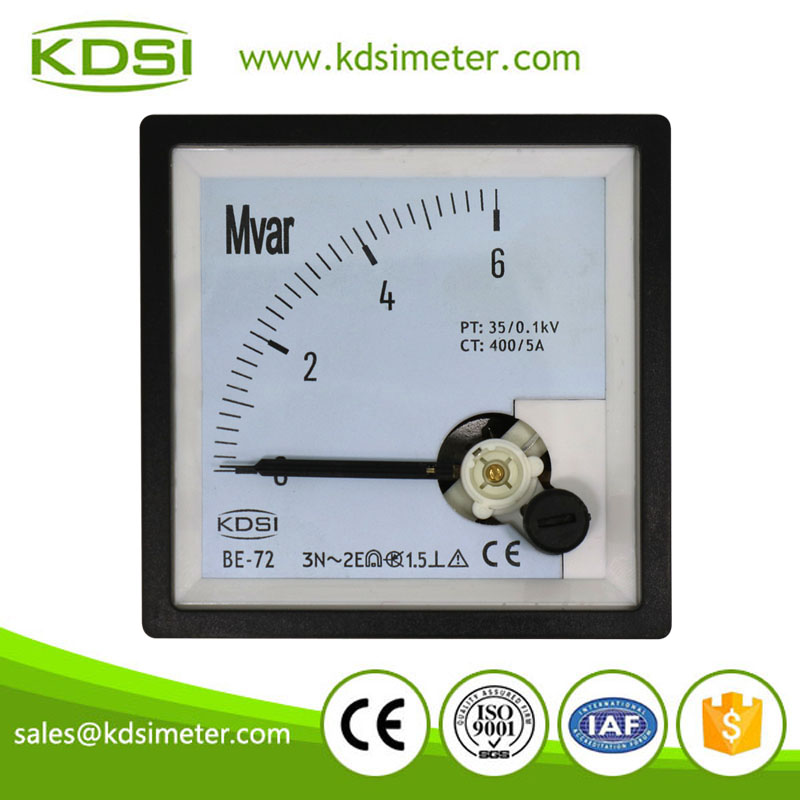

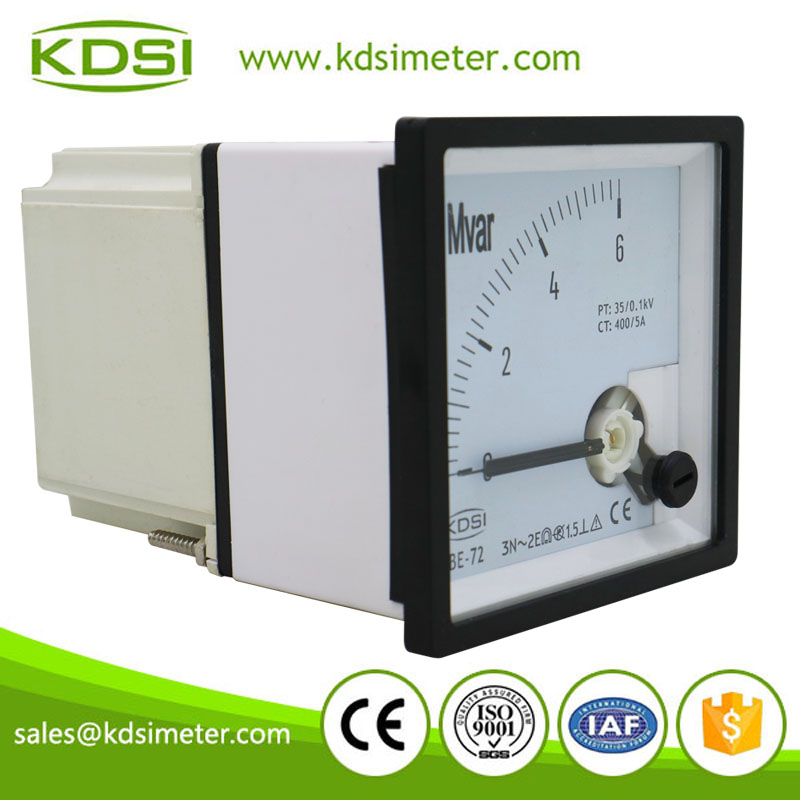

BE-72 3P3W 6Mvar 35-0.1kV 400-5A reactive power meter BE-72 3P3W 6Mvar 35-0.1kV 400-5A reactive power meter-1 BE-72 3P3W 6Mvar 35-0.1kV 400-5A reactive power meter-2.jpg

1.2Dimensioned drawing

BE-72 Dimensioned drawing

 Our Company ________________________________________________________________________________

KDS INSTRUMENT (KUNSHAN) CO., LTD. (“KDSI”) is a manufacturer specializing in production of power distribution panel mounted instruments. The main products made by KDSI include various types of AC and DC voltmeter, ammeter, frequency meter, power meter and power factor meter; a variety of digital display electrical meters, smart control instruments, multi-functional meters for power grid, current transformers and shunts; and various kinds of instrument parts, plastic injection and bakelite molding. The company has a team of intermediate & senior technicians and engineers who have long engaged in the instrument profession. The company has implemented the computerized management system and introduced advanced digital standard meters as reference in the production.



Instant flexible BE-72 3P3W 15kW 440V 40/5A analog panel power meter

Instant flexible BE-72 3P3W 15kW 440V 40/5A analog panel power meter

 Six Advantages_______________________________________________________________________________

1. BRAND       20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.

2. QUALITY   All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.

3. APPLICATIONS  Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.

4. LEAD TIME   Short lead time, only approximately three days for normal specifications.

5. PRICE            Cost-effective ,with the lowest price compared with those in the same quality.

6. SERVICES     Our products can be tailor-made for our customers, with the lifelong service available free of charge


1.3Product Application

Application_____________________________________________________________________________________



1.4 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

仓储
  Neat warehouse and clean production line



1.6 Our Customer

客户21
客户拼21

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error
生产设备21



TNT EMS FEDEX UPS DHL ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line
生产线实拍-21

Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
