Industrial universal BE-60IICT current transformer for energy meter

Industrial universal BE-60IICT current transformer for energy meter
Insulation class:E(120 °C max)
Ambient temperature: -20°C~ +45°C( +65°C)
Storage temperature: -50°C~ +80°C
Test voltage:4KV 50Hz 1min
Operating frequency:50hz-60hz
Rated secondary current:5 or 1 A
Rated burden:1, 1.5, 2.5, 3.75, 5, 7.5, 10, 12.5, 15, 20, 30, 45, 60VA
Quantity:
  • BE-60II CT

  • KDSI Also can do OEM

  • 8504311000

Industrial universal BE-60IICT current transformer for energy meter

1.1Product Description

1,The Current Transformers are made according to IEC 44-1,BS398,DIN42600 standards
2,All case are made of non-combustible plastic material according to UL-94V0.
3,Insulation class:E(120 °C max)
4,Ambient temperature: -20°C~ +45°C( +65°C)
5,Storage temperature: -50°C~ +80°C
6,Test voltage:4KV 50Hz 1min
7, Operating frequency:50hz-60hz
8,Rated secondary current:5 or 1 A
9,Rated burden:1, 1.5, 2.5, 3.75, 5, 7.5, 10, 12.5, 15, 20, 30, 45, 60VA

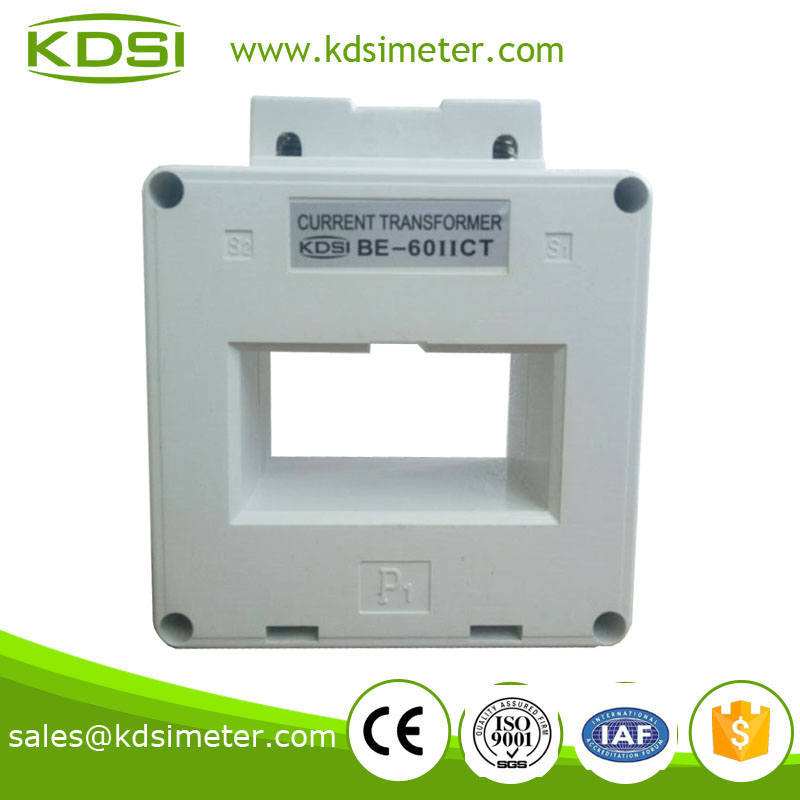

 Current transformer 60IICT

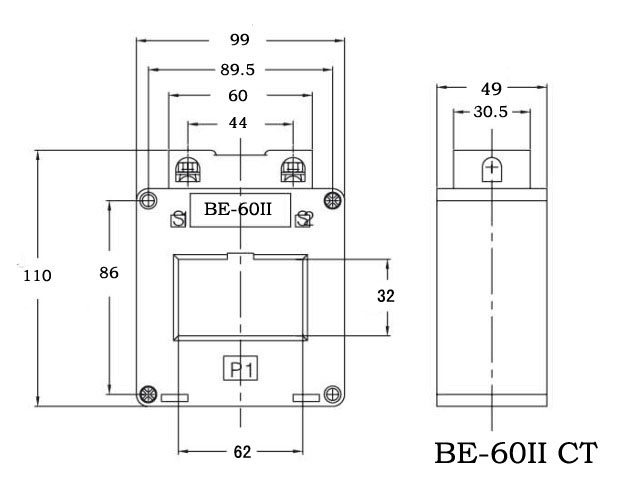

BE-60II








1.2Product Application


1.3 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.4 Professional Storage

  Neat warehouse and clean production line

1.5 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT EMS FEDEX UPS DHL ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line

Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
