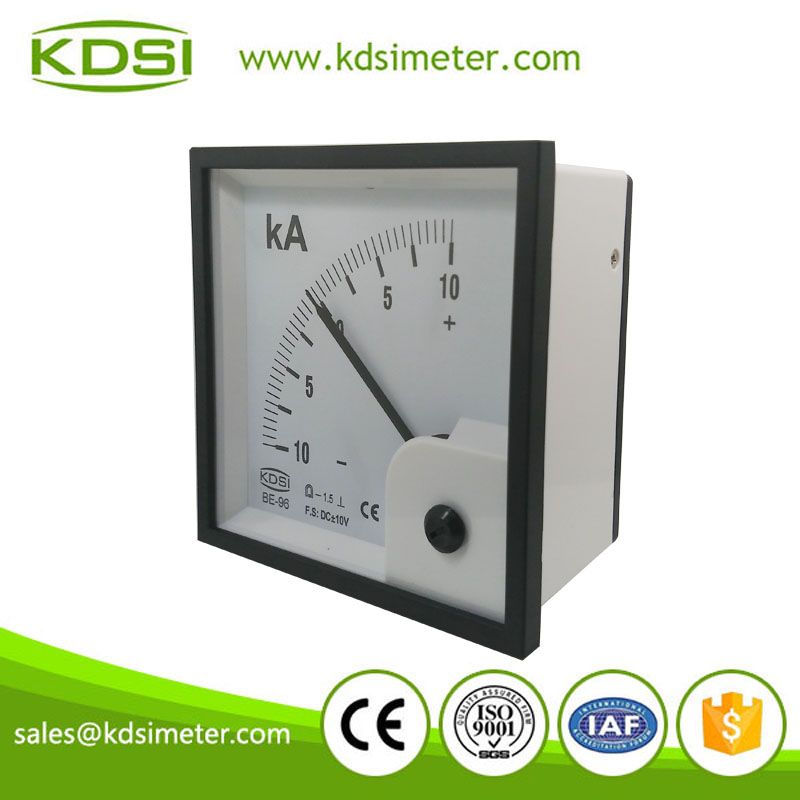

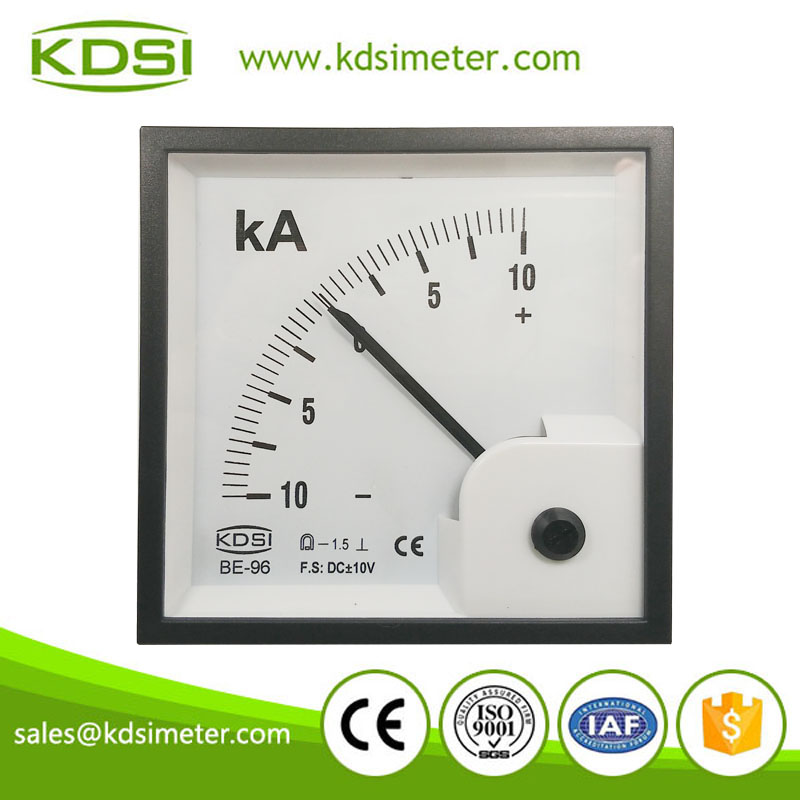

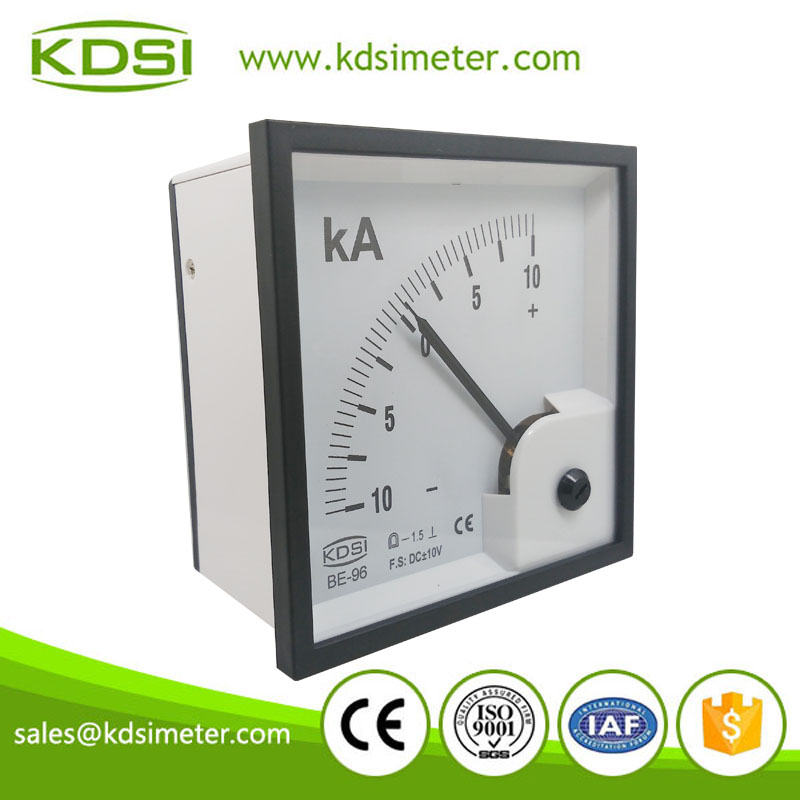

BE-96
KDSI Also can do OEM
9030339000
| Model | BE-96 | BE-72 | BE-48 | |
| Front frame | mm | 96*96 | 72*72 | 48*48 |
| Panelcutout | mm | 91*91 | 68*68 | 45*45 |
| AC current | ||||
| Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
| A | 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A | |||
| Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
| X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
| The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
| AC voltage | ||||
| Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
| KV | Combined with an external PT **/100V **/110V **/120V | |||
| Model | BE-96 | BE-72 | BE-48 | |
| Front frame | mm | 96*96 | 72*72 | 48*48 |
| Panelcutout | mm | 91*91 | 68*68 | 45*45 |
| AC Current with Recifier | ||||
| Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
| A | 1A 5A 10A 15A 20A 25A 30A | |||
| Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
| X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
| The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
| AC Voltmeter with Recifier | ||||
| Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
| KV | Combined with an external PT **/100V **/110V **/120V | |||
| Model | BE-96 | BE-72 | BE-48 | ||||
| Front frame | mm | 96*96 | 72*72 | 48*48 | |||
| Panelcutout | mm | 91*91 | 68*68 | 45*45 | |||
| DC current | |||||||
| Ranges | uA | 50uA 100uA 150uA 250uA 800uA | |||||
| mA | 4-20mA 1mA 10mA 500mA 800mA | ||||||
| A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A | ||||||
| For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | |||||
| DC Voltmeter | |||||||
| Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | |||||
| Maximun Demand Ammeter | |||||||
| With bimetal movement and thermal delayed indicator for measuring the maximum mean load during a period of 8,15 minutes, eats red maximum pointer. Scale compressed at the beginning, convenient reading from 25% OF full scale deflection. Accruacy of maximum load indication +-3% | |||||||
| Maximum Demand Indicator | Model | Current | Response time / Real time | ||||
| BE-96 BE-72 | 1A or 5A | 8min 15min / 8min | |||||
| Frequency Meters/Frequency Meter with Reeds | |||||||
| Measuring frequency ranging from 45-65Hz , Moving Coil movement. The accuracy class is 2.5. Voltage Fluctuation Allowance:+-20% Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz. | |||||||
| Frequency Meter | Model | Measuring Rang | Voltage | ||||
| Pointer | BE-96 BE-72 BE-48 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440V | ||||
| Vibrating | BE-96 BE-72 | 45-55Hz 47-53Hz | 100V,220V,380V,440V | ||||
| Power Factor Meters | |||||||
| Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | |||||||
| Power Factor Meter | Model | Specification | Voltage Current | ||||
| BE-96 BE-72 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | |||||
| Power Meters for Active and Reactive Power | |||||||
| Analog panel meter composed of a coremagnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5. | |||||||
| Power Meter | Model | Voltage | Current | ||||
| BE-96 BE-72 | | | |||||
| Single phase system | | 100V 220V | 1A 5A | ||||
| Three phase three wire 3P3W | | 100V 220V 380V 440V | 1A 5A | ||||
| Three phase four wire 3P4W | | 220(380V) 230(400V) 240(415V) | 1A 5A | ||||
