High quality professional BE-96W DC+-60mV +-100A portable current meter

moving coil 96*96 DC Ammeter CE approved
High quality professional BE-96W DC+-60mV +-100A portable current meter
Measuring the DC current with linear scale.Moving coil movement.
The accuracy class is 1.5
Quantity:
  • BE-96W

  • KDSI Also can do OEM

  • 9030339000

High quality professional BE-96W DC+-60mV +-100A portable current meter

1.1Product Description

Composition:
Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate:
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black base and frame , white scale plate and meter body.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
BE-96W A/V-Class 1.5
BE-96W COSΦ-4 in phase angle
BE-96W HZ-Class 1.5
FULL SCALE DEFLECTION:250

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

Meters with Auxiliary Lighting
In order to read the indicating values in darkness,KDSI provides Meters with lighting functions.Power can be AC/DC:12V,24V,110V.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.




Model BE-96W
Front frame mm 96*96
Panelcutout mm 91*91
AC current Rectifier
Ranges A 1A-5A
>5A Combined with an external CT **/5A
AC voltage Rectifier
Ranges V 150V-600V
>600V Combined with an external PT **/150V
DC current
Ranges uA-A 500uA-30A
>30A connected to external shunt **/50mV
DC Voltmeter
Ranges V 30V-300V
>300V connected to external Multiplier **/1mA
Power Meters
For any rating other than listed above,use external Current Transformer and/or external Potential transformer with a 110/5A instrument.
Power Meter Model Voltage Current
BE-96W BE-96W 110V,220V,380V,500V 1A,5A
COS Meters
For any rating other than listed above,use external Potential transformer with a 110/5A instrument.
COS Meter Model Voltage Current
BE-96W BE-96W 110V,220V,380V,440V 1A,5A
Frequency Meters
For a Voltage rating higher than above,use an external Potential transformer with a 1110V instrument.
Frequency Meter Model Voltage
BE-96W BE-96W 110V,220V,380V,440V
Meters with Auxiliary Lighting
In order to read the indicating values in darkness,KDSI provides Meters with lighting functions.Power can be AC/DC:12V,24V,110V.

1.2Dimensioned drawing



BE-96W dimensioned drawing.jpg

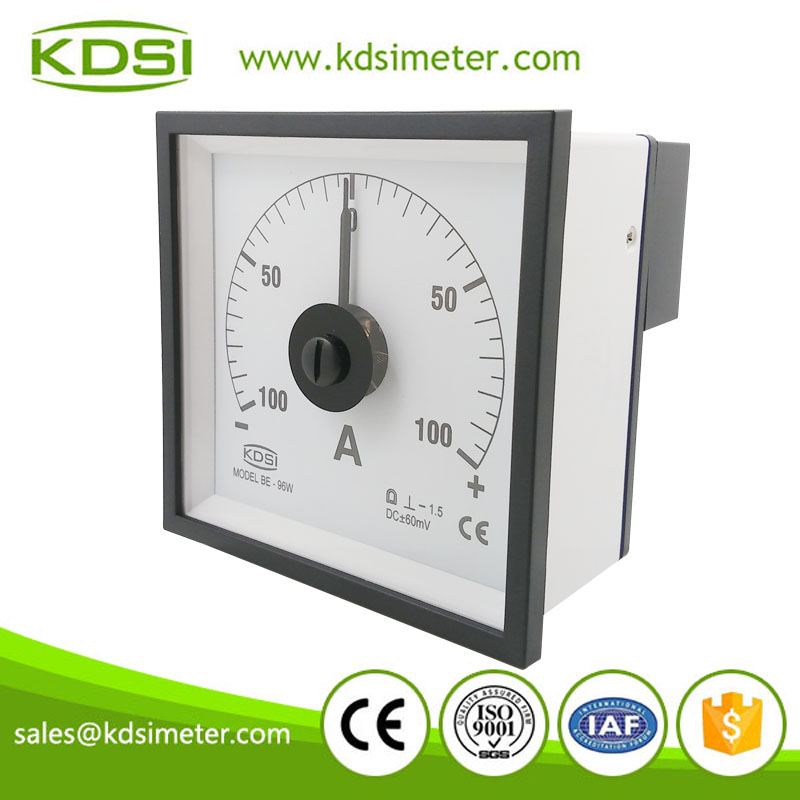

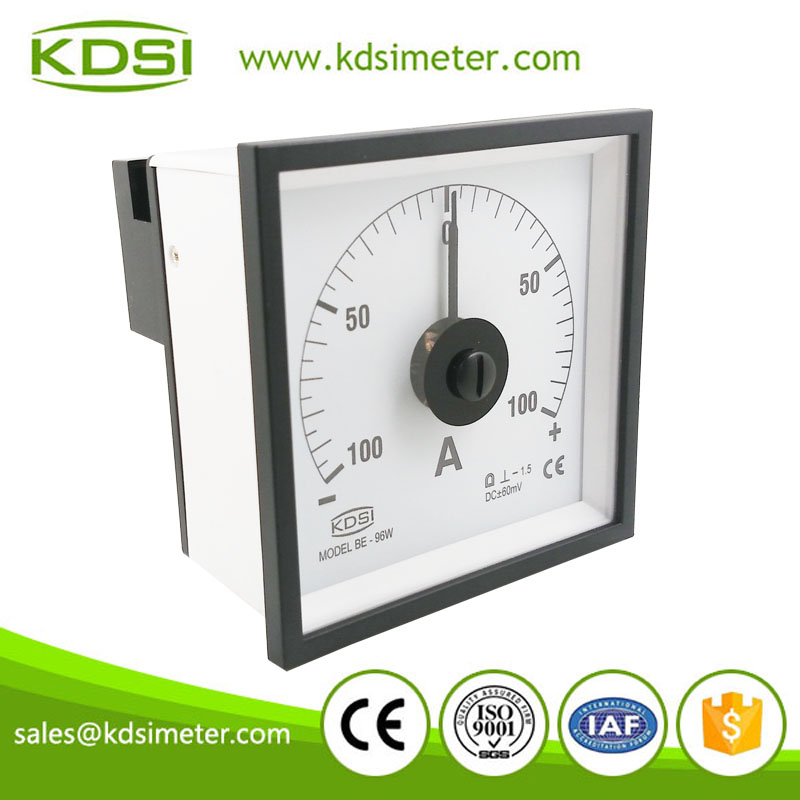

BE-96W DC+-60mV +-100A BE-96W DC+-60mV +-100A-1 BE-96W DC+-60mV +-100A-2



1.3Product Application


1.4 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

  Neat warehouse and clean production line

1.6 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT EMS FEDEX UPS DHL ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line

Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
