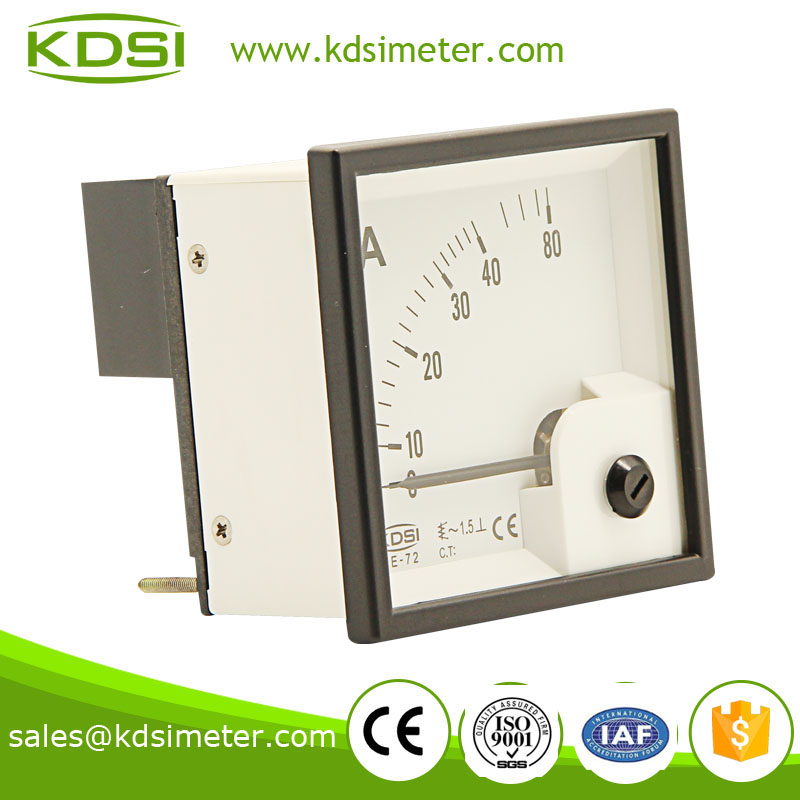

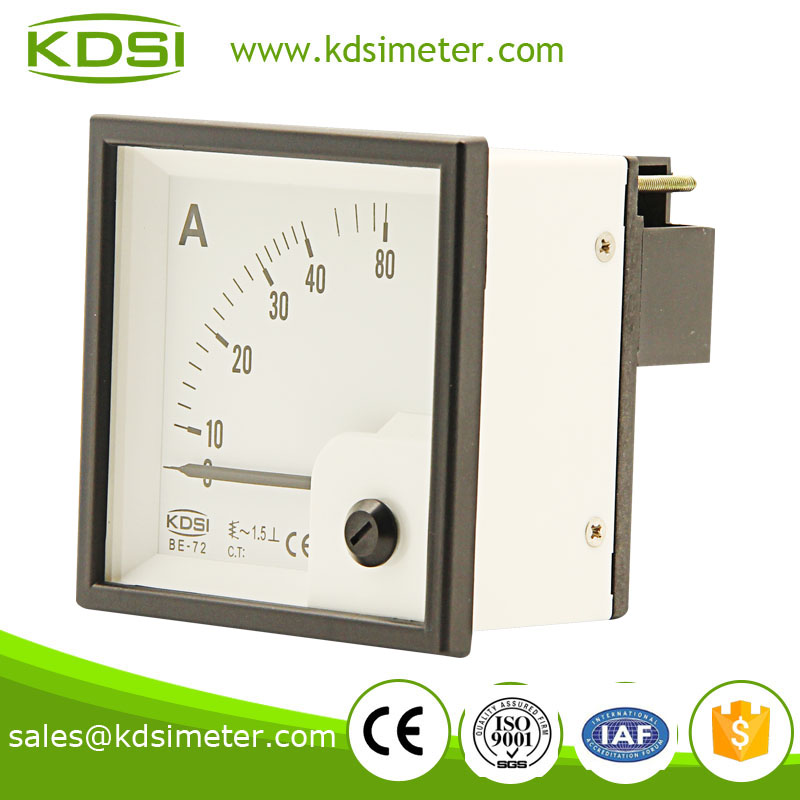

High quality professional BE-72 AC40A ammeter with output

Moving Iron 72*72 AC Ammeter CE approved
High quality professional BE-72 AC40A ammeter with output
Measuring the alternative current,moving iron movement indicating true RMS values.

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM
Code:
9030339000

High quality professional BE-72 AC40A ammeter with output

1.1Product Description

Composition:
Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black base and frame , white scale plate and meter body.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model		BE-96	BE-72	BE-48
Front frame	mm	*9696**	*7272**	*4848**
Panelcutout	mm	*9191**	*6868**	*4545**
AC current
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external Current Transformer	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC voltage
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V

Model		BE-96	BE-72	BE-48
Front frame	mm	*9696**	*7272**	*4848**
Panelcutout	mm	*9191**	*6868**	*4545**
AC Current with Recifier
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A
Combined with an external Current Transformer	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC Voltmeter with Recifier
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V

Model			BE-96		BE-72		BE-48
Front frame	mm		*9696**		*7272**		*4848**
Panelcutout	mm		*9191**		*6868**		*4545**
DC current
Ranges		uA	50uA 100uA 150uA 250uA 800uA
		mA	4-20mA 1mA 10mA 500mA 800mA
		A	1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt		50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltmeter
Ranges		V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Maximun Demand Ammeter
With bimetal movement and thermal delayed indicator for measuring the maximum mean load during a period of 8,15 minutes, eats red maximum pointer. Scale compressed at the beginning, convenient reading from 25% OF full scale deflection. Accruacy of maximum load indication +-3%
Maximum Demand Indicator		Model		Current		Response time / Real time
		BE-96 BE-72		1A or 5A		8min 15min / 8min
Frequency Meters/Frequency Meter with Reeds
Measuring frequency ranging from 45-65Hz , Moving Coil movement. The accuracy class is 2.5. Voltage Fluctuation Allowance:+-20% Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz.
Frequency Meter		Model		Measuring Rang		Voltage
Pointer		BE-96 BE-72 BE-48		45-55Hz 45-65Hz 55-65Hz		100V,220V,380V,400V,440V
Vibrating		BE-96 BE-72		45-55Hz 47-53Hz		100V,220V,380V,440V
Power Factor Meters
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5
Power Factor Meter		Model		Specification		Voltage Current
		BE-96 BE-72		0.5lead-1.0-0.5lag		110V 220V 380V 415V, 1A 5A
Power Meters for Active and Reactive Power
Analog panel meter composed of a coremagnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5.
Power Meter		Model		Voltage		Current
		BE-96 BE-72
Single phase system				100V 220V		1A 5A
Three phase three wire 3P3W				100V 220V 380V 440V		1A 5A
Three phase four wire 3P4W				220(380V) 230(400V) 240(415V)		1A 5A

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Portable Precise BE-48 AC500V Rectifier Double Pointer Analog AC Panel Mini Voltmeter

KDSI Electronic Apparatus BE-48 AC26.4kV 22kV/110V Rectifier AC Panel Voltage Meter

Portable Precise BE-48 AC50/1A With Red Pointer Analog AC Panel Ampere Controller

20 years Professional Manufacturer BE-96 DC10V 250A analog dc volt panel ammeter

China Supplier BE-72 AC100/5A 5times overload analog ac panel ampere meter

High quality professional BE-80 DC+75mV +-30A with red pointer dc amp panel analog ammeter

Durable in use BP-100S DC+-10V +-850A dc analog amp current panel meter

Instant flexible BE-96 DC4-20mA 25kA dc analog amp kA panel meter

CE Approved BE-72 DC50mV 30/60A analog panel dc high precision ammeter

Portable precise BE-96 AC150/5A no overload ac analog amp panel meter

Square type BE-96 DC4-20mA 0.4MPa dc analog amp panel pressure meter

Small & high sensitivity BP-15 DC25V dc analog thin edgewise panel voltmeter

Easy installation BE-96 DC20mA 800A dc analog amp panel meter

High quality professional BE-96 AC60V rectifier analog ac panel voltmeter

Easy operation BE-96 DC10V 500A analog dc volt amp panel meter

Hot sales BE-72 AC150/1A analog ac panel amp meter

KDSI electronic apparatus BE-96 DC4-20mA 560kW dc analog amp kw panel meter

CE certificate BE-72 AC75/5A with red pointer ac analog panel ammeters

High quality BE-96W DC4-20mA 0.6/6 Mpa/bar backlighting analog amp panel pressure meter

Portable precise BE-72 AC50/5A with red pointer ac analog ammeter with output

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
