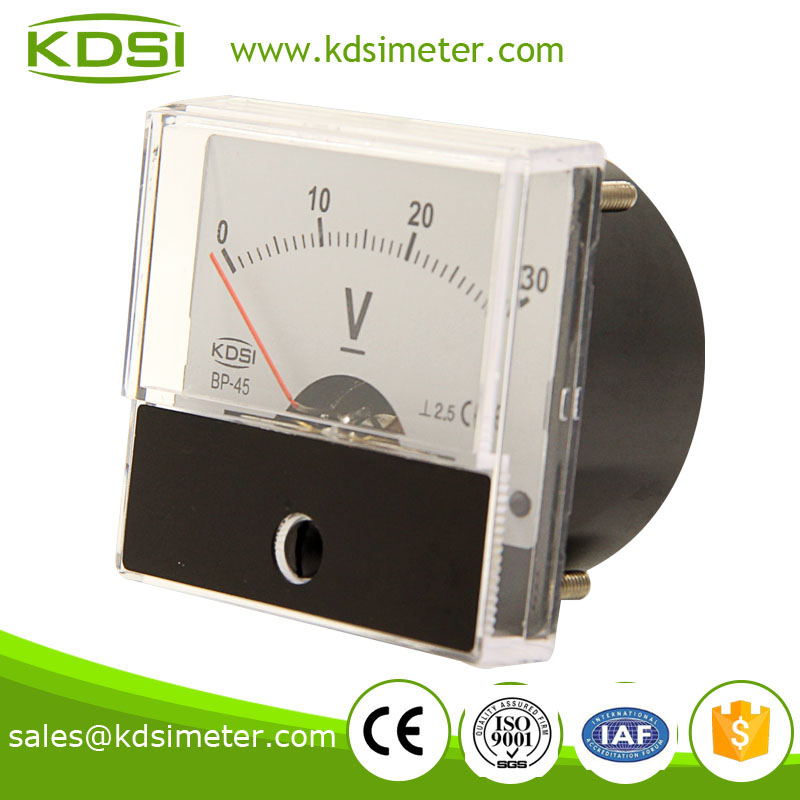

High quality BP-45 DC30V mini dc voltmeter

BP-45 50*50 DC Voltmeter CE approved
High quality BP-45 DC30V mini dc voltmeter
Measuring the DC voltage with linear scale.Moving coil movement.
The accuracy class is1.5 or2.5
Quantity:
Inquire Add to Basket

  • BP-45

  • KDSI Also can do OEM

High quality BP-45  DC30V mini dc voltmeter

1.1Product Description

Composition:
PC Front and Bakelite case, Four stud mounting,

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black case, white scale plate.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.


Model
BP-80 BP-60 BP-670 BP-45
Front frame mm 80*80 60*60 60*70 50*50
Panel cutout mm 64 52 53 45.5
AC current
Ranges
mA
 		 100mA 150mA 200mA 400mA 500mA 600mA 800mA
A 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external C.T. X/1A 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
X/5A 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is no overload,1.5 2.0 3.0 5.0 6.0 times overload can be customized
 AC voltage
Ranges V 10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V

KV
 		 Combined with an external PT **/100V **/110V **/120V
Model BP-80 BP-60 BP-670 BP-45
Front frame mm 80*80 60*60 60*70 50*50
Panel cutout mm 64 52 53 45.5
DC Current
Ranges uA 50uA 100uA 150uA 250uA 800uA
mA 4-20mA 1mA 10mA 500mA 800mA
A 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt 50mV 60mV 75mV 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC voltage
Ranges V 0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Frequency Meters
Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20%
Frequency Meter

Model
 		 Measuring Rang
Voltage

BP-80,BP-670 BP-45 45-55Hz 45-65Hz 55-65Hz
100V,220V,300V



1.2Dimensioned drawing

BP-45 dimensioned drawing.jpg





1.3Product Application


1.4 Product Packaging


          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

  Neat warehouse and clean production line

1.6 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance ≥5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT 、 EMS、 FEDEX 、 UPS、 DHL 、 ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line
Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
Previous:
Next:
Hot Sales BP-45 DC+-3V Analog DC Super-mini Panel Volt Meter
Hot Sales BP-45 DC+-3V Analog DC Super-mini Panel Volt Meter
KDSI Electronic Apparatus BP-45 AC600V Rectifier Analog AC Super-mini Panel Voltmeter
KDSI Electronic Apparatus BP-45 AC600V Rectifier Analog AC Super-mini Panel Voltmeter
Easy Operation BP-45 DC5V Analog DC Super-mini Panel Mount Voltmeter
Easy Operation BP-45 DC5V Analog DC Super-mini Panel Mount Voltmeter
High Quality BP-45 DC100V DC Super Mini Analog Panel Mount Voltmeter
High Quality BP-45 DC100V DC Super Mini Analog Panel Mount Voltmeter
KDSI Electronic Apparatus BP-45 DC50V Analog Panel DC Super-mini Voltmeter
KDSI Electronic Apparatus BP-45 DC50V Analog Panel DC Super-mini Voltmeter
High Precision BP-45 DC10V 60spm DC Voltage SPM Panel Meter
High Precision BP-45 DC10V 60spm DC Voltage SPM Panel Meter
China Supplier BP-45 AC500V clear cover mini analog ac panel mount voltmeter
China Supplier BP-45 AC500V clear cover mini analog ac panel mount voltmeter
Hot sales BP-45 DC15V panel analog super mini dc voltmeter
Hot sales BP-45 DC15V panel analog super mini dc voltmeter
Safe to operate BP-45 DC60V panel dc analog super mini voltmeter
Safe to operate BP-45 DC60V panel dc analog super mini voltmeter
KDSI electronic apparatus BP-45 DC300V panel dc super mini analog voltmeter
KDSI electronic apparatus BP-45 DC300V panel dc super mini analog voltmeter
Portable precise BP-45 DC10V 5kHz analog dc panel meter
Portable precise BP-45 DC10V 5kHz analog dc panel meter
Safe to operate BP-45 AC500V mini panel analog ac voltmeter ac 0-500v
Safe to operate BP-45 AC500V mini panel analog ac voltmeter ac 0-500v
CE certificate BP-45 DC10V 750V panel analog dc voltmeter
CE certificate BP-45 DC10V 750V panel analog dc voltmeter
Hot sales BP-45 DC10V 100kW analog dc voltage kw panel meter
Hot sales BP-45 DC10V 100kW analog dc voltage kw panel meter
Portable precise BP-45 DC25V analog dc panel voltage meter
Portable precise BP-45 DC25V analog dc panel voltage meter
Factory direct sales BP-45 DC100V analog dc panel mount voltmeter
Factory direct sales BP-45 DC100V analog dc panel mount voltmeter
High quality professional BP-45 DC10V 50Hz analog voltage frequency panel meter
High quality professional BP-45 DC10V 50Hz analog voltage frequency panel meter
Durable in use BP-45 DC30V analog dc panel electric voltmeter
Durable in use BP-45 DC30V analog dc panel electric voltmeter
Easy installation BP-45 DC10V 100Hz Electricity analog panel voltage frequency meter
Easy installation BP-45 DC10V 100Hz Electricity analog panel voltage frequency meter
Easy installation BP-45 AC250V mini panel analog ac ammeter ac voltmeter
Easy installation BP-45 AC250V mini panel analog ac ammeter ac voltmeter
