Factory direct sales BE-80 AC800/ 5A automotive ammeter

Share to:

Factory direct sales BE-80 AC800/ 5A automotive ammeter

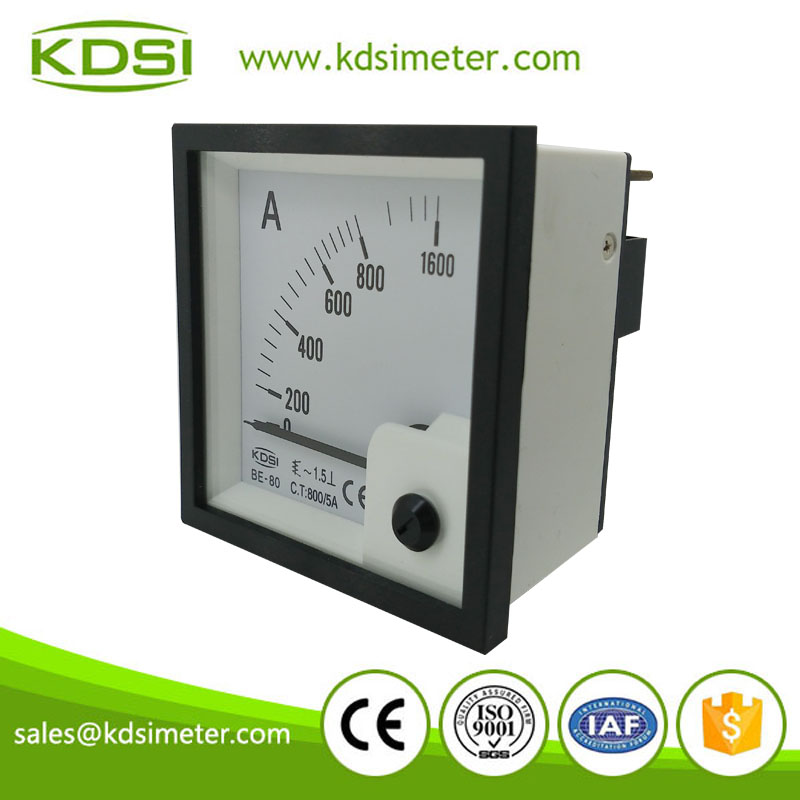

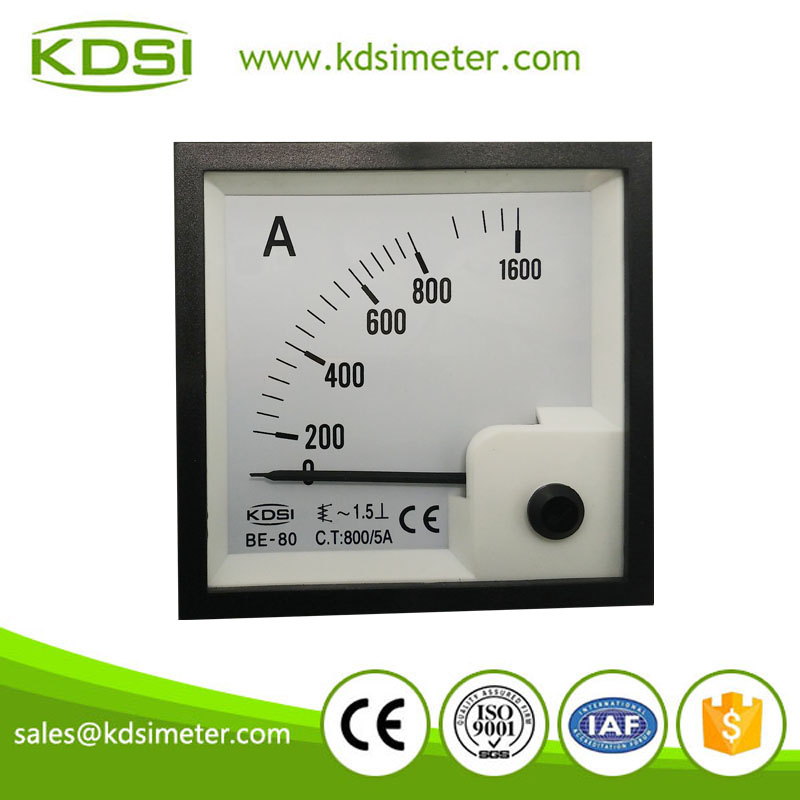

Moving Iron 80*80 AC Ammeter CE approved
Factory direct sales BE-80 AC800/ 5A automotive ammeter
Measuring the alternative current,moving iron movement indicating true RMS values.

Quantity:



Inquire Add to Basket

Model:
BE-80
Brand:
KDSI Also can do OEM
Code:
9030339000

Factory direct sales BE-80 AC800/ 5A automotive ammeter

1.1Product Description

Composition:
Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black base and frame , white scale plate and meter body.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model		BE-96	BE-80	BE-72	BE-48
Front frame	mm	*9696**	*8080**	*7272**	*4848**
Panelcutout	mm	*9191**	*7676**	*6868**	*4545**
AC current
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external Current Transformer	X/1A	10-3000/1A More Ranges can be customized
	X/5A	10-3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC voltage
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V

AC Current with Recifier
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A
Combined with an external Current Transformer	X/1A	10-3000/1A More Ranges can be customized
	X/5A	10- 3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC Voltmeter with Recifier
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V
DC current
Ranges	uA	50uA 100uA 150uA 250uA 800uA
	mA	4-20mA 1mA 10mA 500mA 800mA
	A	1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt	50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltmeter
Ranges	V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Maximun Demand Ammeter
Maximum Demand Indicator	Model	Current	Response time / Real time
	BE-96 BE-72	1A or 5A	8min 15min / 8min
Frequency Meters/Frequency Meter with Reeds
Frequency Meter	Model	Measuring Rang	Voltage
Pointer	BE-96 BE-72 BE-48 BE-80	45-55Hz 45-65Hz 55-65Hz	100V,220V,380V,400V,440V
Vibrating	BE-96 BE-72	45-55Hz 47-53Hz	100V,220V,380V,440V
Power Factor Meters
Power Factor Meter	Model	Specification	Voltage Current
	BE-96 BE-72	0.5lead-1.0-0.5lag	110V 220V 380V 415V, 1A 5A
Power Meters for Active and Reactive Power
Power Meter	Model	Voltage	Current
	BE-96 BE-72
Single phase system		100V 220V	1A 5A
Three phase three wire 3P3W		100V 220V 380V 440V	1A 5A
Three phase four wire 3P4W		220(380V) 230(400V) 240(415V)	1A 5A

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Industrial Universal BE-80 DC75mV 80A Analog DC Panel Mount Ammeter

CE Certificate BE-80 DC50V Analog DC Panel Voltage Meter

Hot Sales BE-80 DC75mV 100A Double Pointer Analog DC Panel High Precision Ammeter

Hot Sales BE-80 AC400/5A Analog AC Panel Ammeter With Output

Easy Installation BE-80 DC+-75mV +-100A Double Pointer Analog DC Panel Mount Ammeter

New Hot Sale Smart BE-80 AC250/5A Double pointer Analog AC Panel Mount Ammeter

CE Certificate BE-80 DC20mA 60Hz DC Analog Amp Hz Panel Meter

Portable Precise BE-80 DC+-40mA Analog DC Ammeter Current Panel Meter

Hot sales BE-80 DC+-75mV +-4000A panel analog dc ammeter

Portable precise BE-80 DC20mA 400A dc panel analog ampere meter

High quality professional BE-80 DC+75mV +-30A with red pointer dc amp panel analog ammeter

Instant flexible BE-80 AC150/5A no overload ac panel mount analog ampere meter

Square type BE-80 AC500/1A no overload ac panel analog ampere indicator

Portable precise BE-80 AC300/5A no overload ac panel analog ammeter

Classical BE-80 AC250/1A with red pointer analog ac amp panel electric meter analog

Safe to operate BE-80 DC4-20mA 200A dc amp panel analog galvanometer

20 years Professional Manufacturer BE-80 DC4-20mA 40kA analog dc amp panel meters

Easy operation BE-80 AC400/1A with red pointer analog ac panel ct operated meter

Hot sales BE-80 AC50/5A ac analog voltage and current meter panel meter

KDSI electronic apparatus BE-80 AC1000/5A ac analog amp current panel meter
