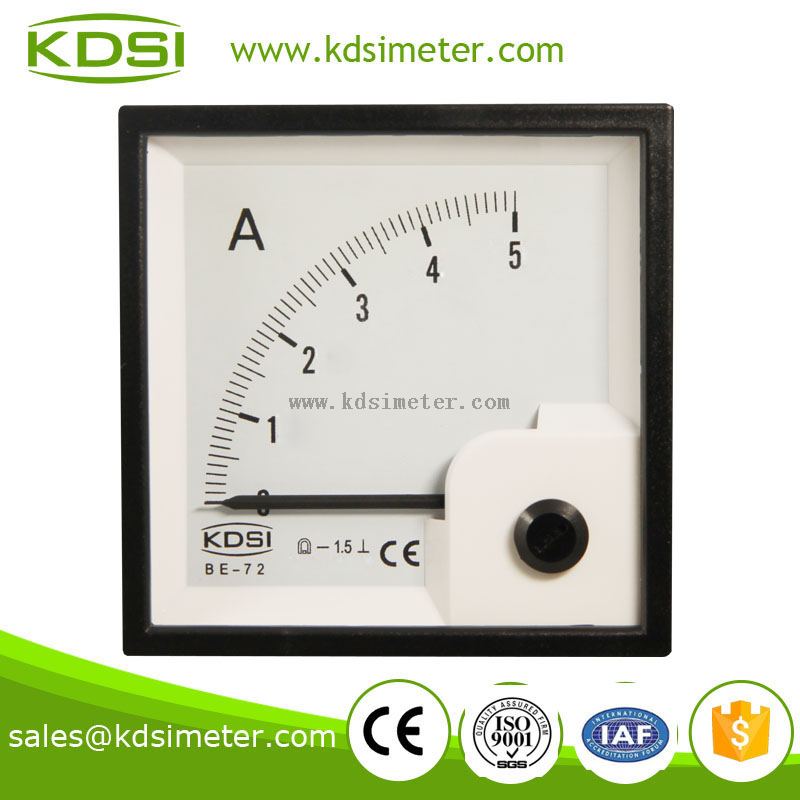

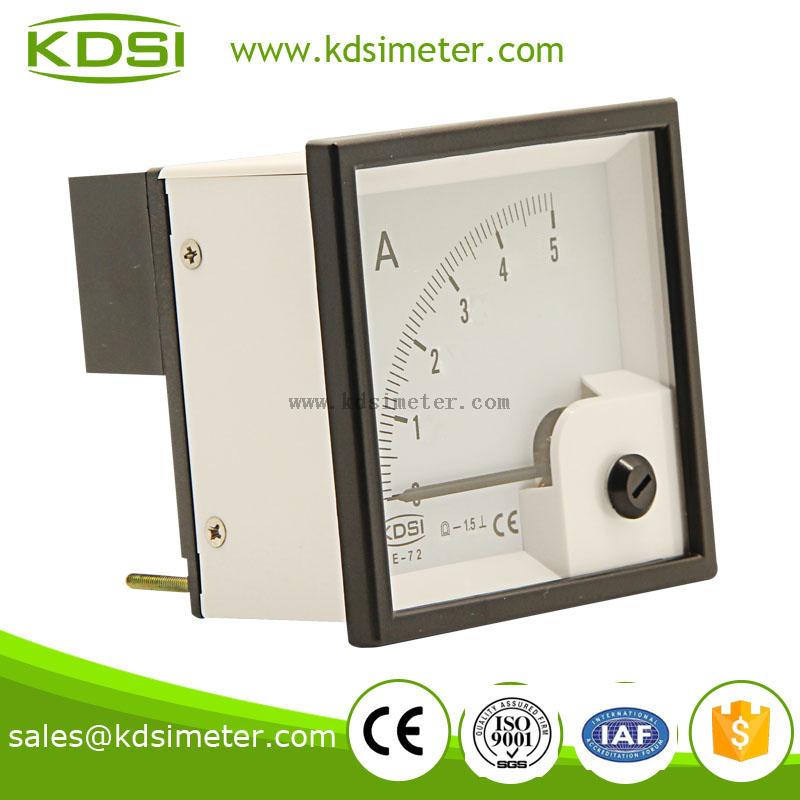

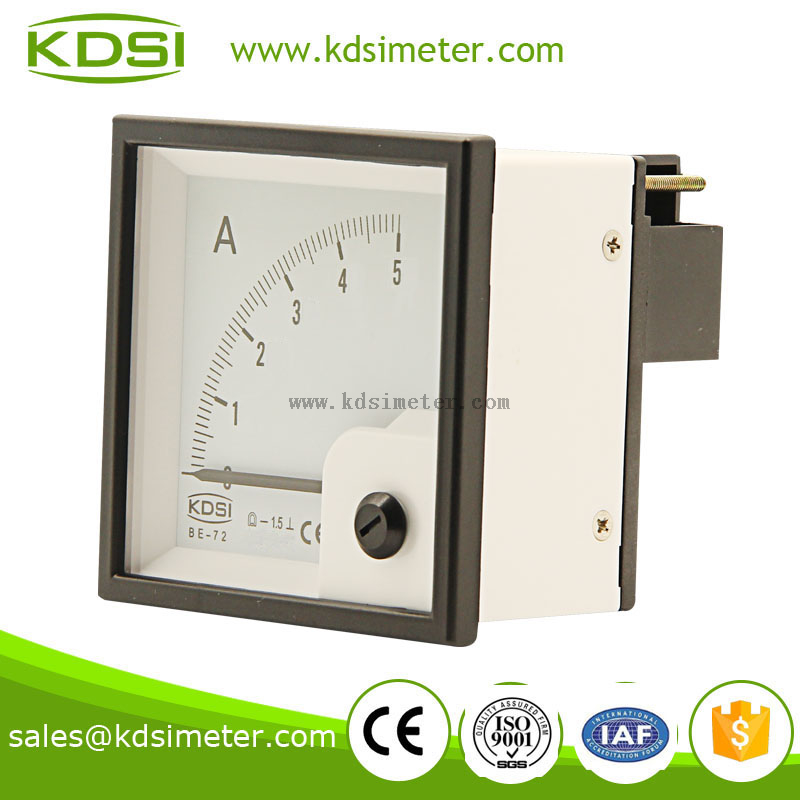

Factory direct sales BE-72 72*72 DC5A portable current meter

Share to:

Factory direct sales BE-72 72*72 DC5A portable current meter

moving coil 72*72 ammeter CE approved
Factory direct sales BE-72 72*72 DC5A portable current meter
Measuring the DC current with linear scale.Moving coil movement.

Quantity:



Inquire Add to Basket

Model:
BE-72
Brand:
KDSI Also can do OEM
Code:
9030339000

**Factory direct sales BE-72 72*72 DC5A portable current meter**

1.1Product Description

Composition:
Glass window, ABS Resin frame and case, PC glass fiber base mounting fitting included.

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black base and frame , white scale plate and meter body.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model		BE-96	BE-72	BE-48
Front frame	mm	*9696**	*7272**	*4848**
Panelcutout	mm	*9191**	*6868**	*4545**
AC current
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external Current Transformer	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC voltage
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V

Model		BE-96	BE-72	BE-48
Front frame	mm	*9696**	*7272**	*4848**
Panelcutout	mm	*9191**	*6868**	*4545**
AC Current with Recifier
Ranges	mA	50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A
Combined with an external Current Transformer	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC Voltmeter with Recifier
Ranges	V	10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V
	KV	Combined with an external PT /100V /110V **/120V

Model			BE-96		BE-72		BE-48
Front frame	mm		*9696**		*7272**		*4848**
Panelcutout	mm		*9191**		*6868**		*4545**
DC current
Ranges		uA	50uA 100uA 150uA 250uA 800uA
		mA	4-20mA 1mA 10mA 500mA 800mA
		A	1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt		50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltmeter
Ranges		V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Frequency Meters/Frequency Meter with Reeds
Measuring frequency ranging from 45-65Hz , Moving Coil movement. The accuracy class is 2.5. Voltage Fluctuation Allowance:+-20% Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz.
Frequency Meter		Model		Measuring Rang		Voltage
Pointer		BE-96 BE-72 BE-48		45-55Hz 45-65Hz 55-65Hz		100V,220V,380V,400V,440V
Vibrating		BE-96 BE-72		45-55Hz 47-53Hz		100V,220V,380V,440V
Power Factor Meters
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5
Power Factor Meter		Model		Specification		Voltage Current
		BE-96 BE-72		0.5lead-1.0-0.5lag		110V 220V 380V 415V, 1A 5A
Power Meters for Active and Reactive Power
Analog panel meter composed of a coremagnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5.
Power Meter		Model		Voltage		Current
		BE-96 BE-72
Single phase system				100V 220V		1A 5A
Three phase three wire 3P3W				100V 220V 380V 440V		1A 5A
Three phase four wire 3P4W				220(380V) 230(400V) 240(415V)		1A 5A

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

客户21
客户拼21

CE Certificate High Quality BE-72 DC+-75mV +-50A Analog DC Panel Ampere Meter

Original Manufacturer High Quality BE-72 DC+-10V +-4000A Analog DC Panel Amp Meter

KDSI Electronic Apparatus BE-72 DC3A Analog DC Panel Ampere Indicator

CE Certificate BE-72 DC75mV 300A Analog DC Panel Ampere Meter

High Quality BE-72 DC+-60mV +-50A Analog DC Panel Amp Meter For Shunt

Portable Precise BE-72 DC+-10V +-10A Analog DC Panel Amp Current Meter

New Hot Sale Smart BE-72 DC+-60mV +-100A Double Pointer Analog DC Panel Amp Meter

KDSI Electronic Apparatus BE-72 DC75mV 1500A Analog DC Panel Volt Ampere Indicator

High Quality Professional BE-72 DC4-20mA 250bar Analog DC Amp Panel Mount Pressure Gauge

20 Years Manufacturing Experience BE-72 DC50mV 200A Analog DC Panel Volt Ampere Indicator

Square Type BE-72 DC60mV 800A Analog DC Panel Volt Ampere Meter

KDSI Electronic Apparatus BE-72 DC50mV 1500A Analog DC Panel Volt Ampere Indicator

CE Certificate BE-72 DC4-20mA -500-2500mmWG Analog DC Amp Panel Fan Pressure Gauge

Small & High Sensitivity BE-72 DC4-20mA 30A With Red Pointer Analog DC Panel Sensitive Galvanometer

High Quality BE-72 DC75mV 30/60A Double Scale Analog DC Panel Volt Ampere Meter

CE Passed BE-72 DC60mV 600A Analog DC Voltage Panel Ammeter Output

Hot Sale Smart BE-72 DC60mV 800A analog panel dc high precision ammeter

Easy installation BE-72 DC4-20mA 400bar Analog DC Panel Amp Pressure Meter

CE certificate BE-72 DC20mA 60Hz analog dc amp panel Hz meter

New Hot Sale Smart BE-72 DC10V 200A analog dc voltage panel mount ammeter
