Economical BE-96 F 45-65Hz Digital intelligent single phase frequency meter

Economical BE-96 F 45-65Hz Digital intelligent single phase frequency meter

Quantity:
  • BE-96 F
  • KDSI Also can do OEM
  • BE-96 F
  • Single-row LED dispaly
  • 0-9999
  • ±0.02Hz
  • AC/DC880
  • -10℃~+55℃
  • 96*96mm
  • AC 57.7V,AC 100V,AC 220V,AC 380V
  • 0-5/10v
  • Single-phase

Economical BE-96 F 45-65Hz Digital intelligent single phase frequency meter

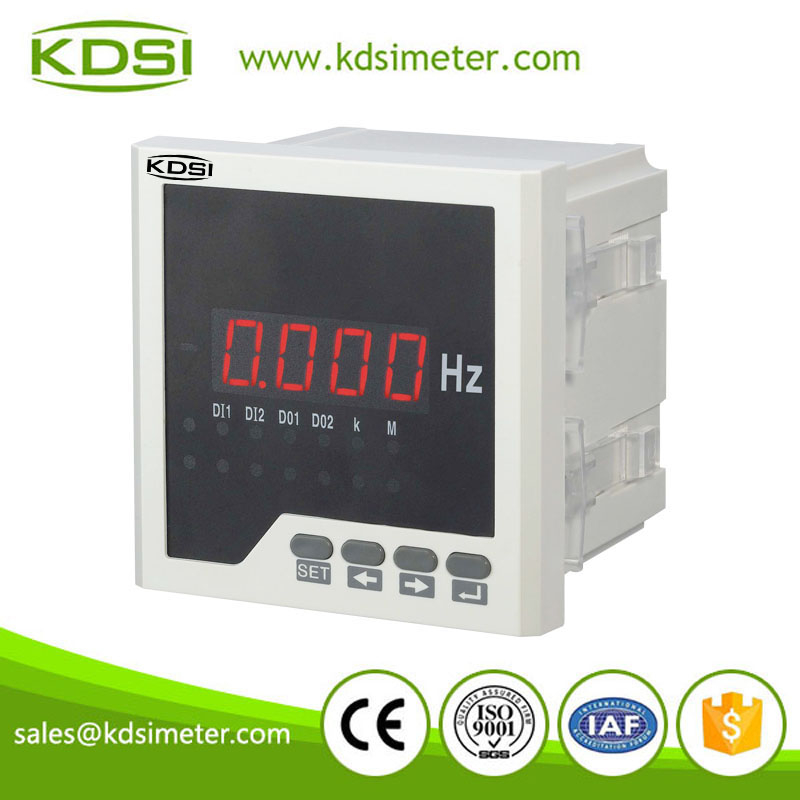

BE-96 F-1

1.1Product Description

Feature
Measure single-phase AC frequency with high-precision.
Provide LED display and local data query.
Support RS-485 communications and Modbus-RTU protocol.
Support switch input, switch output and analog output.
Power supply: AC / DC 80V~270V ,AC 220V,AC 380V,AC 100V,DC 48V,DC24V
There are various choices of dimensions to meet the requirements of different electrical circuit enclosure.
Accuracy Measurement
Frequency ±0.02Hz
Input Measurement
Wiring: Single-phase
Rated Value :AC 57.7V,AC 100V,AC 220V,AC 380V
Overload: Sustained: 1.2 times; Instantaneous: 2 times/ 1s
Power consumption:<1VA (per phase)
Impedance:>300KΩ
Frequency:45~65Hz
Power supply
Working range: AC/DC 80~270V,AC220V,AC380V,AC100V,DC48V,DC24V
Power consumption:<4VA
Function Module
Communication interface: 1 loop RS-485 Communication, MODBUS-RTU protocol
Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching Value Input:2 loops switching value input, dry joint
Switching Value Output:2 loops relay output, capability: AC 250V/5A,DC 30V/5A
Transmission Output:1 loop analog output: 0/4~20mA or 0~5/10V
Environment
Operational environment - 1 0~ + 5 5
Storage environment - 2 5~ + 7 0℃
Relative humidity ≤9 3 %,in the place without corrosive gas
Height above sea level ≤2 5 0 0 m
Safety
Insulation resistance > 1 0 0 MΩ
AC withstand voltage A C 2 K V
Electro Magnetic Compatibility
Electro-Static discharge class 4
Electrical Fast Transient pulse train class 4
Electrical surge class 4



Synoptic

Adopting A.C . Sampling this series meter can measure electrical parameters of the net such as current,voltage,frequency etc.and set ratio through key on panet .

Technical data



Technical parameters Value
input Normal value Voltage :300V500VCurrent :1A5A(Or ordered by customer)
Overload Currentcontinual 1.2timesinstaneous10times/1s
Voltagecontinual1.2timesinstaneous 2times/1s.
Frequency 4565Hz
Accuracy class 0.5
Display LED displayrange in0~9999
Power
supply
Voltage range AC 220V
Power consumption <5VA
Insulation resistance 100MΩ
Isolation voltage Between power supply/input/output   2kV/1minrms
MTBF 50000h
Environment Temperature Work-10~55,Storage:-25~+70℃
Humidity 93%RHIn the place without dew and corrosive gas
Altitude 2000m

Programming explain

There are three buttons in meters,such as  " SET","←","→" 、" caozuomianban huiche.jpgcaozuomianban huiche.jpg ".
"←" :  Menu items on the move or incremental value. .
"→" :   Menu item down or diminishing value .
"SET":   Menu Editor or the value of bit shifted to the right (in the digital input mode) .
   caozuomianban huiche.jpg "   ": Used for menu moving backward, the parameter is set back off and save your settings .

Note: SET ” :the value of bit shifted to the right, in the password input mode or CT PT value input mode

1.2Dimensioned drawing

BE-96 F

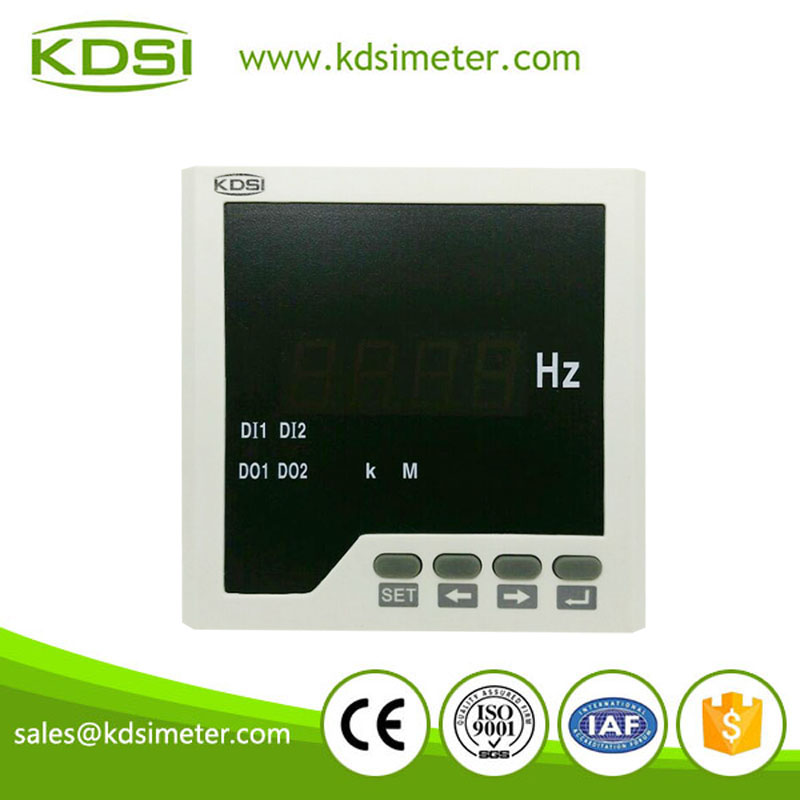

BE-96 F-2

BE-96 Digital dimensioned drawing

1.3Product Application


1.4 Product Packaging



          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.5 Professional Storage

  Neat warehouse and clean production line

1.6 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance 5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT EMS FEDEX UPS DHL ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line

Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
Good products have been tried before you know, contact us immediately
