Easy installation BE-60JZJ Increasing capacity electrical transformer

Easy installation BE-60JZJ Increasing capacity electrical transformer
Rated Current :700-800/5A
Rated Current :
BE-60JZJ 750/5A BE-60JZJ 800/5A
Quantity:
Inquire Add to Basket

  • KDSI Also can do OEM

Easy installation BE-60JZJ  Increasing capacity electrical transformer

1.1Product Description

◆ Features
      BE-JZJ Increasing capacity Current Transformer is used for indoor, measuring electric energy and current ,relay protection in the electrics system up to rated voltage 0.5KV or rated frequency 50 HZ .

◆Model Name
       BE – 60  JZ  J
      BE:Factory item no
     60:Window Size
     JZ:Casting resin insulated
     J  :Increasing capacity

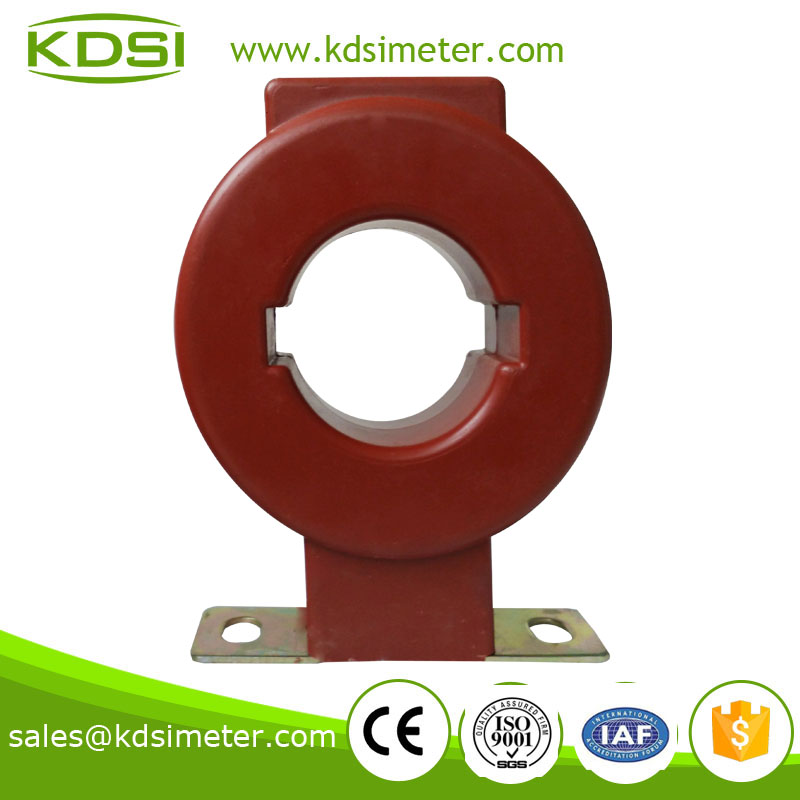

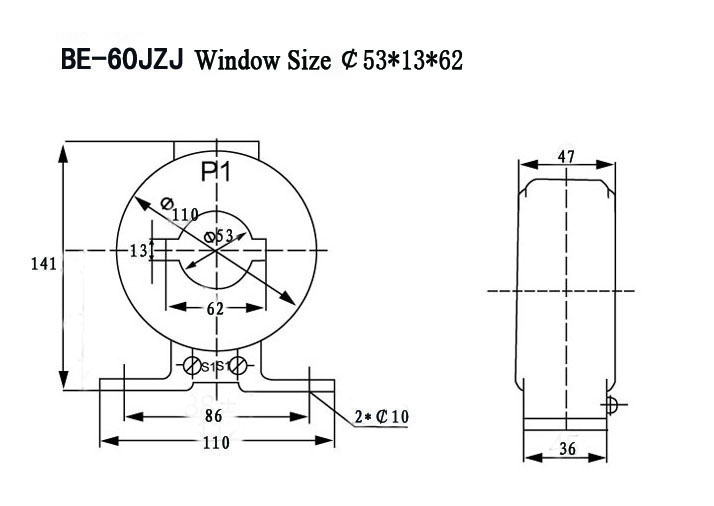

BE-60JZJ BACK BE-60JZJ BE-60JZJ
◆ Technical data
          1.This type product meet standard GB1208-2006 and IEC60044-1:2003 《 Current Transformer 》
       2.Rated voltage:0.5/0.66Kv
       3.Rated frequency:50HZ
       4.Rated secondary current:5A,1A
       5.The secondary winding for power frequency voltage 3KV,no rock up and occur ray
       6.Rated output ,accuracy grade ,outline dimension as form:

Type Rated Voltage
(KV)		 Rated Current
Ratio(A)		 Rated Burden
(VA)		 Accuracy Class Window Size
(MM)		 Weight(KG)
BE-30JZJ 0.5/0.66 5-300/5A 1.5-5 0.5/1/3 32*11 1.3
BE-40JZJ 0.5/0.66 200-300/5A 5 0.5/0.2 43*11 1.5
BE-50JZJ 0.5/0.66 400-600/5A 10 0.5/0.2 52*11 1.6
BE-60JZJ 0.5/0.66 700-800/5A 10 05./0.2 62*13 1.8
BE-100JZJ 0.5/0.66 1000-1600/5A 10-15 0.5/0.2 100*50 2.0


1.2Product Application



1.3 Product Packaging


          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers


1.4 Professional Storage

  Neat warehouse and clean production line

1.5 Our Customer

2.1、Test Report of SICEM
No. Test Item Allowed value Actual value Conclusion
1 Appearanceinspection Visual control Meet the demand
2 Insulation resistance ≥5MΩ Meet the demand
3 Voltage test Voltage 2KV Meet the demand
4 Response time 4s 1.5s Meet the demand
5 Test of intrinsic error ±1.5 ±0.5 Meet the demand
6 Test of tracking error ±1.5 ±0.6 Meet the demand
7 Test of deviation from zero ±0.75 0 Meet the demand
8 Test of overshoot ±20 0 Meet the demand
9 Test of self-heating ±1.5 ±0.1 Meet the demand
10 Test of variation due to distortion of a.c. measured quantity ±1.5 ±0.2 Meet the demand
11 Test of variation due to position ±0.75 ±0.2 Meet the demand
12 Test of variation due to frequency on a.c. measured quantity ±1.5 ±0.3 Meet the demand
13 Test of variation due to a magnetic field of external origin ±6 ±0.2 Meet the demand
14 Test of variation due to ambient temperature ±1.5 ±0.2 Meet the demand
15 Test of variation due to ferromagnetic supports ±1.5 ±0.5 Meet the demand
16 Short-time overload test ±1.5 ±0.5 Meet the demand
17 Continuous overload test ±1.5 ±0.5 Meet the demand
18 Vibration and shock test ±1.5 ±0.3 Meet the demand
19 Temperature limits test ±1.5 ±0.2 Meet the demand
20 Test of variation due to temperature ±1.5 ±0.2 Meet the demand

 2.2、Advanced Test Equipment Imported

             Test is more accurate, with highest precision and smallest error



TNT 、 EMS、 FEDEX 、 UPS、 DHL 、 ARMEX
Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers safely.


Production Line
Operators are working earnestly to control each and very working procedure. Details are attended as the manifestation of our professionalism everywhere
