KDSI Also can do OEM
9030339000

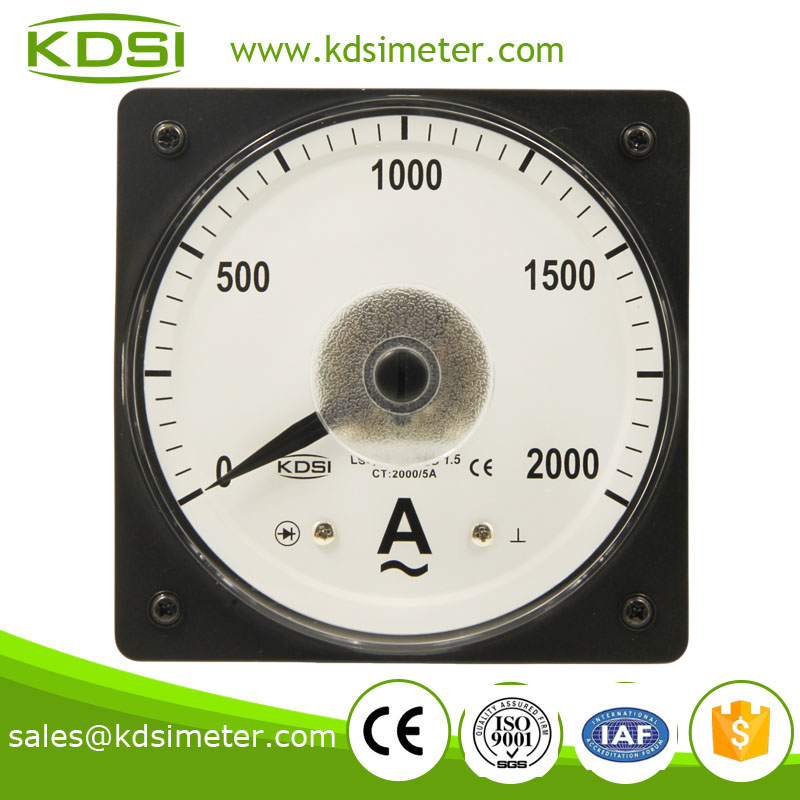

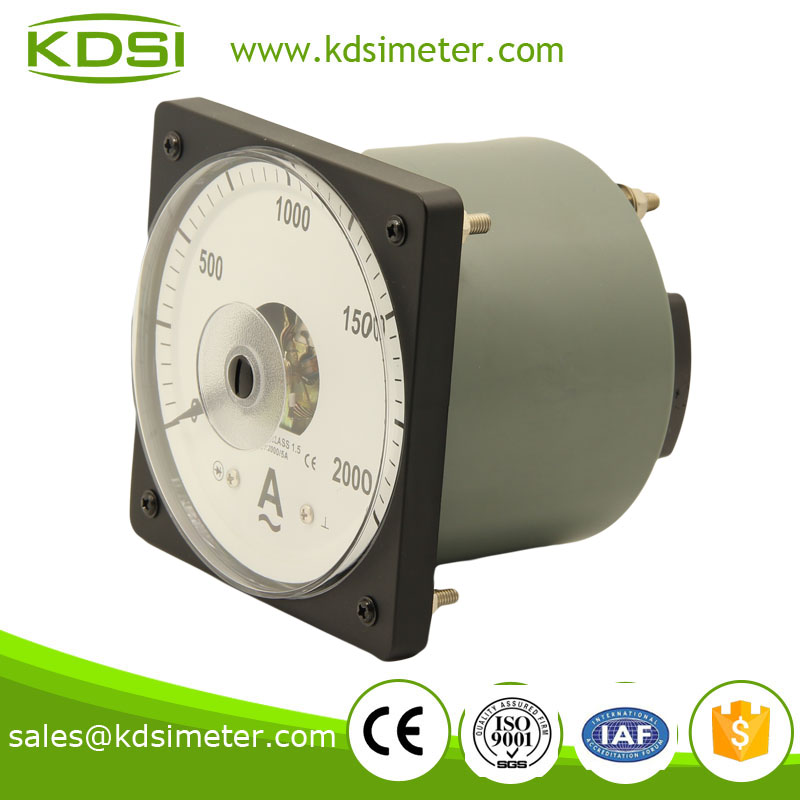

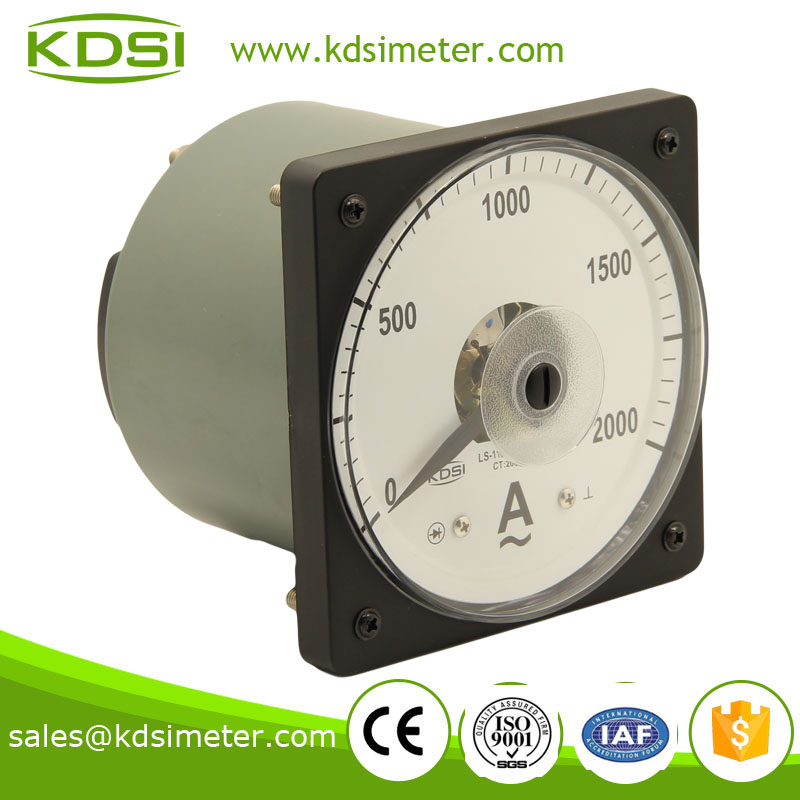

| Model | LS-110 | |||||
| AC Current with Recifier | ||||||
| Ranges | mA | 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||||
| A | 1A 5A 10A 15A 20A | |||||
| Combined with an external C.T. | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||||
| X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||||
| AC Voltmeter with Recifier | ||||||
| Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||||
| KV | Combined with an external PT **/100V **/110V | |||||
| Model | LS-110 | |||||
| DC Current | ||||||
| Ranges | uA | 150uA 250uA 500uA 800uA | ||||
| mA | 4-20mA 1mA 10mA 500mA 800mA | |||||
| A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A | |||||
| For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | ||||
| DC Voltmeter | ||||||
| Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | ||||
| Frequency Meters | ||||||
| Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20% | ||||||
| Frequency Meter | | Model | Measuring Rang | Voltage | ||
| | | LS-110 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440v | ||
| Power Factor Meters | ||||||
| Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | ||||||
| Power Factor Meter | | Model | Specification | Voltage Current | ||
| | | LS-110 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | ||
| Power Meters for Active and Reactive Power | ||||||
| Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5 | ||||||
| | | Model | Voltage | Current | ||
| Power Meter | | LS-110 | | | ||
| Single phase system | | | 100V 220V | 1A 5A | ||
| Three phase three wire 3P3W | | | 100V 220V 380V 440V | 1A 5A | ||
