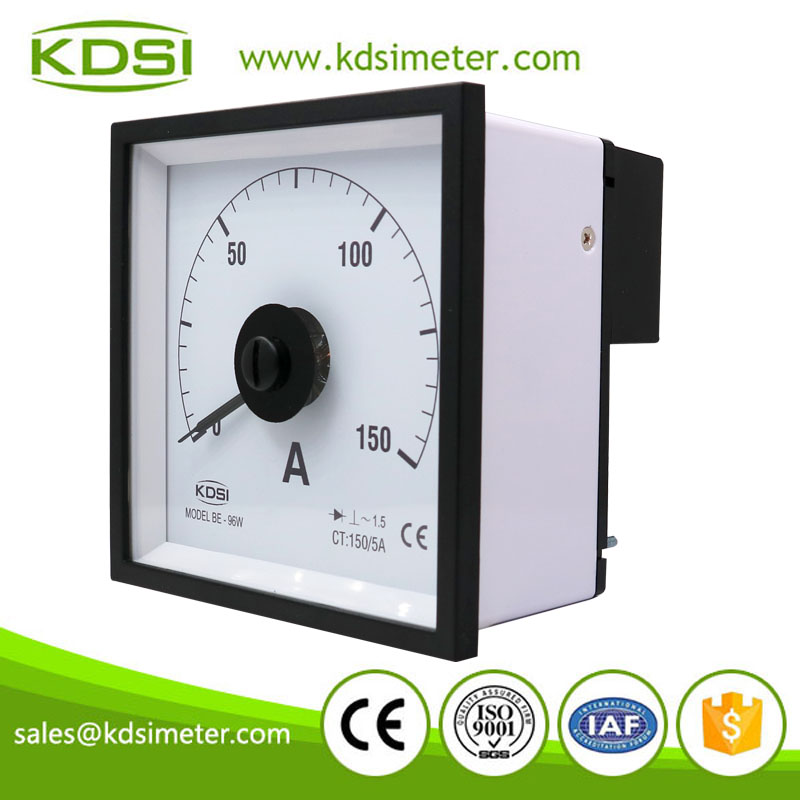

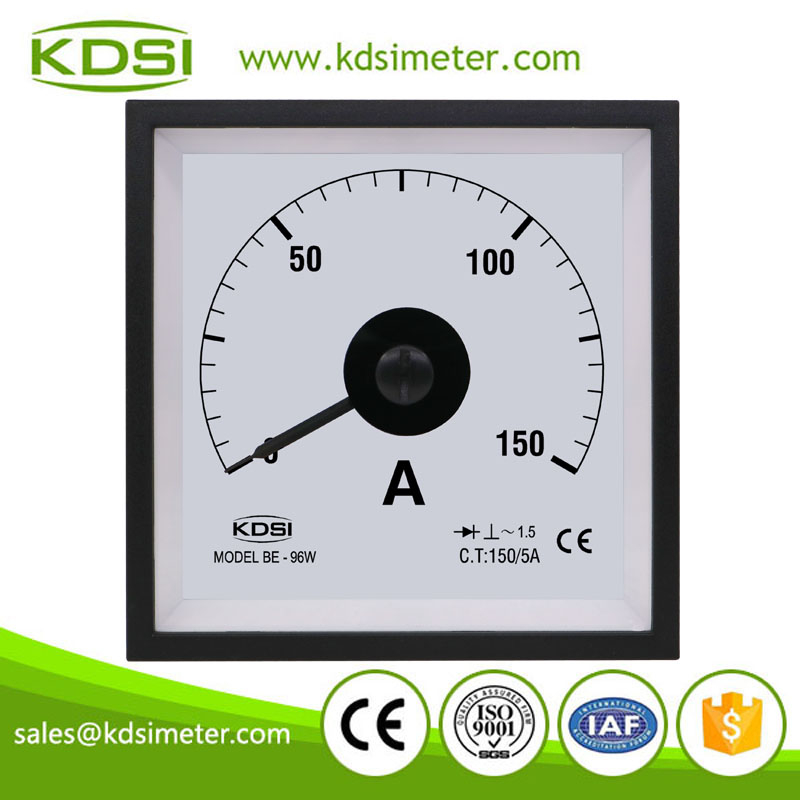

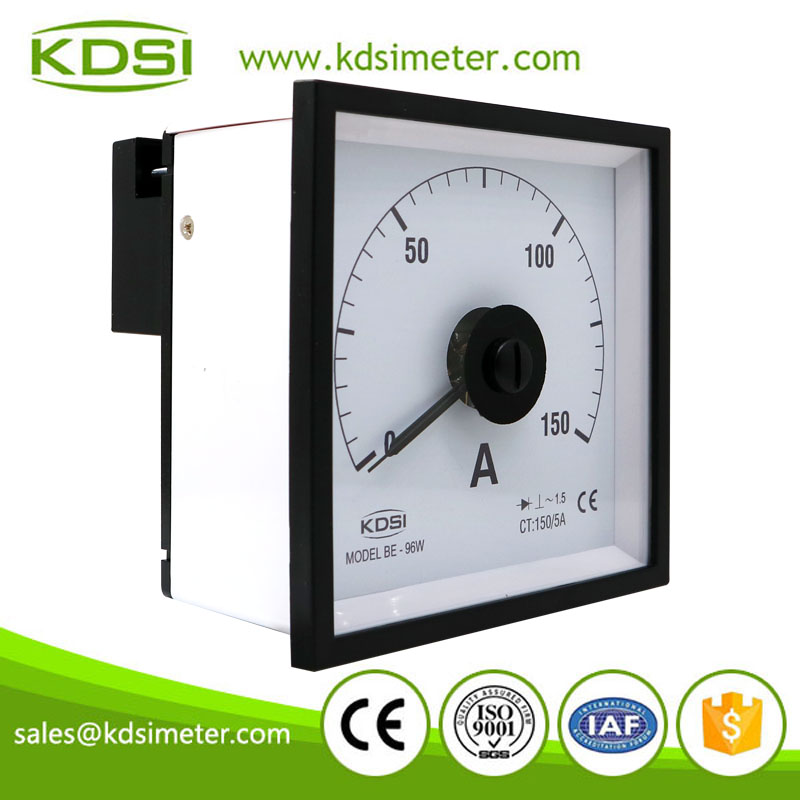

Classical marine meter BE-96W AC150/5A ac analog amp current panel meter

Share to:

Classical marine meter BE-96W AC150/5A ac analog amp current panel meter

moving coil 96*96 AC Ammeter CE approved
Classical marine meter BE-96W AC150/5A ac analog amp current panel meter
Measuring the AC current with linear scale.Moving coil movement.
The accuracy class is 1.5

Quantity:



Inquire Add to Basket

Model:
BE-96W
Brand:
KDSI Also can do OEM
Code:
9030339000

Classical marine meter BE-96W AC150/5A ac analog amp current panel meter

1.1Product Description

Product Description ______________________________________________________________

Product Name	Classical marine meter BE-96W AC150/5A ac analog amp current panel meter
Type	panel meter	Service	OEM ODM
Composition	Glass window	Model	BE-96W
	ABS Resin frame and case
	PC glass fiber base mounting fitting
Scale Plate	Normally Aluminum Alloy or Customized	Front Frame(mm)	96*96
Features	Zero Adjustment/Aging Test/Anti-static	Panel Cutout(mm)	91*91
Operating Position	Normally in vertical position or customized	Color	Customized
Pointer	Normally Aluminum Alloy or Customized	Accuracy	Class 1.5,2.5
Overshoot	Less than 15% when the pointer is at the 2/3 of the scale.(Can be customized)	Service Condition	-20~+50 degree

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Square Type BE-96W 3P3W -60-600kW 400V 1000/5A Wide Angle Analog Panel Mounting Power Meters

Classical BE-96W DC+-5mA COS Wide Angle Analog DC Amp Panel Power Factor Meter

High Quality Professional BE-96W AC1200/5A Wide Angle Analog AC Panel Ampere Indicator

Square Type BE-96W AC60/5A 2times overload Wide Angle Analog AC Panel Ampere Meter

CE Certificate BE-96W DC4-20mA 7bar Wide Angle Analog DC Amp Panel Pressure Meter

High Quality BE-96W DC800V Wide Angle DC Analog Panel Voltage Meter

Portable Precise BE-96W AC150/1A 5times overload Wide Angle Analog AC Panel Ampere Meter

CE Certificate BE-96W 45-55Hz 100V Wide Angle Analog Hz Frequency Meter

Hot Selling Good Quality BE-96W DC4-20mA -1-0bar Wide Angle Analog DC Amp Pressure Panel Meter

High Quality BE-96W DC100mV 250A Wide Angle Analog DC Amp Current Panel Meter

Square Type BE-96W DC5mA 1500V Wide Angle DC Analog Panel Voltage Meter

High quality BE-96W DC12V 1000min-1 Backlighting Wide Angle Analog Volt Speed Panel Meter

CE Certificate BE-96W AC200/5A 2times overload Wide Angle Analog AC Amp Panel Meter

Portable Precise BE-96W DC10V 150A Wide Angle Analog DC Current Panel Meter

Easy Operation BE-96W 45-65Hz 400V Wide Angle Analog Voltage Frequency Hz Meter

Portable Precise BE-96W DC+-10V Wide Angle DC Analog Panel Voltage Meter

Easy Operation BE-96W DC10mA 45-55Hz Wide Angle Analog DC Current Hz Panel Meter

New Design F96-W 3P3W -37.5-250kW 380/100V 400/5A Wide Angle Analog Panel Mounting Power Meters

Portable Precise BE-96W DC+-5mA +-30MW Wide Angle Analog DC Current Watt Meter

KDSI Electronic Apparatus BE-96W DC10V 600V Wide Angle Analog DC Panel Volt Meter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
