Classical DW26-20/3+LH3/3 48X60mm ammeter rotary selector switch

Classical DW26-20/3+LH3/3 48X60mm ammeter rotary selector switch
Function: Ampere Selectivity
Max. Current: 20A
Max. Voltage: 690V AC
Mechanical Life:100,000times (Operation frequency is 120 times/h)
Quantity:
  • DW26-20

  • KDSI Also can do OEM

Classical DW26-20/3+LH3/3 48X60mm ammeter rotary selector switch

1.1  Product Description

Instrument Switch including Ammeter Switch and Voltmeter Switch.

The Ammeter Switch is connected to Ammeters, the purpose being monitoring of current in all the respective phases current R.Y.B.

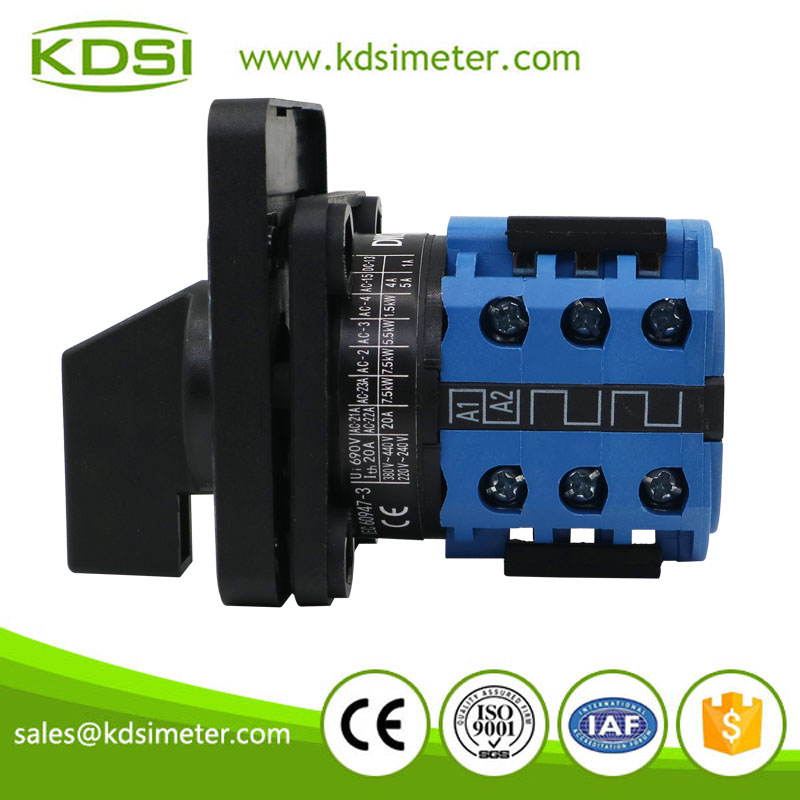

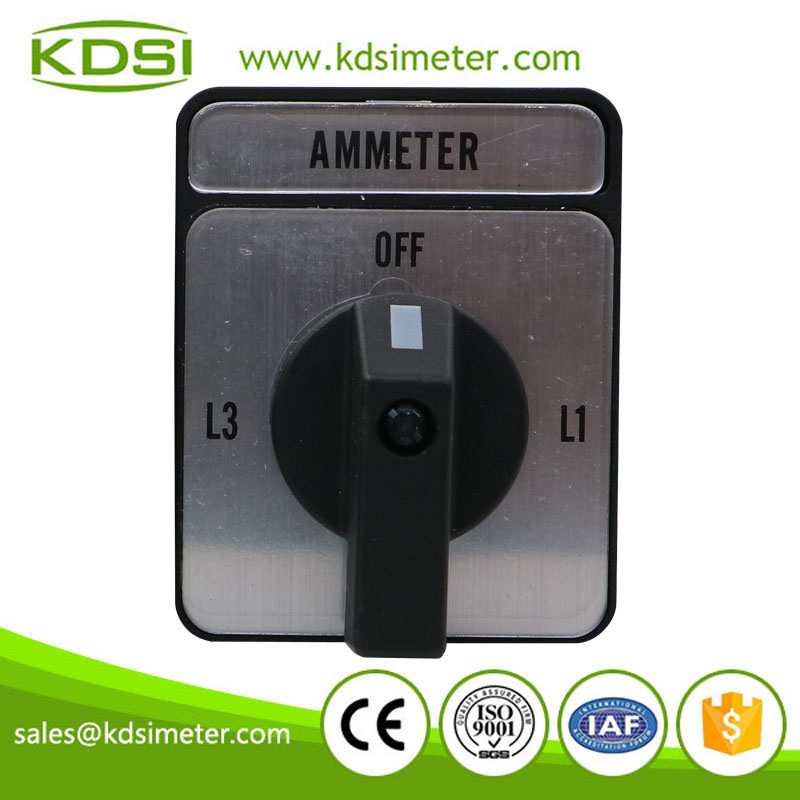

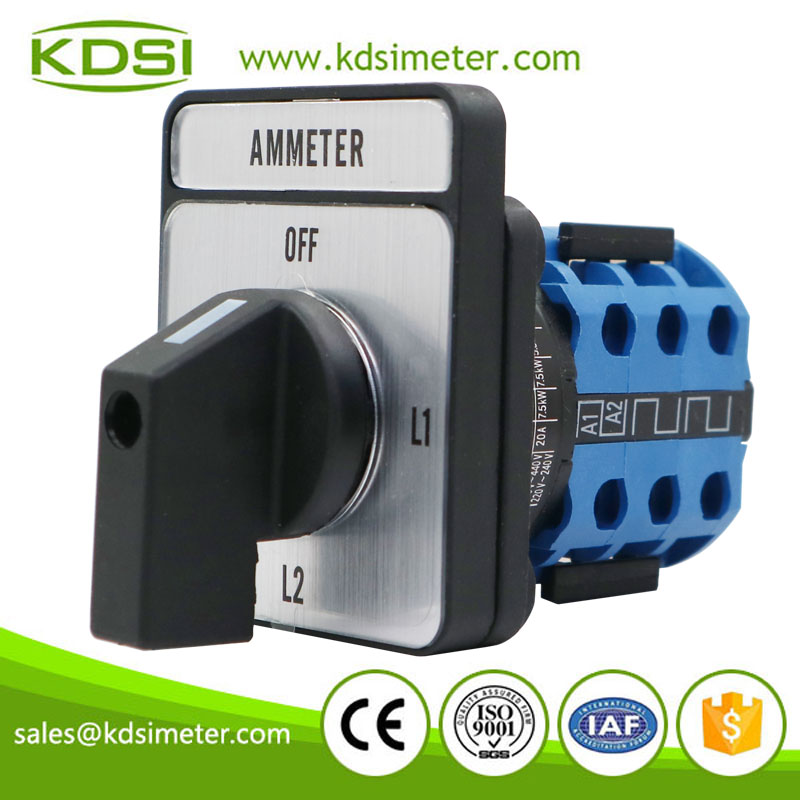

  DW26-20-3+LH3-3 48X60mm AMMETER SELECTOR SWITCH DW26-20-3+LH3-3 48X60mm AMMETER SELECTOR SWITCH-1 DW26-20-3+LH3-3 48X60mm AMMETER SELECTOR SWITCH-2 DW26-20-3+LH3-3 48X60mm AMMETER SELECTOR SWITCH-3 DW26-20-3+LH3-3 48X60mm AMMETER SELECTOR SWITCH-4

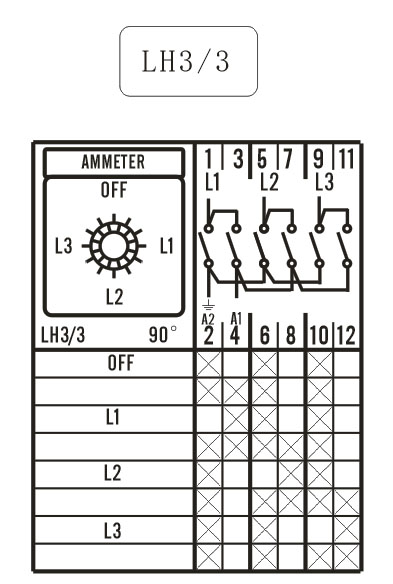

  LH3-3




1.2 Dimensioned drawing



DW26-20 DRAWING 48-60
