BE-96
KDSI Also can do OEM
Model | BE-96 | BE-72 | BE-48 | |
Front frame | mm | 96*96 | 72*72 | 48*48 |
Panelcutout | mm | 91*91 | 68*68 | 45*45 |
AC current | ||||
Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
A | 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A | |||
Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
AC voltage | ||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
KV | Combined with an external PT **/100V **/110V **/120V |
Model | BE-96 | BE-72 | BE-48 | |
Front frame | mm | 96*96 | 72*72 | 48*48 |
Panelcutout | mm | 91*91 | 68*68 | 45*45 |
AC Current with Recifier | ||||
Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
A | 1A 5A 10A 15A 20A 25A 30A | |||
Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
AC Voltmeter with Recifier | ||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
KV | Combined with an external PT **/100V **/110V **/120V |
Model | BE-96 | BE-72 | BE-48 | ||||
Front frame | mm | 96*96 | 72*72 | 48*48 | |||
Panelcutout | mm | 91*91 | 68*68 | 45*45 | |||
DC current | |||||||
Ranges | uA | 50uA 100uA 150uA 250uA 800uA | |||||
mA | 4-20mA 1mA 10mA 500mA 800mA | ||||||
A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A | ||||||
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | |||||
DC Voltmeter | |||||||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | |||||
Frequency Meters/Frequency Meter with Reeds | |||||||
Measuring frequency ranging from 45-65Hz , Moving Coil movement. The accuracy class is 2.5. Voltage Fluctuation Allowance:+-20% Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz. | |||||||
Frequency Meter | Model | Measuring Rang | Voltage | ||||
Pointer | BE-96 BE-72 BE-48 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440V | ||||
Vibrating | BE-96 BE-72 | 45-55Hz 47-53Hz | 100V,220V,380V,440V | ||||
Power Factor Meters | |||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | |||||||
Power Factor Meter | Model | Specification | Voltage Current | ||||
BE-96 BE-72 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | |||||

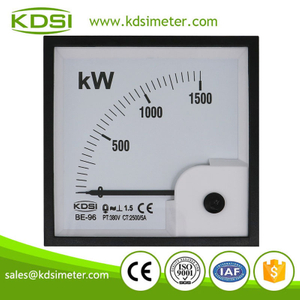

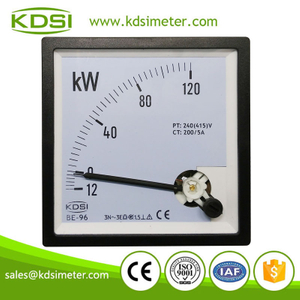

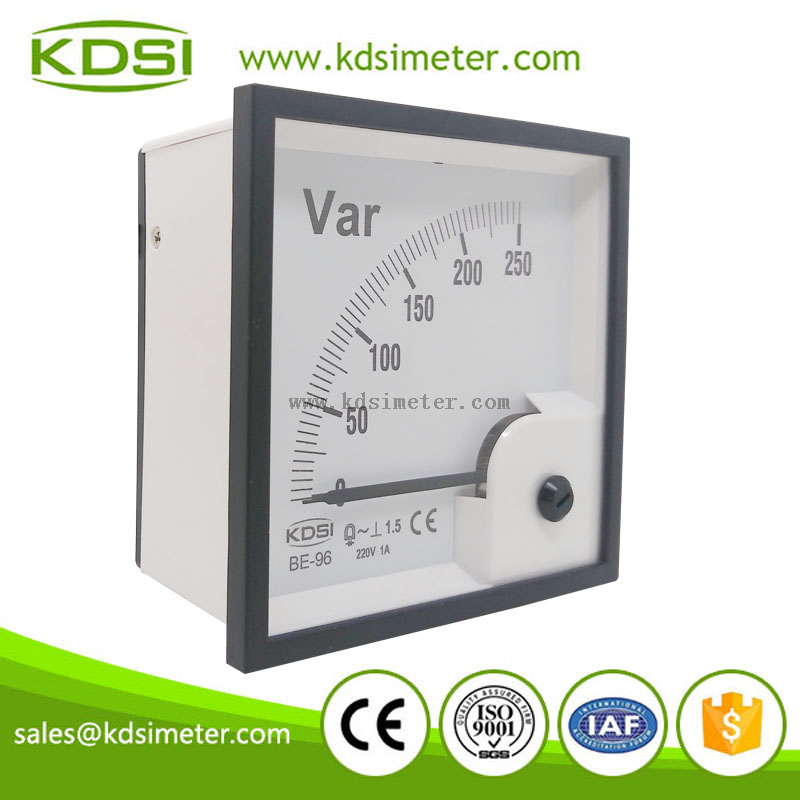

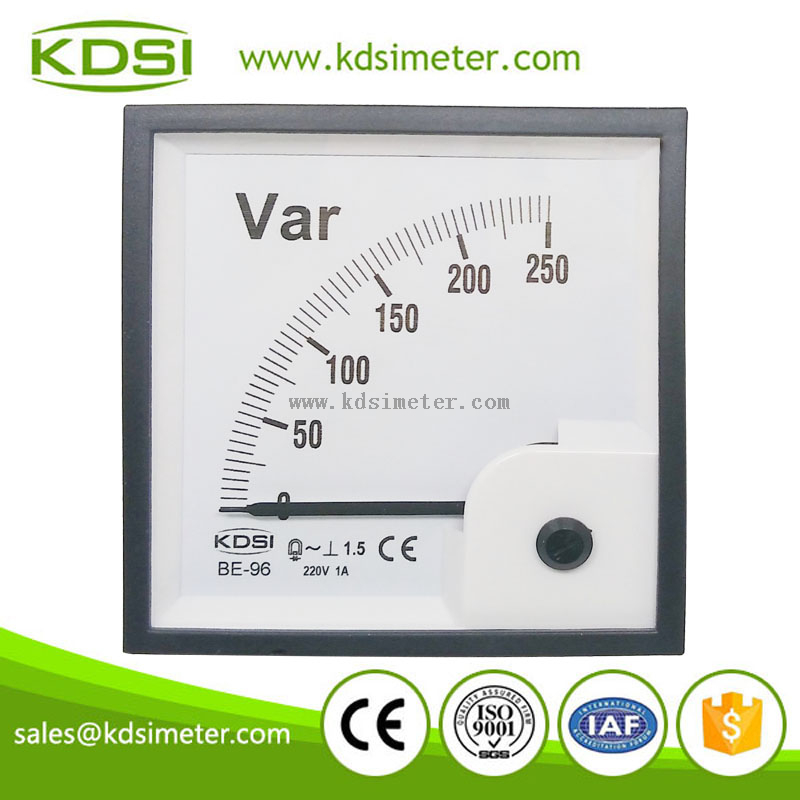

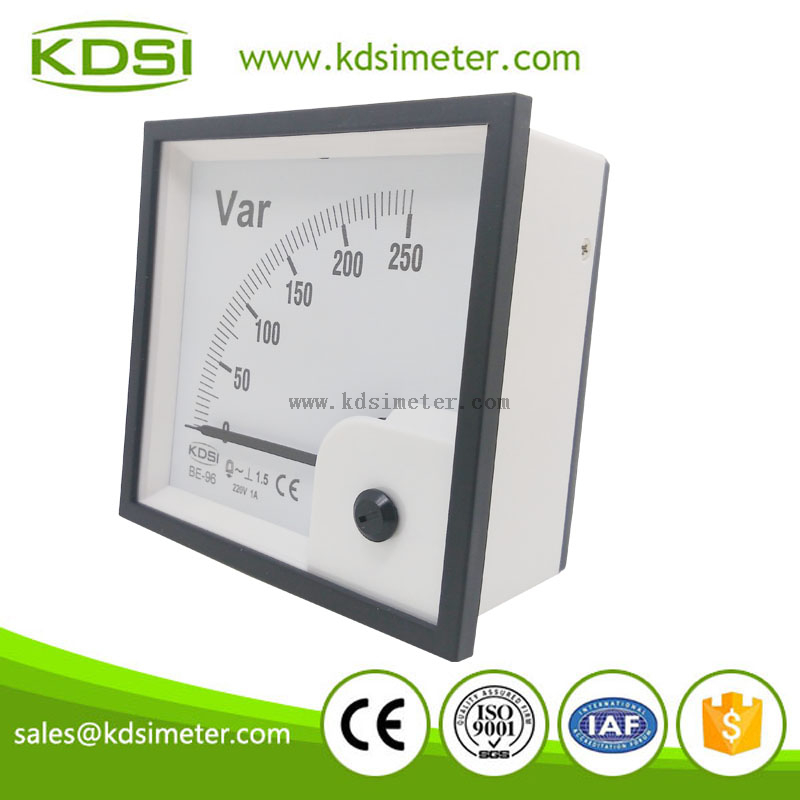

Power Meters for Active and Reactive Power | |||||||
Analog panel meter composed of a coremagnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5. | |||||||
Power Meter | Model | Voltage | Current | ||||
BE-96 BE-72 | | | |||||
Single phase system | | 100V 220V | 1A 5A | ||||
Three phase three wire 3P3W | | 100V 220V 380V 440V | 1A 5A | ||||
Three phase four wire 3P4W | | 220(380V) 230(400V) 240(415V) | 1A 5A |
Model | BE-96 | BE-72 | BE-48 | |
Front frame | mm | 96*96 | 72*72 | 48*48 |
Panelcutout | mm | 91*91 | 68*68 | 45*45 |
AC current | ||||
Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
A | 1A 5A 10A 15A 20A 25A 30A 40A 50A 60A | |||
Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
AC voltage | ||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
KV | Combined with an external PT **/100V **/110V **/120V |
Model | BE-96 | BE-72 | BE-48 | |
Front frame | mm | 96*96 | 72*72 | 48*48 |
Panelcutout | mm | 91*91 | 68*68 | 45*45 |
AC Current with Recifier | ||||
Ranges | mA | 50mA 100mA 150mA 200mA 400mA 500mA 600mA 800mA | ||
A | 1A 5A 10A 15A 20A 25A 30A | |||
Combined with an external Current Transformer | X/1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized | ||
X/5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized | |||
The common type is with 2times overload,1.0 1.5 2.0 3.0 5.0 6.0 times overload can be customized | ||||
AC Voltmeter with Recifier | ||||
Ranges | V | 10V 25V 40V 60V 100V 150V 250V 300V 450V 500V 600V | ||
KV | Combined with an external PT **/100V **/110V **/120V |
Model | BE-96 | BE-72 | BE-48 | ||||
Front frame | mm | 96*96 | 72*72 | 48*48 | |||
Panelcutout | mm | 91*91 | 68*68 | 45*45 | |||
DC current | |||||||
Ranges | uA | 50uA 100uA 150uA 250uA 800uA | |||||
mA | 4-20mA 1mA 10mA 500mA 800mA | ||||||
A | 1A 2A 3A 4A 5A 10A 15A 20A 25A 30A 40A 50A | ||||||
For connecting to external shunt | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A | |||||
DC Voltmeter | |||||||
Ranges | V | 0.5V 1V 10V 25V 50V 100V 250V 500V 600V | |||||
Frequency Meters/Frequency Meter with Reeds | |||||||
Measuring frequency ranging from 45-65Hz , Moving Coil movement. The accuracy class is 2.5. Voltage Fluctuation Allowance:+-20% Frequency meters with one row of horizontal reeds are used to measure frequencies ranging from 45Hz to 65Hz. | |||||||
Frequency Meter | Model | Measuring Rang | Voltage | ||||
Pointer | BE-96 BE-72 BE-48 | 45-55Hz 45-65Hz 55-65Hz | 100V,220V,380V,400V,440V | ||||
Vibrating | BE-96 BE-72 | 45-55Hz 47-53Hz | 100V,220V,380V,440V | ||||
Power Factor Meters | |||||||
Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the cos phase angle between current and voltage. COS¢ is displayed at the moving coil movement. The symbol letters are PF. The accuracy class is 2.5 | |||||||
Power Factor Meter | Model | Specification | Voltage Current | ||||
BE-96 BE-72 | 0.5lead-1.0-0.5lag | 110V 220V 380V 415V, 1A 5A | |||||
Power Meters for Active and Reactive Power | |||||||
Analog panel meter composed of a coremagnet moving coil movement and a built in or a separate power converter.Power meters are intended for measuring active and reactive power in single phase or three phase networks, with balanced or unbalanced load.The accuracy class is 1.5. | |||||||
Power Meter | Model | Voltage | Current | ||||
BE-96 BE-72 | | | |||||
Single phase system | | 100V 220V | 1A 5A | ||||
Three phase three wire 3P3W | | 100V 220V 380V 440V | 1A 5A | ||||
Three phase four wire 3P4W | | 220(380V) 230(400V) 240(415V) | 1A 5A |
No. | Test Item | Allowed value | Actual value | Conclusion |
1 | Appearanceinspection | Visual control | Meet the demand | |
2 | Insulation resistance | ≥5MΩ | Meet the demand | |
3 | Voltage test | Voltage 2KV | Meet the demand | |
4 | Response time | 4s | 1.5s | Meet the demand |
5 | Test of intrinsic error | ±1.5 | ±0.5 | Meet the demand |
6 | Test of tracking error | ±1.5 | ±0.6 | Meet the demand |
7 | Test of deviation from zero | ±0.75 | 0 | Meet the demand |
8 | Test of overshoot | ±20 | 0 | Meet the demand |
9 | Test of self-heating | ±1.5 | ±0.1 | Meet the demand |
10 | Test of variation due to distortion of a.c. measured quantity | ±1.5 | ±0.2 | Meet the demand |
11 | Test of variation due to position | ±0.75 | ±0.2 | Meet the demand |
12 | Test of variation due to frequency on a.c. measured quantity | ±1.5 | ±0.3 | Meet the demand |
13 | Test of variation due to a magnetic field of external origin | ±6 | ±0.2 | Meet the demand |
14 | Test of variation due to ambient temperature | ±1.5 | ±0.2 | Meet the demand |
15 | Test of variation due to ferromagnetic supports | ±1.5 | ±0.5 | Meet the demand |
16 | Short-time overload test | ±1.5 | ±0.5 | Meet the demand |
17 | Continuous overload test | ±1.5 | ±0.5 | Meet the demand |
18 | Vibration and shock test | ±1.5 | ±0.3 | Meet the demand |
19 | Temperature limits test | ±1.5 | ±0.2 | Meet the demand |
20 | Test of variation due to temperature | ±1.5 | ±0.2 | Meet the demand |
