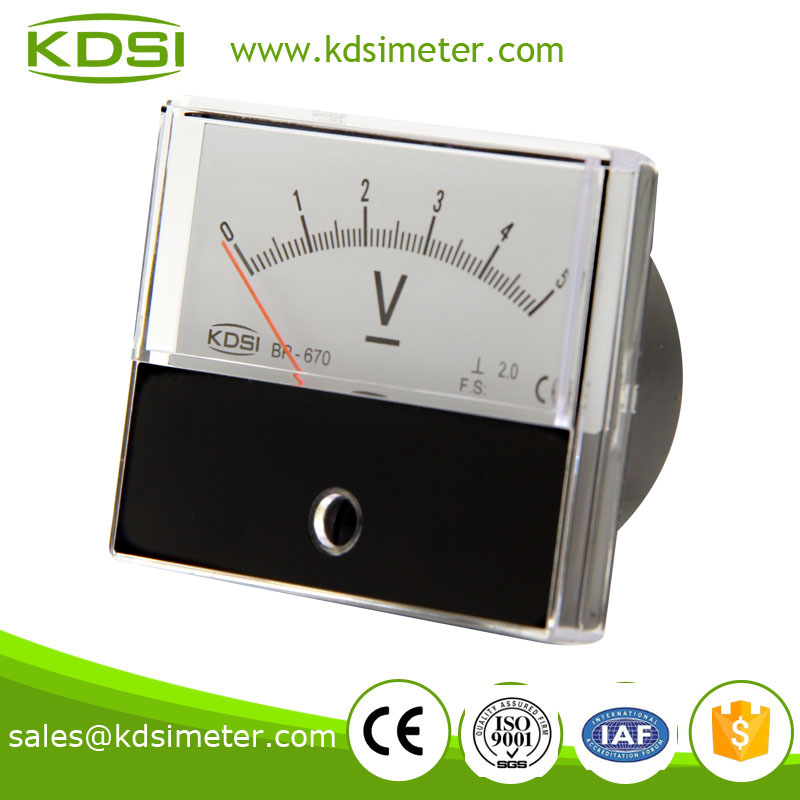

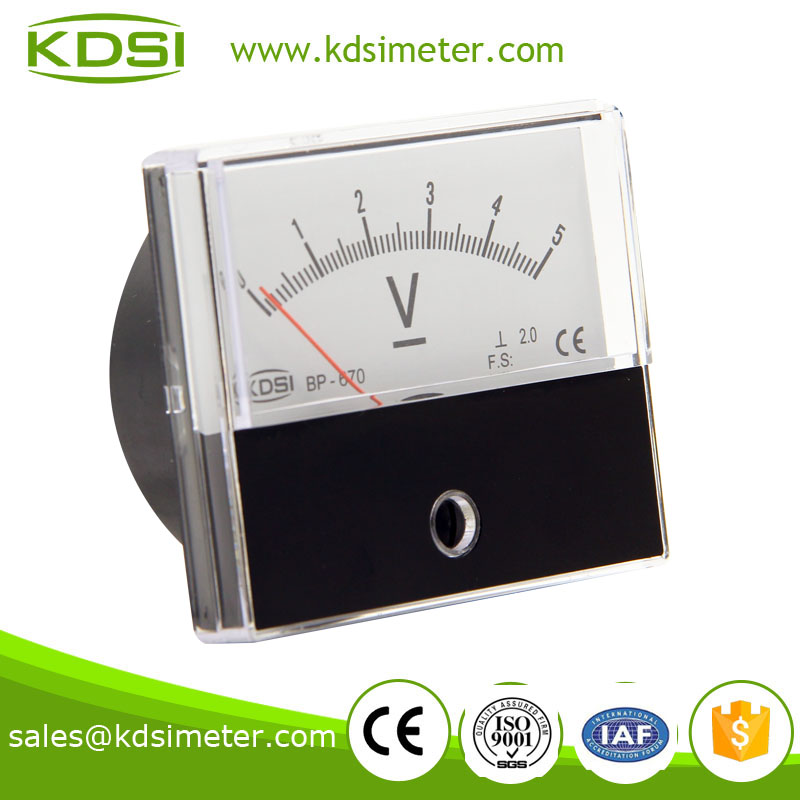

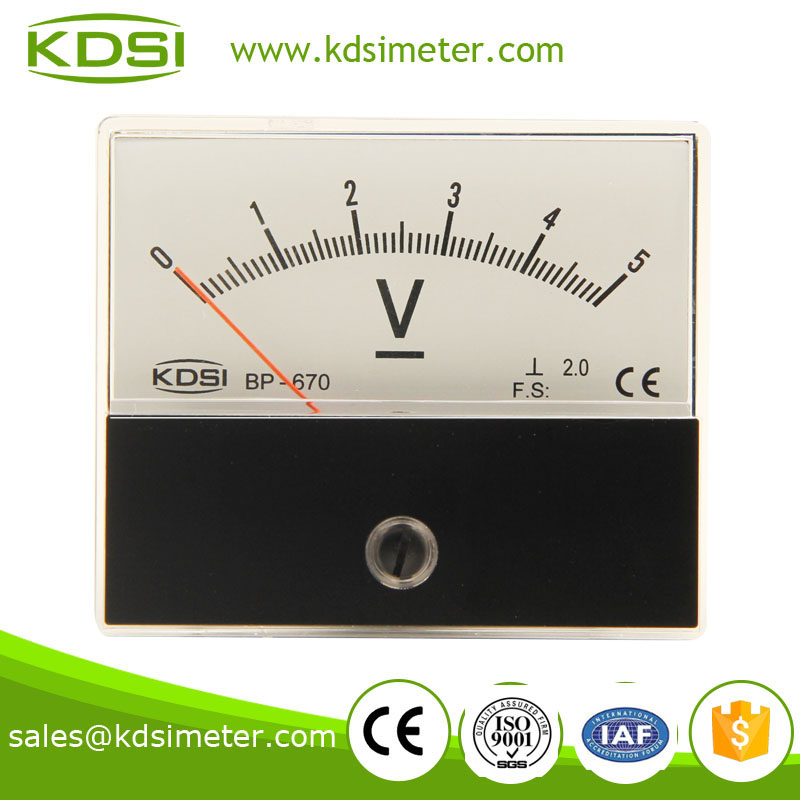

BP-670 DC Voltmeter DC5V taiwan technology panel meter

BP-670 60*70 DC Voltmeter CE approved
BP-670 DC Voltmeter DC5V
Measuring the DC voltage with linear scale ,moving coil movement.

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM
Code:
9030339000

BP-670 DC Voltmeter DC5V taiwan technology panel meter

1.1Product Description

Composition:
PC Front and Bakelite case, Four stud mounting,

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black case, white scale plate.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Model		BP-80	BP-60		BP-670	BP-45
Front frame	mm	*8080**	*6060**		*6070**	*5050**
Panel cutout	mm	64	52		53	45.5
AC current
Ranges	mA	100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external C.T.	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is no overload,1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC voltage
Ranges	V	10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V
	KV	Combined with an external PT /100V /110V **/120V
Model		BP-80	BP-60		BP-670	BP-45
Front frame	mm	*8080**	*6060**		*6070**	*5050**
Panel cutout	mm	64	52		53	45.5
DC Current
Ranges	uA	50uA 100uA 150uA 250uA 800uA
	mA	4-20mA 1mA 10mA 500mA 800mA
	A	1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt	50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC voltage
Ranges	V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V
Frequency Meters
Measuring frequency ranging from 45-65Hz , Moving Coil movement.Voltage Fluctuation Allowance:+20%
Frequency Meter		Model		Measuring Rang		Voltage
		BP-80,BP-670 BP-45		45-55Hz 45-65Hz 55-65Hz		100V,220V,300V

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Factory Direct Sales BP-670 DC12V 120kW Analog kW Panel DC Voltage Meter

Safe To Operate BP-670 DC150V 120kW Analog DC Voltage kW Panel Meter

Classical BP-670 DC75mV 250mV Double Input Analog DC Panel Mount Voltmeter

High Quality BP-670 DC75V Direct Analog DC Panel Small Voltmeter

KDSI Electronic Apparatus BP-670 AC600V Rectifier Analog AC Voltage Panel Meter

Safe To Operate BP-670 DC10V 3600rpm Analog Volt Panel Electronic RPM Meter

20 years Professional Manufacturer BP-670 DC10V 5000rpm Black Pointer Analog Volt Rpm Panel Meter

Easy Operation BP-670 AC20V 45SPM Analog AC Voltage Strokes Per Minute Panel Meter

20 years Professional Manufacturer BP-670 DC1200V direct analog dc panel voltmeter

High quality professional BP-670 DC150V direct analog dc panel mount voltmeter

20 Years Manufacturing Experience BP-670 DC1000V direct panel analog dc volt meter

Classical BP-670 AC25V 120SPM analog ac voltage panel strokes per minute meter

Portable precise BP-670 DC10V 60/120Hz analog dc voltage Hz panel meter

High quality BP-670 DC10V 80Hz analog dc voltage panel meter

China Supplier BP-670 DC50V panel analog dc voltmeter

Easy operation BP-670 DC10V 60Hz analog dc voltage Hz panel meter

Easy installation BP-670 DC10V 65SPM analog dc voltage strokes per minute meter

Easy operation BP-670 DC10V 50Hz analog voltage Hz panel meter

KDSI electronic apparatus BP-670 DC80mV 250mV double range analog panel dc millivolt meter

20 Years Manufacturing Experience BP-670 AC1500/150V analog ac panel voltmeter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
