BO-65 DC Ammeter DC75mV 150A taiwan technology dc amp panel meter

Share to:

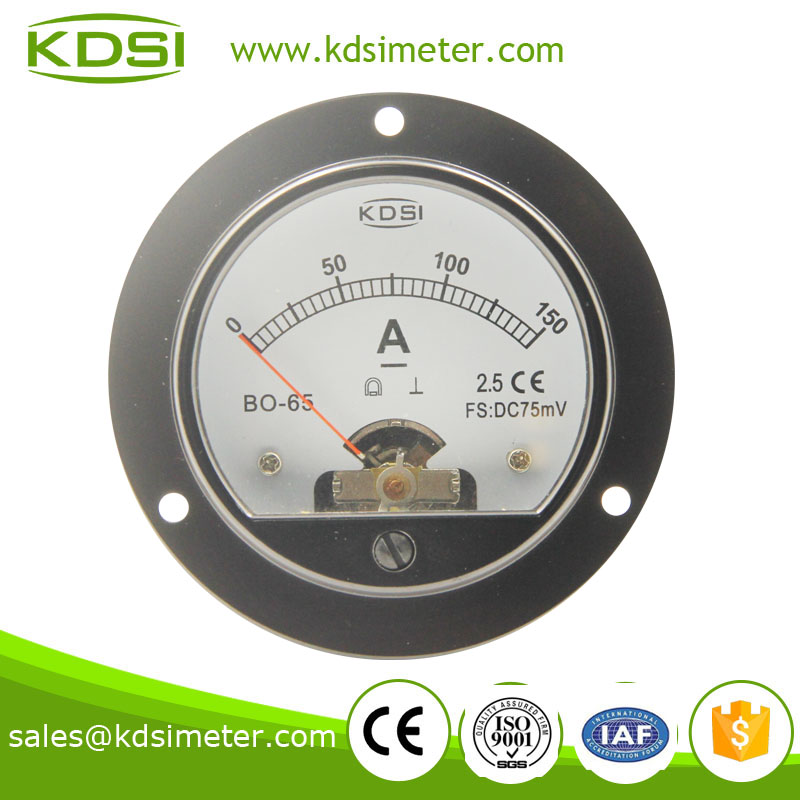

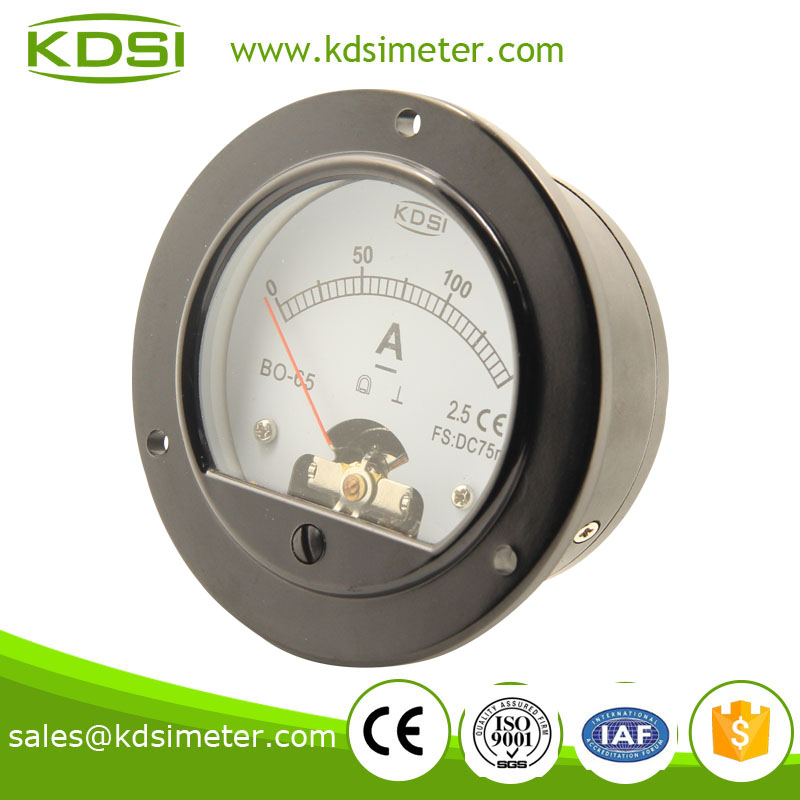

BO-65 DC Ammeter DC75mV 150A taiwan technology dc amp panel meter

Round type
BO-65 DC Ammeter DC75mV 150A
Measuring the DC current with linear scale.Moving coil movement.
The accuracy class is 1.5 or 2.5.

Quantity:



Inquire Add to Basket

Brand:
KDSI Also can do OEM
Code:
9030339000

BO-65 DC Ammeter DC75mV 150A taiwan technology dc amp panel meter

1.1Product Description

Composition:
Bakelite cover and case, three stud mounting,

Scale Plate :
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Color:
Black case and cover, Glass window ,white scale plate.

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of the meters.

Damping and Overshoot:
The overshoot is less than 15% when the pointer is at the 2/3 of the scale.
Damping and overshoot can be customized according to user’s requirements.

Accuracy:
Class1.5, 2.5;

Service condition:
-20~+50 degree;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Insulation Test:
The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency 50Hz.

Safety Precautions:
Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.

The advantages of Our products:
Interchangeable Dial.
Changing the scale plate without opening the meter.Under the same secondary current, the scale plate of AC ammeter can be Changed, no loss of accuracy.

Round type
AC Ammeter and Voltmeter
Moving Iron Movement
Model	BO-65
AC current
Ranges	mA	100mA 150mA 200mA 400mA 500mA 600mA 800mA
	A	1A 5A 10A 15A 20A 25A 30A 40A 50A 60A
Combined with an external C.T.	X/1A	10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 250/1A 300/1A 400/1A 500/1A 600/1A 800/1A 1000/1A 1200/1A 1500/1A 1600/1A 2000/1A 2500/1A 3000/1A More Ranges can be customized
	X/5A	10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 250/5A 300/5A 400/5A 500/5A 600/5A 800/5A 1000/5A 1200/5A 1500/5A 1600/5A 2000/5A 2500/5A 3000/5A More Ranges can be customized
The common type is no overload,1.5 2.0 3.0 5.0 6.0 times overload can be customized
AC voltage
Ranges	V	10V 25V 40V 50V 60V 100V 150V 250V 300V 450V 500V
	KV	Combined with an external PT /100V /110V **/120V
Round type
DC Ammeter and Voltmeter
Moving Coil Movement
Model	BO-65
DC Current
Ranges	uA	50uA 100uA 150uA 250uA 800uA
	mA	4-20mA 1mA 10mA 500mA 800mA
	A	1A 2A 3A 5A 10A 15A 20A 25A 30A 40A 50A
For connecting to external shunt	50mV 60mV 75mV	10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
DC Voltmeter
Ranges	V	0.5V 1V 10V 25V 50V 100V 250V 500V 600V

1.2Dimensioned drawing

1.3Product Application

1.4 Product Packaging

Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.

Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
Specially thickened quality packaging cartons, anti-moisture and anti-shock.

Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.5 Professional Storage

Neat warehouse and clean production line

1.6 Our Customer

Easy Operation BO-65 AC15A Rectifier Analog Amber Backlighting AC Amp Panel Meter

Classical BO-65 AC1A Rectifier AC Analog Backlighting Panel VU Amp Meter

Classical BO-65 DC50uA DC Round Analog Panel Micro Ammeter

New Hot Sale Smart BO-65 DC+-75mV +-50A DC Round Analog Panel Meter

Original Manufacturer High Quality BO-65 DC75mV 50A DC Analog Round Panel Price OF Ammeters

Classical BO-65 DC50mV 75A DC Analog Round Panel Mount Ammeter

High quality BO-65 DC+-1mA dc analog round panel mount ammeter

Safe to operate BO-65 DC75mV 300A dc analog round panel amp meter

Safe to operate BO-65 DC30uA 25/50/100 WATTS dc analog round panel mount meter

Easy operation BO-65 AC200/5A analog backlighting panel VU amp meter

Hot sales BO-65 DC300mA dc analog round panel mount ammeter

New Hot Sale Smart BO-65 DC1mA analog golden backlighting panel VU meter

China Supplier BO-65 DC50mV 200A dc analog panel round ammeter

Easy operation BO-65 AC150/5A round ac panel analog ammeter

20 years Professional Manufacturer BO-65 AC50/5A ac analog round panel current meter

Safe to operate BO-65 DC60mV 400A dc round analog panel meter

Classical BO-65 AC5A direct ac analog round panel amp meter

Hot sales BO-65 AC15A direct round type ac analog panel amp meter

Classical BO-65 DC60mV 600A round analog panel meter

China Supplier BO-65 DC50mV 30A round type analog panel led backlight amp meter

No.	Test Item	Allowed value	Actual value	Conclusion
1	Appearanceinspection	Visual control		Meet the demand
2	Insulation resistance	≥5MΩ		Meet the demand
3	Voltage test	Voltage 2KV		Meet the demand
4	Response time	4s	1.5s	Meet the demand
5	Test of intrinsic error	±1.5	±0.5	Meet the demand
6	Test of tracking error	±1.5	±0.6	Meet the demand
7	Test of deviation from zero	±0.75	0	Meet the demand
8	Test of overshoot	±20	0	Meet the demand
9	Test of self-heating	±1.5	±0.1	Meet the demand
10	Test of variation due to distortion of a.c. measured quantity	±1.5	±0.2	Meet the demand
11	Test of variation due to position	±0.75	±0.2	Meet the demand
12	Test of variation due to frequency on a.c. measured quantity	±1.5	±0.3	Meet the demand
13	Test of variation due to a magnetic field of external origin	±6	±0.2	Meet the demand
14	Test of variation due to ambient temperature	±1.5	±0.2	Meet the demand
15	Test of variation due to ferromagnetic supports	±1.5	±0.5	Meet the demand
16	Short-time overload test	±1.5	±0.5	Meet the demand
17	Continuous overload test	±1.5	±0.5	Meet the demand
18	Vibration and shock test	±1.5	±0.3	Meet the demand
19	Temperature limits test	±1.5	±0.2	Meet the demand
20	Test of variation due to temperature	±1.5	±0.2	Meet the demand
