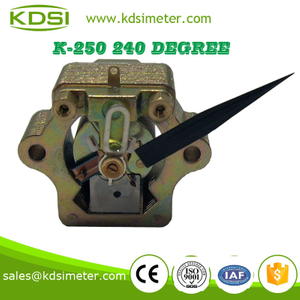

Ac meter movement for moving iron meter

1.1Product Description

Pointer:
Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.

Scale Plate:
The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.
Scale plate with special requirements are available upon request.
Such as color, scale with lighting functions and PVC noctilucence are available upon request.

Anti-static:
All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.

Voltage Drop(By External Shunt):
The voltage drop to 50mV,60mV,75mV,100 mV,150 mV by externally attached shunt for DC ammeters are available. The resistance for the connection wire (between meter and shunt ) should between 15-25mΩ to assure the accuracy of the meter.
Accuracy:
Class 2.5;

Operating position:
Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.

Service condition:
-20~+50 degree;


1.2Product Application



1.3 Product Packaging

          Both products for overseas and domestic sales have the same high quality and are same carefully packaged. Perfection is our best interpretation to professionalism.



       Anti-moisture, anti-extrusion, anti-shock and anti-exposure.
       Specially thickened quality packaging cartons, anti-moisture and anti-shock.

       Professional bubble bags inside to prevent vibration during transportation.

Our meters are carefully packed layer by layer to ensure they can withstand long-distance transit to arrive at customers

1.4 Professional Storage

  Neat warehouse and clean production line

1.5 Our Customer
